Part Number

Search

364921

Description
DIN 41612 Connectors 48P 4MM VERT MALE TYPE R/2 BCKPLN B-B
CategoryThe connector
File Size45KB,2 Pages
ManufacturerERNI Electronics
Environmental Compliance
Download Datasheet Parametric View All

364921 Online Shopping

Suppliers Part Number Price MOQ In stock
364921 - - View Buy Now

364921 Overview

DIN 41612 Connectors 48P 4MM VERT MALE TYPE R/2 BCKPLN B-B

364921 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerERNI Electronics
Product CategoryDIN 41612 Connectors
RoHSDetails
ProductHeaders
Number of Positions48 Position
Number of Rows3 Row
Pitch2.54 mm
TypeR/2
Termination StyleSolder Pin
Mounting AngleVertical
Current Rating2 A
Contact PlatingGold
Contact MaterialCopper Alloy
PackagingTray
Housing MaterialPolyamide (PA)
Contact GenderMale
Insulation Resistance10000 MOhms
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 55 C
Factory Pack Quantity60
Tail Length4 mm
Unit Weight0.102294 oz
47,4
-0,2
Anforderungsstufe
Datum
class
6,4
-0,1
max.11,6
RC 2
date
Stecklänge
mating length
2,9
-0,3
5,2
-0,1
a b c
Stecklänge /
mating length
4
±0,2
2,54
15x2,54=38,1
max.55
44,6
2,8
+0,1
+0,2
0,8
±0,1
0,6
2,54
4,8
+0,2
L S E
2x2,54=5,08
1
a1
E =
early mate, late break
/ voreilend
S = standard
L =
late mate, early break
/ nacheilend
a16
max.11,1
6
8,7
+0,1
2,5
-0,2
c16
50
c1
Anforderungsstufe 2 = 400 Steckzyklen / performance class 2 = 400 mating cycles
Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2
Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2
Bedruckung siehe Zeichnung 294905
Isolierwerkstoff
/ housing material : PBT GF 30
Bauart 4 / t
ype 4
Bestückungsplan /
contact layout
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
S S S S S S S S S S S S S S S S
S S S S S S S S S S S S S S S S
S S S S S S S S S S S S S S S S
a
b
c
Marking see drawing 294905
Leiterplatten-Lochbild /
PCB drillhole pattern
2,8
+0,1
1
±0,1
0,05
Alle Löcher
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
0,3
all holes
Information:
Tolerances
All Dimensions
in mm
Scale
2:1
16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
2x 2,54 =5,08
2,54
15x 2,54 =38,1
50
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
A
Index
01.04.2009
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.

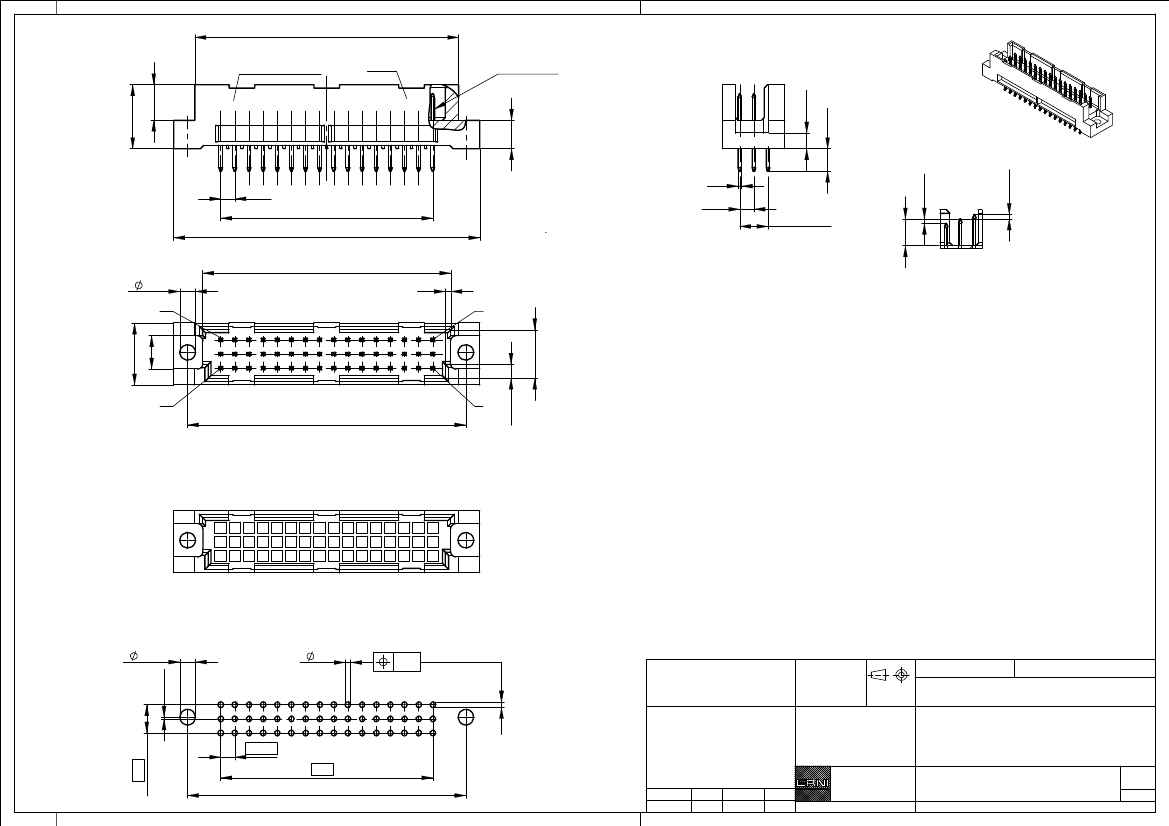

Messerleiste R/2, 48 Löt
Male Connector R/2, 48 Löt
www.ERNI.com
Class
364921
STVR/2
0,8
±0,1
ERNI
XXXXXXX
I
