1N5807USS datasheet, PDF - EEWORLD Datasheet

1N5807USS: DescriptionRectifier Diode, 1 Phase, 1 Element, 3A, Silicon,; CategoryDiscrete semiconductor diode; File Size50KB，1 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

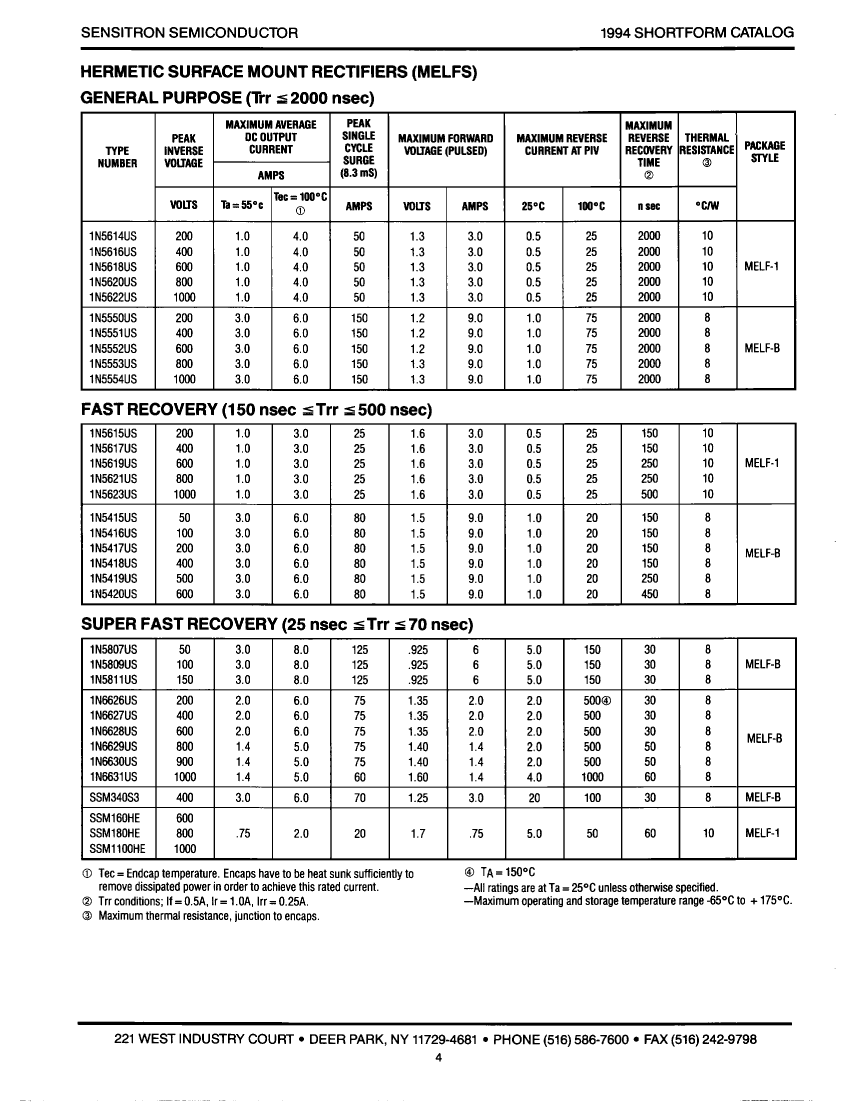

Download Datasheet Parametric Compare View All

1N5807USS Overview

Rectifier Diode, 1 Phase, 1 Element, 3A, Silicon,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	O-LELF-R2
Reach Compliance Code	compli
ECCN code	EAR99
application	SUPER FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.925 V
JESD-30 code	O-LELF-R2
Maximum non-repetitive peak forward current	125 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	3 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum reverse current	5 µA
Maximum reverse recovery time	0.03 µs
surface mount	YES
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	1N5807USS	PRNF1FNC91R0	RGC1/16T2887K1%A	04022C104J4U2A	04022C104K4T2A	04022C104K4U2A	SSM100HES
Description	Rectifier Diode, 1 Phase, 1 Element, 3A, Silicon,	Fixed Resistor, Metal Film, 1W, 91ohm, 350V, 1% +/-Tol, -50,50ppm/Cel,	Fixed Resistor, Metal Glaze/thick Film, 0.1W, 887000ohm, 50V, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0603, CHIP, ROHS COMPLIANT	General Specifications	General Specifications	General Specifications	Rectifier Diode, 1 Element, 0.75A, Silicon
Reach Compliance Code	compli	compliant	compliant	-	-	-	compliant
ECCN code	EAR99	EAR99	EAR99	-	-	-	EAR99
Number of terminals	2	2	2	-	-	-	2
Maximum operating temperature	175 °C	155 °C	150 °C	-	-	-	175 °C
Minimum operating temperature	-65 °C	-55 °C	-55 °C	-	-	-	-65 °C
Package shape	ROUND	CYLINDRICAL PACKAGE	RECTANGULAR PACKAGE	-	-	-	ROUND
