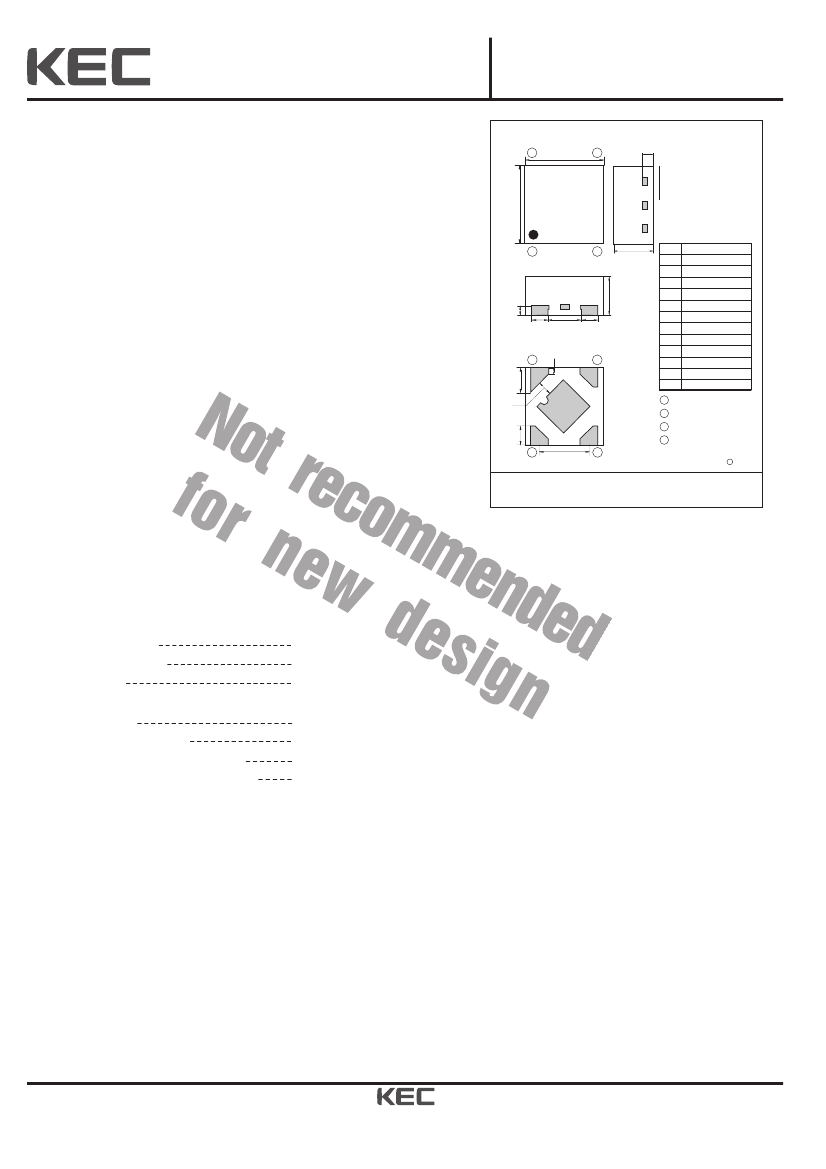

SEMICONDUCTOR
TECHNICAL DATA
150mA CMOS High Performance LDO Regulator
KIC3212MF12~33
Analog CMOS Integrated Circuits
<Top View>
4
A
3
L
The KIC3212series Low Dropout Linear Regulator is ideally suited
for portable applications. It offers 1% initial accuracy,
extremely-low dropout voltage(210mV at 150mA, 3.3V Output Type),
low ground current (typically 36uA) and ultra small package(UDFN1010-4).
Designed specifically for handheld and battery-powered devices,
the KIC3212series provides a TTL-logic-compatible ON/OFF control pin.
When disabled, power consumption drops nearly to zero.
The KIC3212series also works with low-ESR ceramic capacitors,
L
C
B
1
2
C
<Side View>
reducing the amount of board space necessary for power applications,
critical in handheld wireless devices.
The Line transient response and load transient response of the
KIC3212series are very excellent, thus ICs are very suitable for
the power supply for hand-held communication equipment.
J
F
D
E
D
<Bottom View>
1
2
K
DIM MILLIMETERS
A
1.00
1.00
B
C
0.50
D
0.20
E
0.43
F
0.29
G
0.24
H
0.64
I
0.50
J
0.195
K
0.086
L
0.125
1
V
OUT
I
2
GND
3
V
EN
4
V
IN
G
Applications
・Cellular
phones,Smart Phones, PDA
・Battery-powered
equipment
・Laptop,
notebook and palmtop computers
・Consumer/personal
electronics
4
H
3
*Center tab is common to
2
(GND)
UDFN1010-4
Features
・Input
voltage range
・High
output accuracy
・Low
dropout
・Stability
with ceramic output capacitors
・Supply
Current
・Excellent
Load regulation
・Built-in
Fold Back Protection Circuit
・Stability
with ceramic output capacitors
・TTL-Logic-compatible
ON/OFF control
Typ. 36μ
A
Typ. 10mV
Typ. 40mA@Short mode
C
IN
=C
OUT
=0.47㎌
2.0V to 5.5V
1.0% accuracy
210mV@150mA (3.3V Output type)
2012. 1. 5
Revision No : 0
1/7
KIC3212MF12~33

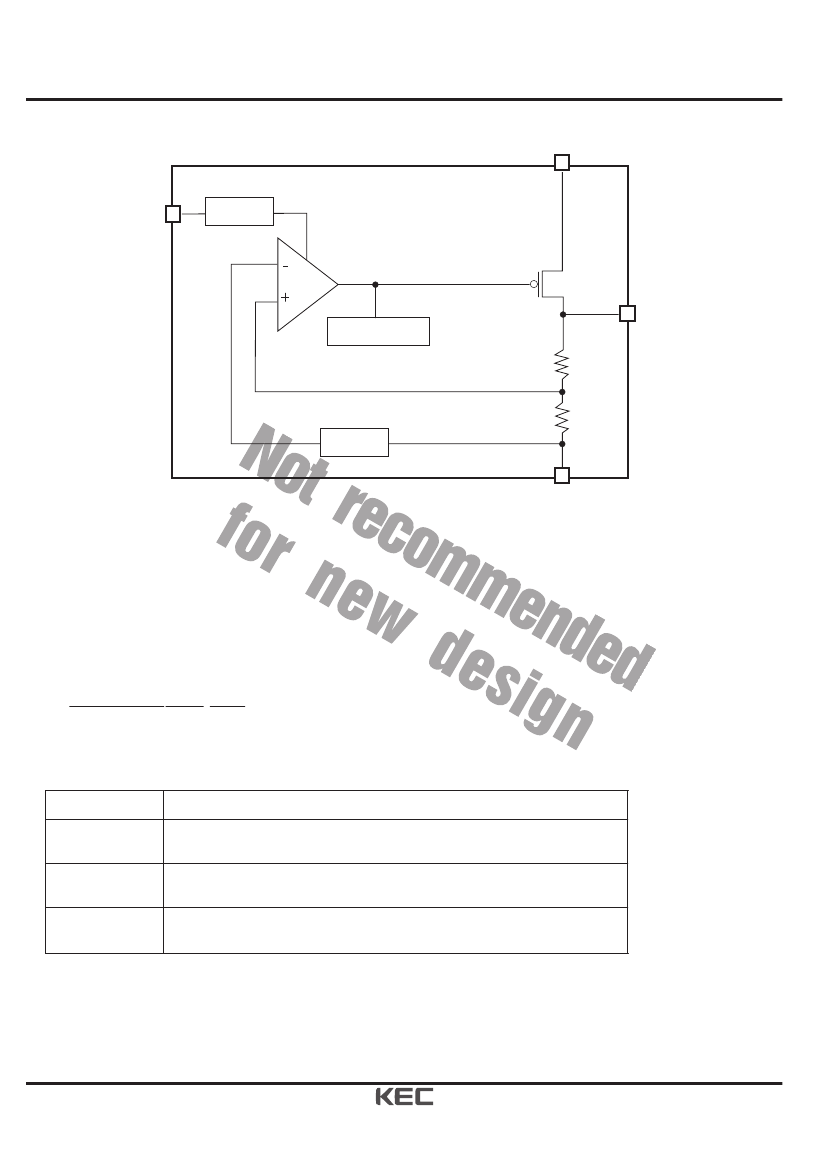

Block Diagram
V
IN
V
EN
ON/OFF
Control
V
REF
PWTR
Error Amp
V
OUT
Fold - back Current
Limit Block
RA
RB
Reference
Voltage
GND
SECLECTION GUIDE
The output voltage, package type for the ICs can be selected at the user s request.
The selection can be made with designating the part number as shown below;
KIC3212MF XX
←
Part Number
a
b
c
Code
a
Item name
KIC3212 : 150mA CMOS LDO
Designation of Package Type :
MF : UDFN1010-4
Contents
b
c
Setting Output Voltage (V
OUT
) :
Stepwise setting with a step of 0.1V in the range of 1.2V to 3.3V is possible.
2012. 1. 5
Revision No : 0
2/7
KIC3212MF12~33

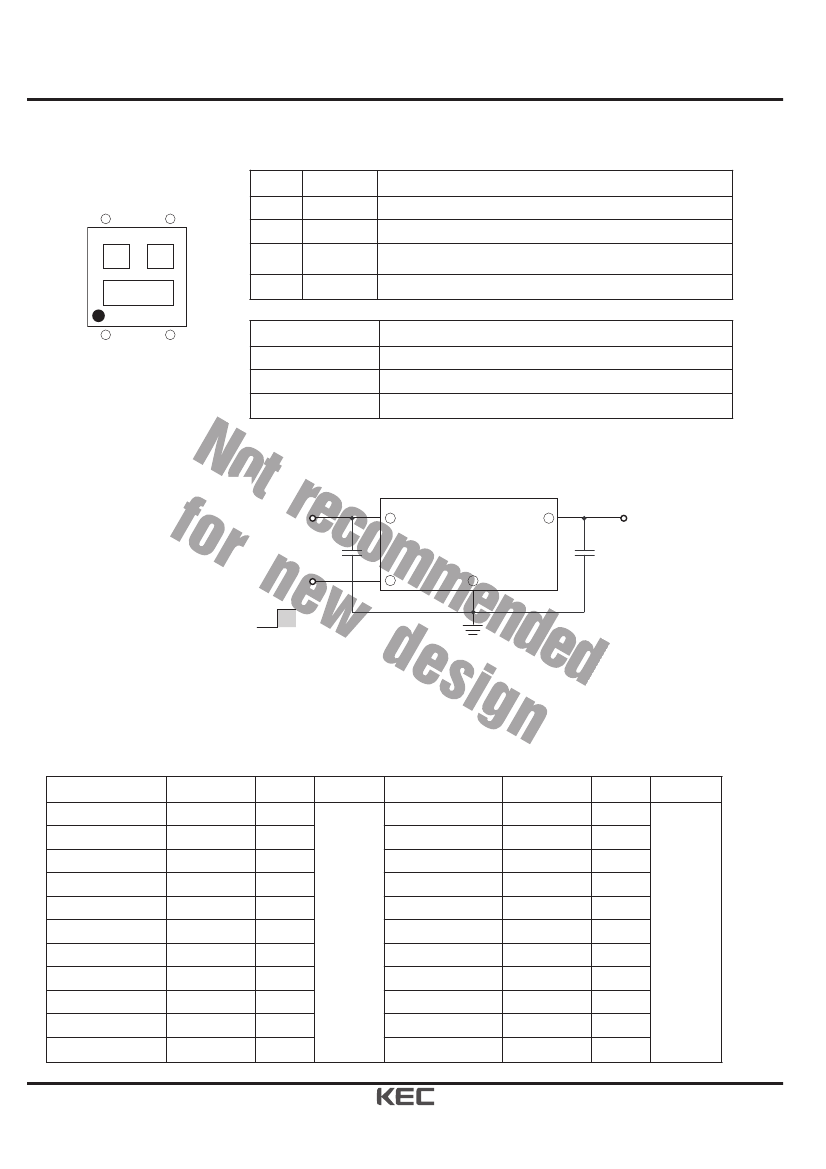

PIN DESCRIPTIONS
UDFN1010-4 PKG
3
4
Pin No.
1
2
Pin name
V
OUT
GND
V
EN
V
IN
Regulator Output
Ground Pin
Pin Description
A
C
B
3
4
Output OFF/ON (Input) : CMOS compatible input.
Active Low : Output OFF, Active High : Output ON.
Input Pin.
1
2
Code
A
B
C
Device code
Series
Lot No.
Contents
Application Circuit
V
IN
C
IN
=0.47µF
Ceramic
4
1
V
OUT
C
OUT
=0.47µF
Ceramic
KIC3212 Series
3
2
V
EN
Active Low : Output OFF
Active High : Output ON
GND
Stability with ceramic output capacitors
C
IN
= C
OUT
= 0.47㎌
Line up
Item
KIC3212MF12
KIC3212MF13
KIC3212MF14
KIC3212MF15
KIC3212MF16
KIC3212MF17
KIC3212MF18
KIC3212MF19
KIC3212MF20
KIC3212MF21
KIC3212MF22
Output Voltage
1.2V
1.3V
1.4V
1.5V
1.6V
1.7V
1.8V
1.9V
2.0V
2.1V
2.2V
Marking
8A
8B
8C
8D
8E
8F
8G
8H
8I
8J
8K
UDFN1010-4
Package
Item
KIC3212MF23
KIC3212MF24
KIC3212MF25
KIC3212MF26
KIC3212MF27
KIC3212MF28
KIC3212MF29
KIC3212MF30
KIC3212MF31
KIC3212MF32
KIC3212MF33
Output Voltage
2.3V
2.4V
2.5V
2.6V
2.7V
2.8V
2.9V
3.0V
3.1V
3.2V
3.3V
Marking
8L
8M
8N
8P
8Q
8R
8S
8T
8V
8V
8W
UDFN1010-4
Package
2012. 1. 5
Revision No : 0
3/7
KIC3212MF12~33
Absolute Maximum Ratings
Characteristics
Input Voltage
Output Current
Power Dissipation (Note)
Operating Temperature
Storage Temperature
Symbol
V
IN
I
OUT
P
D
T
OPR
T
STG
Rating
5.5
150
400
-40~85
-55~125
Units
V
mA
mW
℃
℃
Note) Package Mounted on FR-4 PCB board (40㎜×40㎜×1.6㎜)
Electrical Characteristics
(
V
IN
= Set V
OUT
+ 1V for V
OUT
options greater than 1.5V, V
IN
=2.5V for V
OUT
≤
1.5V
I
OUT
=1mA, V
EN
=V
IN,
T
A
=25℃, C
IN
=0.47μ C
OUT
=0.47μ unless otherwise stated)
F,
F,
Symbol
V
IN
I
OUT
V
OUT
∆V
OUT
/
∆V
IN
∆V
OUT
/
∆I
OUT
Parameter
Input Voltage
Output Current
Output Voltage
Line Regulation
Load Regulation
Conditions
-
-
V
OUT
≥
1.5V
V
OUT
≤
1.5V
Set V
OUT
+ 0.5V
≤
V
IN
≤
5.5V
1mA
≤
I
OUT
≤
150mA
1.2V
≤
V
OUT
≤
1.5V
1.5V
≤
V
OUT
≤
1.7V
Min
2.0
150
x 0.99
-20
-
-
-
-
-
-
-
-
-
-
-
-
Typ
-
-
-
-
0.15
10
0.50
0.38
0.34
0.28
0.22
0.21
36
0.1
±200
40
-
-
48
Max
5.5
-
x 1.01
+20
0.4
30
0.62
0.47
0.42
0.36
0.30
0.27
50
1.0
-
-
5.5
0.3
-
Units
V
mA
V
mV
%/V
mV
V
V
V
V
V
V
㎂
㎂
ppm /
℃
mA
V
V
dB
V
D
Dropout Voltage
1.7V
≤
V
OUT
≤
2.0V
2.0V
≤
V
OUT
≤
2.5V
2.5V
≤
V
OUT
≤
2.8V
2.8V
≤
V
OUT
≤
3.3V
I
GND
I
Q
∆V
OUT
/
∆T
I
SC
V
EN(ON)
V
EN(OFF)
RR
Ground Pin Current
Quiescent Current
Output VoltageTemperature Coefficient
Short Current Limit
Output Control Voltage (ON-State)
Output Control Voltage (OFF-State)
Ripple Rejection
I
OUT
= 0mA
V
EN
= 0V(Shutdown)
-40℃
≤
T
OPR
≤
85℃
V
OUT
= 0V
-
-
f=1kHz, Ripple 0.2Vp-p
V
IN
=Set V
OUT
+1V, I
OUT
=30mA
(In case that V
OUT
≤1.5V,
V
IN
=2.5V)
1.1
0
-
2012. 1. 5
Revision No : 0
4/7
