39930-0506 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 39930-0506

39930-0506: DescriptionPluggable Terminal Blocks PLUG FWE 3.81MM EMAT FWE 3.81MM EMATE-E 6; CategoryThe connector terminals; File Size41KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39930-0506 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39930-0506	-	-	View	Buy Now

39930-0506 Overview

Pluggable Terminal Blocks PLUG FWE 3.81MM EMAT FWE 3.81MM EMATE-E 6

39930-0506 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	POLYAMIDE 6.6, 94V-0
Fastening method	SCREW
Manufacturer's serial number	39930
Installation type	CABLE
Number of layers	1
Rows	2
Number of channels	6
Rated current	12 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	2.08 mm2
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 12/13/2017

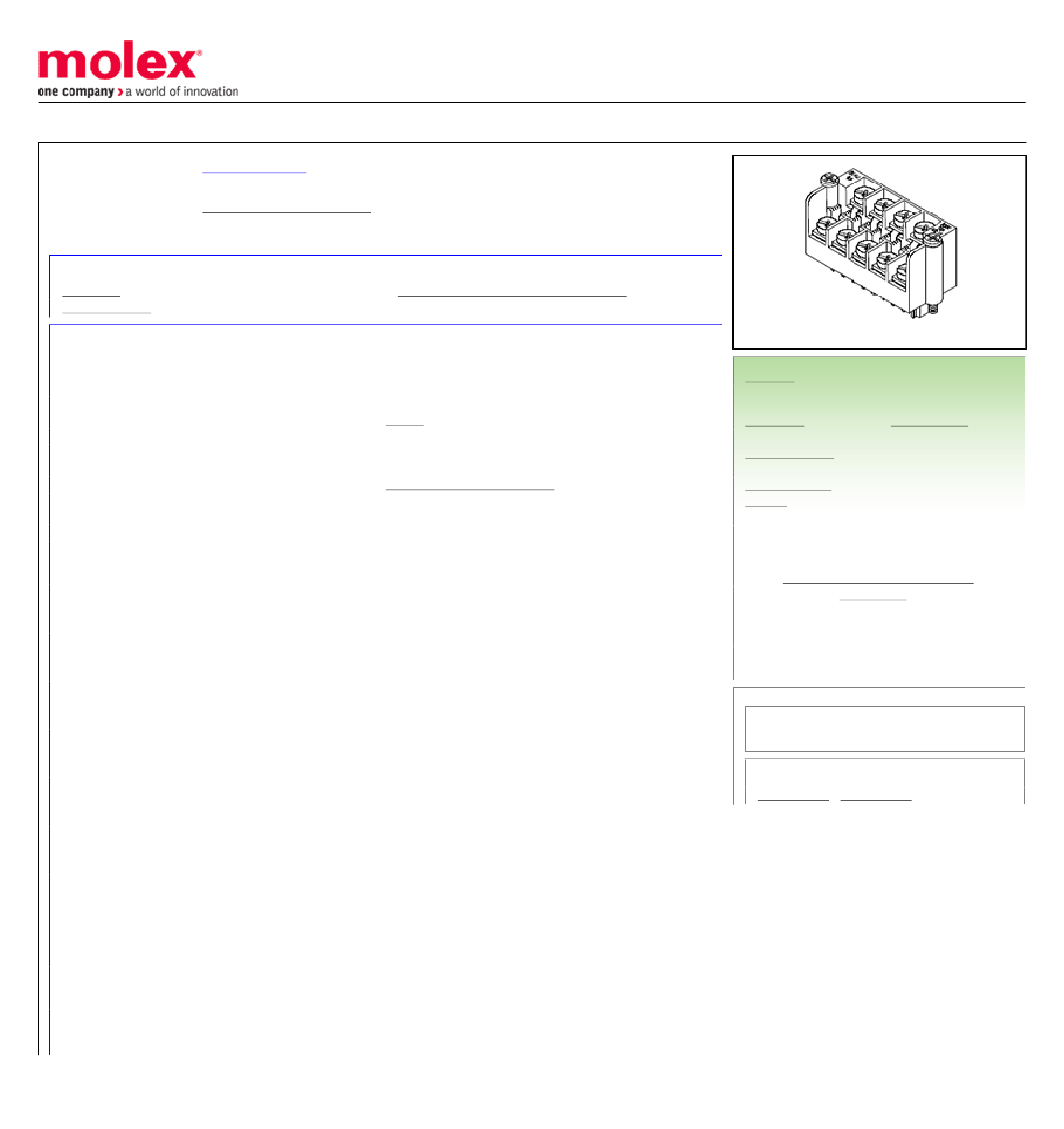

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0399300506

Active

Eurostyle™ Terminal Blocks

3.81mm Pitch Beau EuroMate Pluggable PCB Terminal Block, Dual Level, 270° Wire

Entry, with Retention Screws, 6 Circuits

Documents:

3D Model

Drawing (PDF)

Agency Certification

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Color - Resin

Entry Angle

Flammability

Lock to Mating Part

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PCB Retention

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire Size AWG

Wire Size mm²

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Engineering Number

Reference - Drawing Numbers

Sales Drawing

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E48521

Terminal Blocks

39930

N/A

with retention screws

Plug

Eurostyle™ Terminal Blocks

EuroMate Pluggable

Euro Block

800756371405

Black

Horizontal

94V-0

Yes

Tin

Nylon

Vertical

N/A

3.81mm

Yes

Tri-Barrier

105°C

Screw or Lug

14, 16, 18, 20, 22

0.50-1.50

12.0A

300V

936906

SD-39930-002

EU ELV

Not Relevant

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Not Reviewed

Search Parts in this Series

39930 Series

Mates With

39515-1006 , 39516-1006
