BAS40TW /DW-04
/DW-05 /DW-06 /BRW
SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS
Please click here to visit our online spice models database.

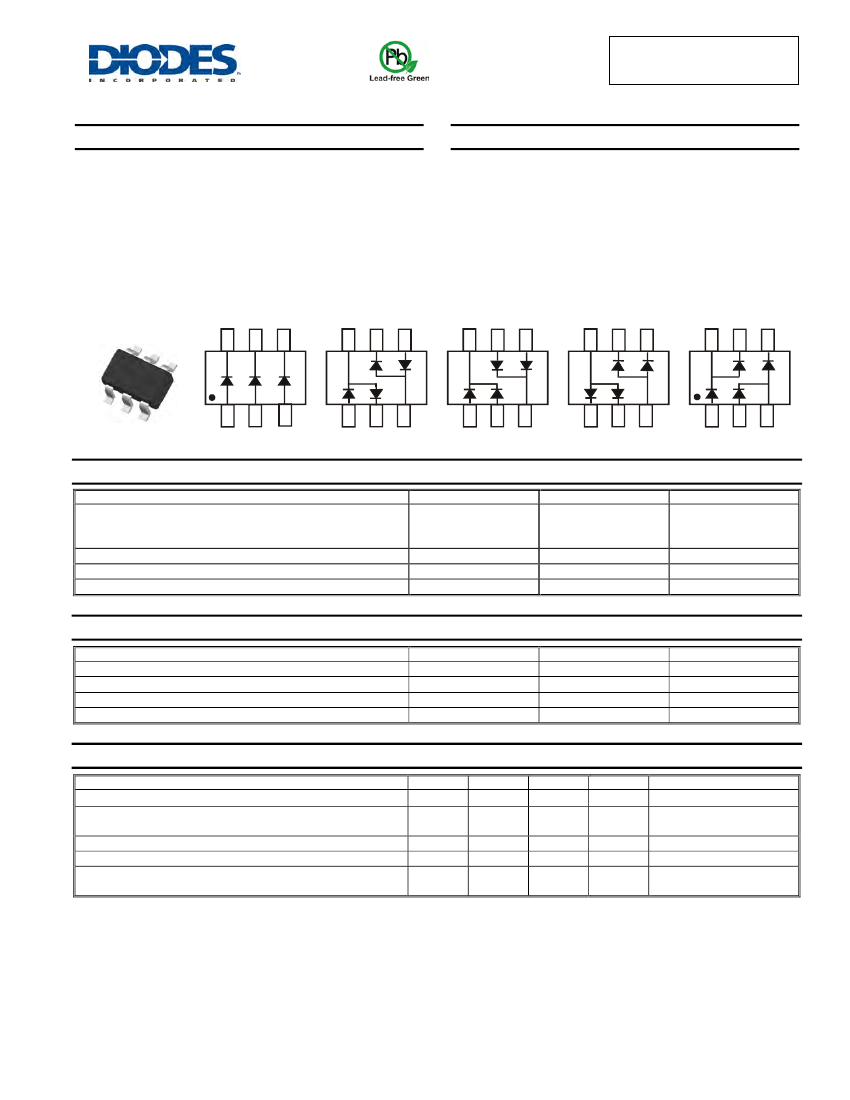

Features
•
•
•
•
•
•
•
Low Forward Voltage Drop
Fast Switching
Ultra-Small Surface Mount Package
PN Junction Guard Ring for Transient and ESD Protection
Lead Free/RoHS Compliant (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
"Green" Device (Notes 4 and 5)
Mechanical Data
•
•
•
•
•
•
•
•
•
A
2
C
1
Case: SOT-363
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
Polarity: See Diagrams Below
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: 0.006 grams (approximate)
A
2
A
2
A
1
C
2
C
2
AC
1
C
1
C
2
C
3
AC
1
C
2
C
1
C
2
A
1
A
2
A
3
A
1
C
1
AC
2
A
1
A
1
C
2
C
1
C
1
A
2
A
1
A
2
AC
2
Top View
BAS40TW
BAS40DW-04
BAS40DW-05
BAS40DW-06
BAS40BRW
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
FSM
Value
40
28
200
600
Unit
V
V
mA
mA
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 1)
Non-Repetitive Peak Forward Surge Current
@ t < 1.0s
Thermal Characteristics
Characteristic
Power Dissipation (Note 1)
Thermal Resistance Junction to Ambient Air (Note 1)
Operating Temperature Range
Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
T
STG
Value
200
625
-55 to +125
-65 to +125
Unit
mW
°C/W
°C
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 2)
Forward Voltage
Reverse Current (Note 2)
Total Capacitance
Reverse Recovery Time
Notes:
1.
2.
3.
4.
5.
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
I
R
C
T
t
rr
Min
40
⎯
⎯
⎯
⎯
Max
⎯
380
1000
200
5.0
5.0
Unit
V
mV
mV
nA
pF
ns
Test Condition
I
R
= 10μA
I
F
= 1.0mA, t
p
< 300μs
I
F
= 40mA, t
p
< 300μs
V
R
= 30V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Short duration pulse test used to minimize self-heating effect.
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants
BAS40TW /DW-04
/DW-05 /DW-06 /BRW
Document number: DS30156 Rev. 13 - 2
1 of 4
www.diodes.com
July 2008
© Diodes Incorporated
BAS40TW /DW-04
/DW-05 /DW-06 /BRW
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1
10,000
1,000
0.1
100
0.01
10
0.001
1
0.0001
0.2
0.4
0.6
0.8
1.0
0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

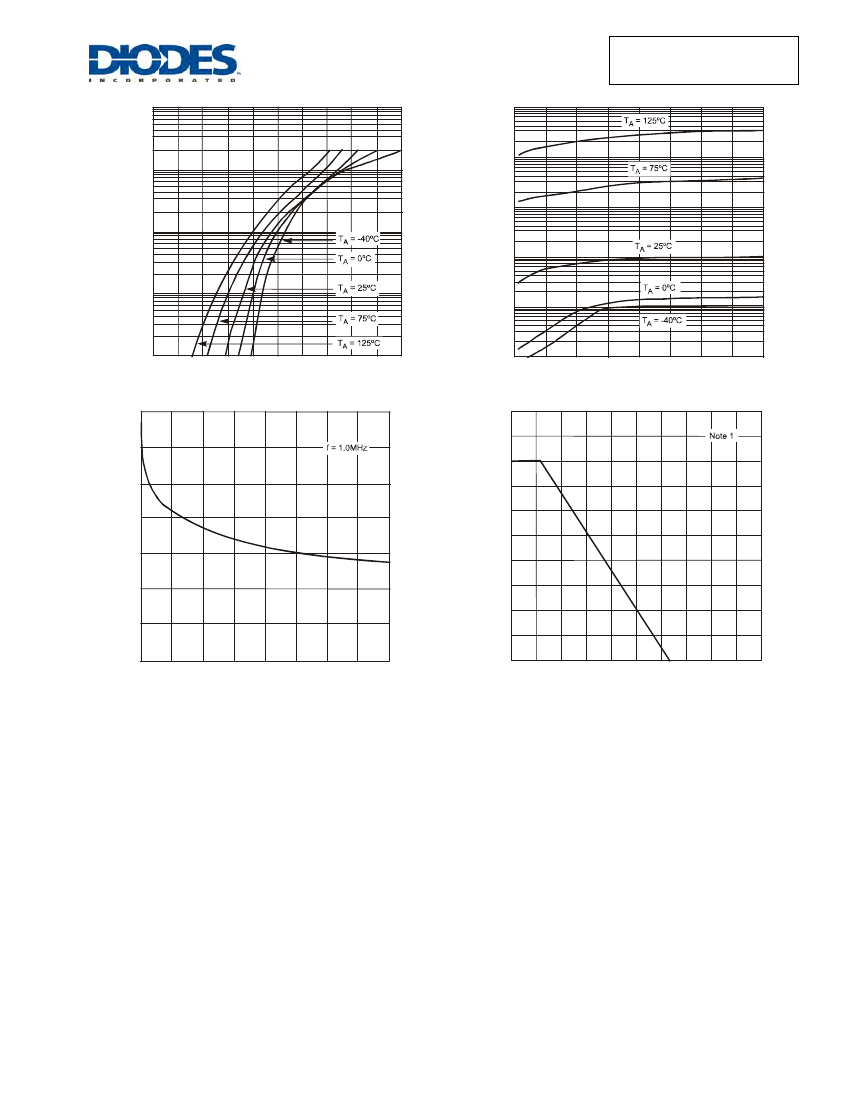

Fig. 1 Typical Forward Characteristics
0.1
0
10
20
30
40
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics
250
3
P
D
, POWER DISSIPATION (mW)
C
T
, TOTAL CAPACITANCE (pF)
200
2
150
100
1
50
0
0
10
30
40
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 3 Total Capacitance vs. Reverse Voltage
0
0
40
80
120
160
200
T
A
, AMBIENT TEMPERATURE (ºC)
Fig. 4 Power Derating Curve, Total Package
BAS40TW /DW-04
/DW-05 /DW-06 /BRW
Document number: DS30156 Rev. 13 - 2
2 of 4
www.diodes.com
July 2008
© Diodes Incorporated
BAS40TW /DW-04
/DW-05 /DW-06 /BRW
Ordering Information
Part Number
BAS40TW-7-F
BAS40DW-04-7-F
BAS40DW-05-7-F
BAS40DW-06-7-F
BAS40BRW-7-F
Notes:
(Note 6)
Case
SOT-363
SOT-363
SOT-363
SOT-363
SOT-363
Packaging
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Kxx = Product Type Marking Code
K43 = BAS40TW
K44 = BAS40DW-04
K45 = BAS40DW-05
K46 = BAS40DW-06
K47 = BAS40BRW
For Assymetrical Configuration, orientation indicator as shown
For Symmetrical Configuration, no orientation indicator
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
2005
S
May
5
2006
T
2007
U
Jun
6
2008
V
Jul
7
2009
W
Aug
8
2010
X
2011
Y
Sep
9
2012
Z
Oct
O
2013
A
Nov
N
2014
B
2015
C
Dec
D
Date Code Key
Year
Code
Month
Code
2000
L
Jan
1
2001
M
2002
N
2003
P
Mar
3
Feb
2

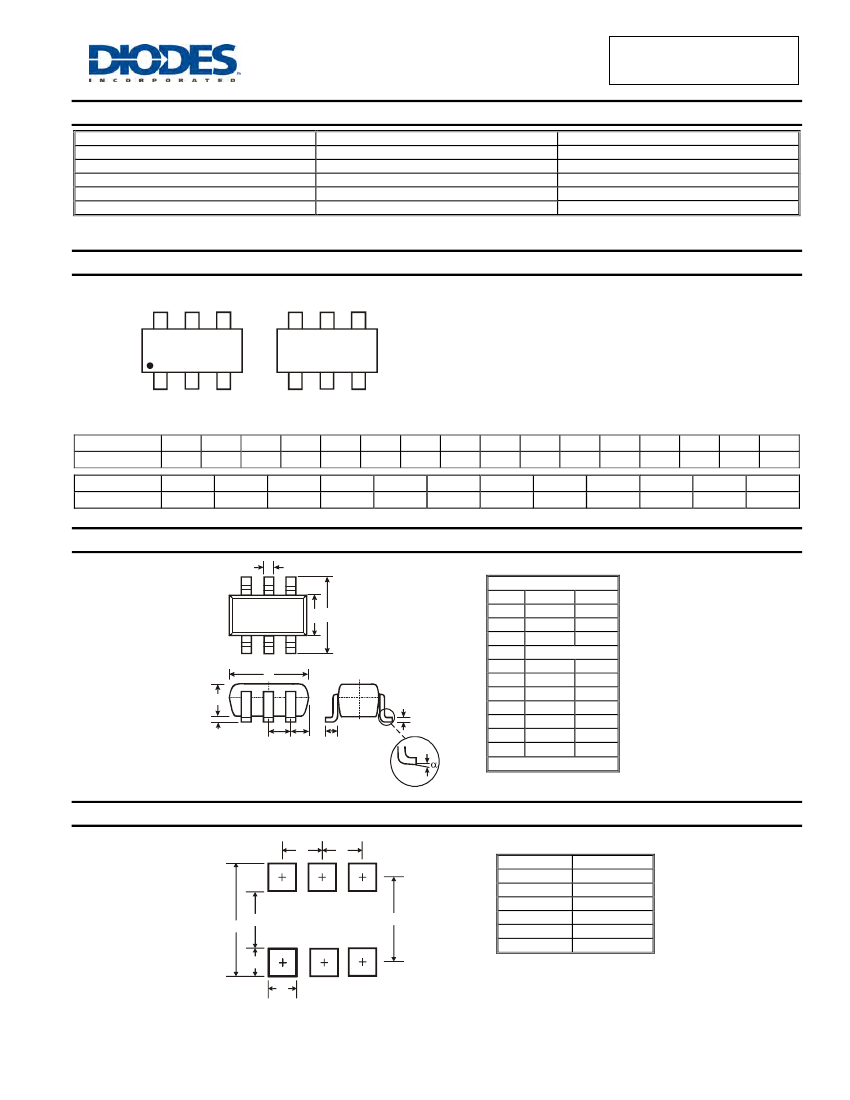

Package Outline Dimensions
A
H
K
M
J
D
Suggested Pad Layout
E
E
Z
G
Y
X
BAS40TW /DW-04
/DW-05 /DW-06 /BRW
Document number: DS30156 Rev. 13 - 2
Kxx YM
2004
R
Apr
4
B C
F
L
C
Kxx
YM
Kxx YM
SOT-363
Dim
Min
Max
A
0.10
0.30
B
1.15
1.35
C
2.00
2.20
D
0.65 Nominal
F
0.40
0.45
H
1.80
2.20
J
0
0.10
K
0.90
1.00
L
0.25
0.40
M
0.10
0.22
0°
8°
α
All Dimensions in mm
Dimensions Value (in mm)
Z
2.5
G
1.3
X
0.42
Y
0.6
C
1.9
E
0.65
3 of 4
www.diodes.com
July 2008
© Diodes Incorporated
BAS40TW /DW-04
/DW-05 /DW-06 /BRW
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
BAS40TW /DW-04
/DW-05 /DW-06 /BRW
Document number: DS30156 Rev. 13 - 2
4 of 4
www.diodes.com
July 2008
© Diodes Incorporated
