SDM100K30L
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Please click here to visit our online spice models database.
Features
•
•
•
•
Very Low Forward Voltage Drop
Guard Ring Construction for Transient Protection
High Conductance
Lead, Halogen and Antimony Free, RoHS Compliant
"Green" Device (Notes 2, 4 and 5)
Mechanical Data
•
•
•
•
•
•
•
•
Case: SOD-323
Case Material: Molded Plastic. "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminal Connections: Cathode Band
Terminals: Finish – Matte Tin Annealed Over Alloy 42
Leadframe. Solderable per MIL-STD-202, Method 208
Marking Information: See Page 2
Ordering Information: See Page 2
Weight: 0.004 grams (approximate)
NEW PRODUC T
Top View
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current
8.3ms Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
Value
30
21
1
9
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Power Dissipation (Note 1)
Typical Thermal Resistance Junction to Ambient (Note 1)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J,
T
STG
Value
200
426
-65 to +125
Unit
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 3)
Forward Voltage Drop
Leakage Current (Note 3)
Total Capacitance
Notes:
1.
2.
3.
4.
5.
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
I
R
C
T
Min
30
⎯
⎯
⎯
⎯
Typ
⎯
⎯
⎯
⎯
22
Max
⎯
360
485
100
⎯
Unit
V
mV
μA
pF
Test Conditions
I
R
= 500μA
I
F
= 100mA
I
F
= 1A
V
R
= 20V
f = 1MHz, V
R
= 10VDC
Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Diodes Inc’s “Green” policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Short duration pulse test used to minimize self-heating effect.
No purposefully added lead. Halogen and Antimony Free.
Product manufactured with Green Molding Compound and does not contain Halogens or Sb
2
O
3
Fire Retardants.
SDM100K30L
Document number: DS30579 Rev. 8 - 2
1 of 3
www.diodes.com
June 2008
© Diodes Incorporated

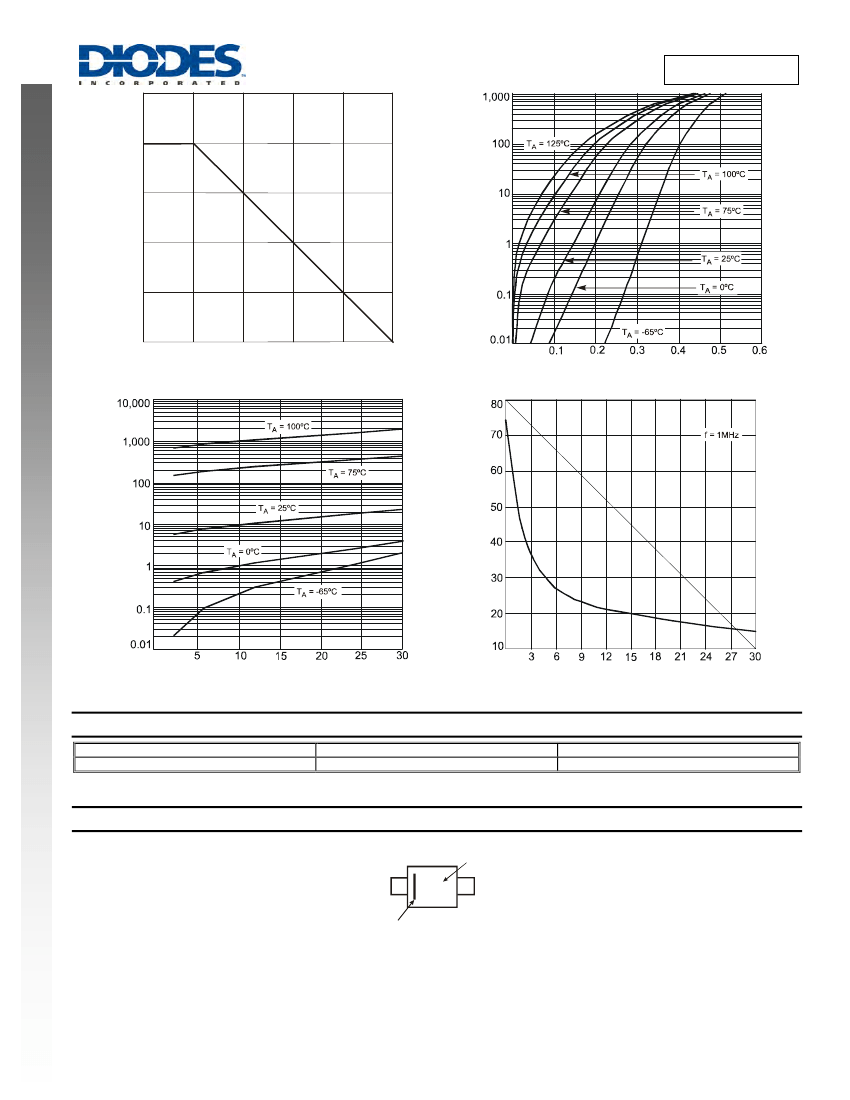

SDM100K30L
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
1.0
NEW PRODUCT
0.5
0
0
50
100
25
75
T
T
, TERMINAL TEMPERATURE (
°
C)
Fig. 1 Forward Current Derating Curve
125
0
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
0
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
C
T
, TOTAL CAPACITANCE (pF)
0
V
R
, REVERSE VOLTAGE (V)
Fig. 4 Typical Total Capacitance vs Reverse Voltage
Ordering Information
Part Number
SDM100K30L-7
Notes:
(Note 6)
Case
SOD-323
Packaging
3000/Tape & Reel
6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
Type Code
VF
Cathode Band
SDM100K30L
Document number: DS30579 Rev. 8 - 2
2 of 3
www.diodes.com
June 2008
© Diodes Incorporated
SDM100K30L

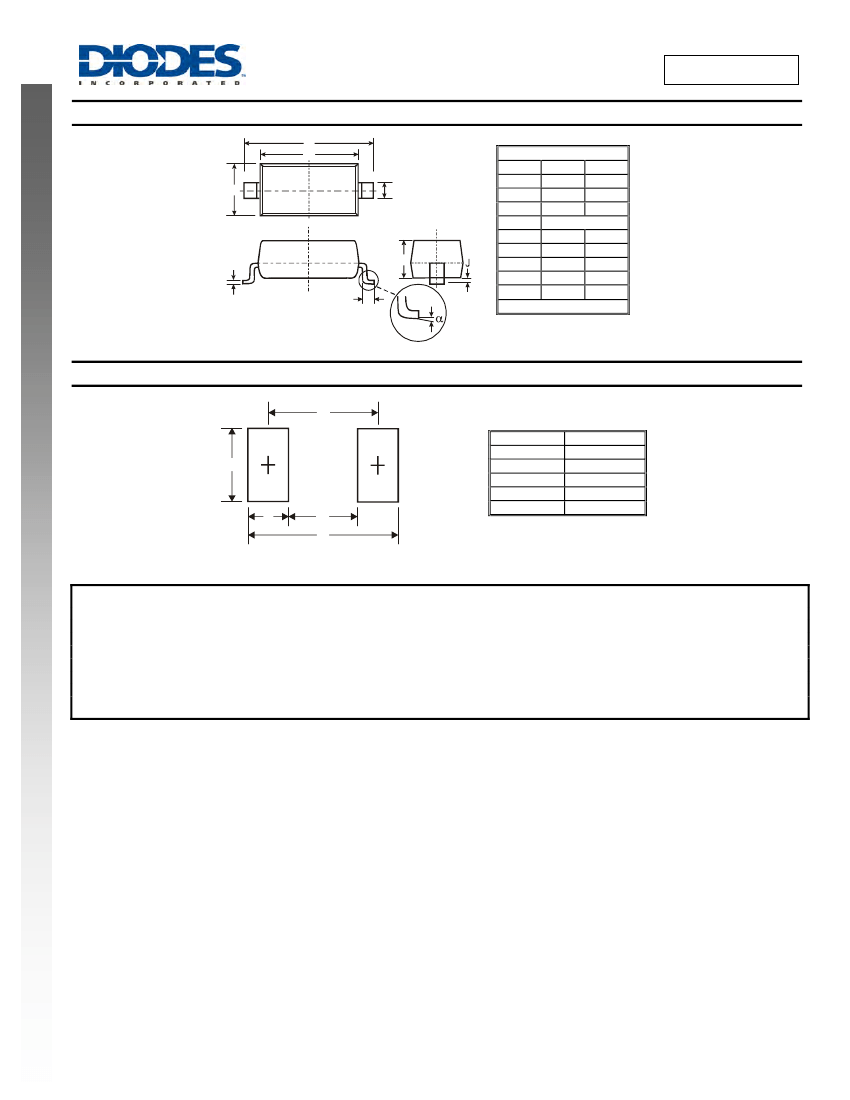

Package Outline Dimensions
A
B
C
E
NEW PRODUCT
H
G
D
SOD-323
Dim
Min
Max
A
2.30
2.70
1.60
1.80
B
1.20
1.40
C
1.05 Typical
D
E
0.25
0.35
G
0.20
0.40
H
0.10
0.15
J
0.00
0.10
0°
8°
α
All Dimensions in mm
Suggested Pad Layout
C
X
Y
G
Z
Dimensions Value (in mm)
Z
3.75
G
1.05
X
0.65
Y
1.35
C
2.40
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
SDM100K30L
Document number: DS30579 Rev. 8 - 2
3 of 3
www.diodes.com
June 2008
© Diodes Incorporated
