Easy assembly reduces time and labor to ensure low
applied cost
•
Light weight, compact design
•
Strain relief compensates for multiple cable
diameters
•
Jackscrews provide positive retention
•
See Regulatory Information Appendix (RIA) for
chemical compliance information
Date Modified: August 5, 2008
TS-0032-B
Sheet 1 of 2
Physical
Shell:
Material:
Plating:
Compression Insert:
Material:
Flammability:
Durometer:
Hardware:
ABS
Nickel over Copper
Thermoplastic Elastometer
UL 94V-0
75 ± 5
(2) Jackscrews #4-40 × .438
(2) Saddle Washers
(2) Nuts 4-40 UNC for 9, 15 & 25 position
(3) Nuts 4-40 UNC for 37 position
(2) Screws 4-40 UNC for 9, 15 & 25 position
(3) Screws 4-40 UNC for the 37 position
Material: Steel
Plating: Zinc
Mounting Hardware:
See Specification Sheet TS-0142
Environmental
Temperature Rating:
0°C to +75°C
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

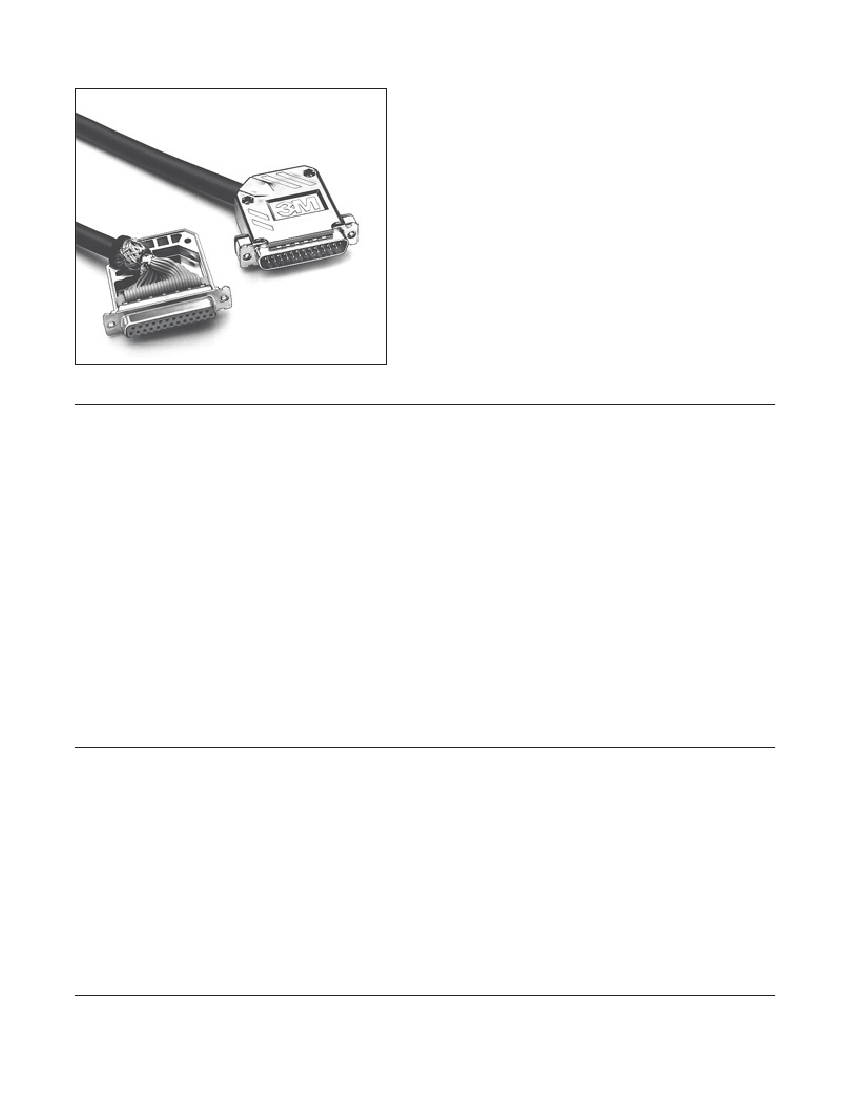

D Sub EMI Junction Shell
Metalized Plastic
Table 1 - Compression Insert Dimensions
Insert for
3357-6509
3357-6515
3357-6525
3357-6537
1
OD
0.475
[ 12.07 ]
0.600
[ 15.24 ]
0.810
[ 20.57 ]
2
ID
0.320
[ 8.13 ]
0.450
[ 11.43 ]
0.650
[ 16.51 ]
D
3
ID
0.315
[ 8.00 ]
0.410
[ 10.41 ]
0.620
[ 15.75 ]
4
ID
0.285
[ 7.24 ]
0.370
[ 9.40 ]
0.570
[ 14.48 ]
5
ID
0.255
[ 6.48 ]
0.300
[ 7.62 ]
0.500
[ 12.70 ]
6
ID
0.210
[ 5.33 ]
0.230
[ 5.84 ]
0.425
[ 10.80 ]
OD
0.360
[ 9.14 ]
0.450
[ 11.43 ]
0.700
[ 17.78 ]
OD
0.360
[ 9.14 ]
0.450
[ 11.43 ]
0.655
[ 16.64 ]
OD
0.360
[ 9.14 ]
0.450
[ 11.43 ]
0.655
[ 16.64 ]
OD
0.360
[ 9.14 ]
0.450
[ 11.43 ]
0.655
[ 16.64 ]
OD
N/A
N/A
0.655
[ 16.64 ]
ID
N/A
N/A
0.350
[ 8.89 ]
G
0.475
[ 12.07 ]
0.600
[ 15.24 ]
0.810
[ 20.57 ]

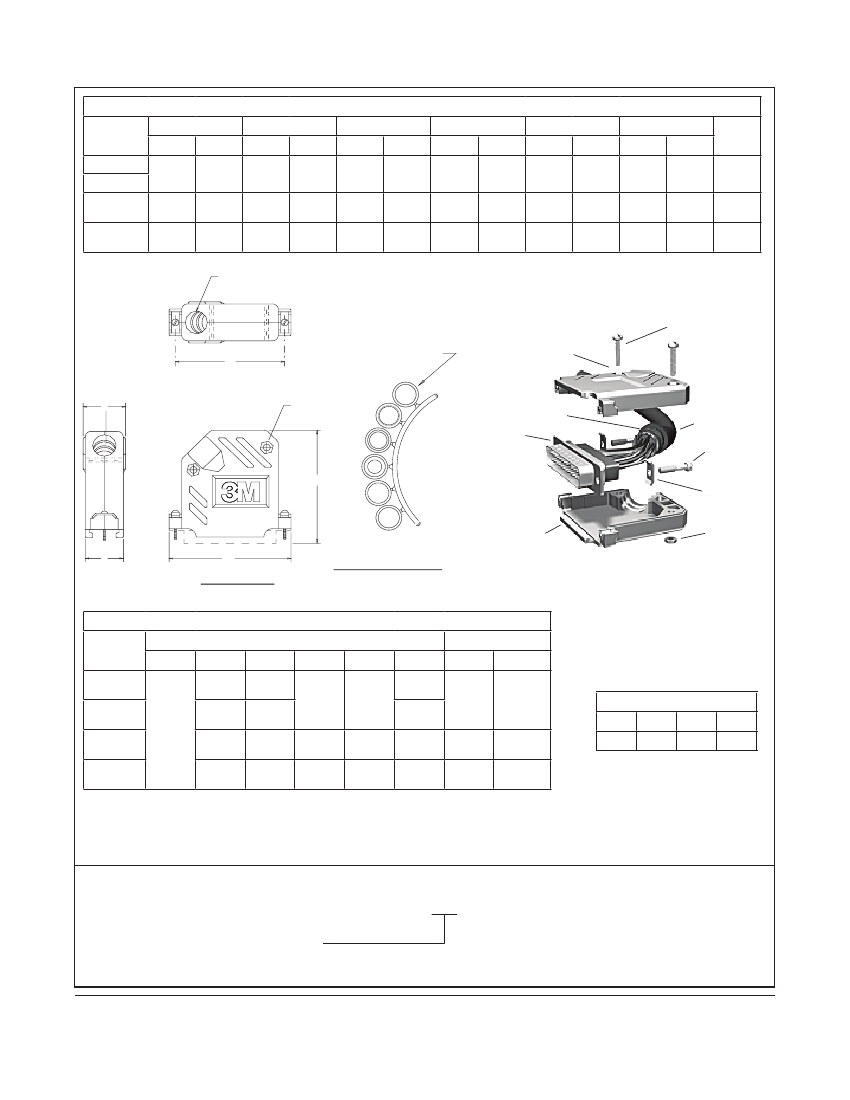

COVER SCREW
F
G (Dia Collar)
1
See note 3
3
4
C
5
6
2
TOP COVER
E
CABLE SHIELD
(FOLDED BACK)
CONNECTOR
CABLE
CAPTIVE SCREW
SADDLE WASHER
BOTTOM COVER
NUT
A
B
Junction Shell
see Table 2
Compression Inserts
see Table 1
Table 2 - Junction Shell
3M Part
Number
3357-6509
3357-6515
3357-6525
3357-6537
0.64
[ 16.3 ]
Dimensions
A
B
1.22
[ 31.0 ]
1.54
[ 39.1 ]
2.09
[ 53.1 ]
2.73
[ 69.3 ]
Cable O.D. Range
E
0.64
[ 16.3 ]
0.71
[ 18.0 ]
0.91
[ 23.11 ]
C
1.58
[ 40.13 ]
1.88
[ 47.75 ]
1.71
[ 43.43 ]
2.12
[ 53.85 ]
D
0.40
[ 1.02 ]
0.52
[ 13.2 ]
0.73
[ 18.5 ]
F
0.984
[ 24.99 ]
1.312
[ 33.32 ]
1.857
[ 47.17 ]
2.500
[ 63.50 ]
Min
0.210
[ 5.33 ]
0.23
[ 5.84 ]
0.35
[ 8.89 ]
Max
0.320
[ 8.13 ]
0.45
[ 11.43 ]
0.65
[ 16.51 ]
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
[ ] Dimensions for Reference Only
Note:
1. Compression inserts cannot be ordered separately.
2. Use applicable Jack Screw or Jack Socket Kit mounting hardware.
3. The 37 position shell has 3 cover screw holes.
Ordering Information
Connector Size
09 = 9 Position
15 = 15 Position
25 = 25 Position
37 = 37 Position
3357 - 65XX - 1C
TS-0032-B
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
