Intersil products are sold by description only. Intersil may modify the circuit design and/or specifications of products at any time without notice, provided that such
modification does not, in Intersil's sole judgment, affect the form, fit or function of the product. Accordingly, the reader is cautioned to verify that datasheets are
current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumed by Intersil or its
subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or
otherwise under any patent or patent rights of Intersil or its subsidiaries.
For information regarding Intersil Corporation and its products, see
www.intersil.com
FN4907 Rev 6.00
February 6, 2017
Page 4 of 6

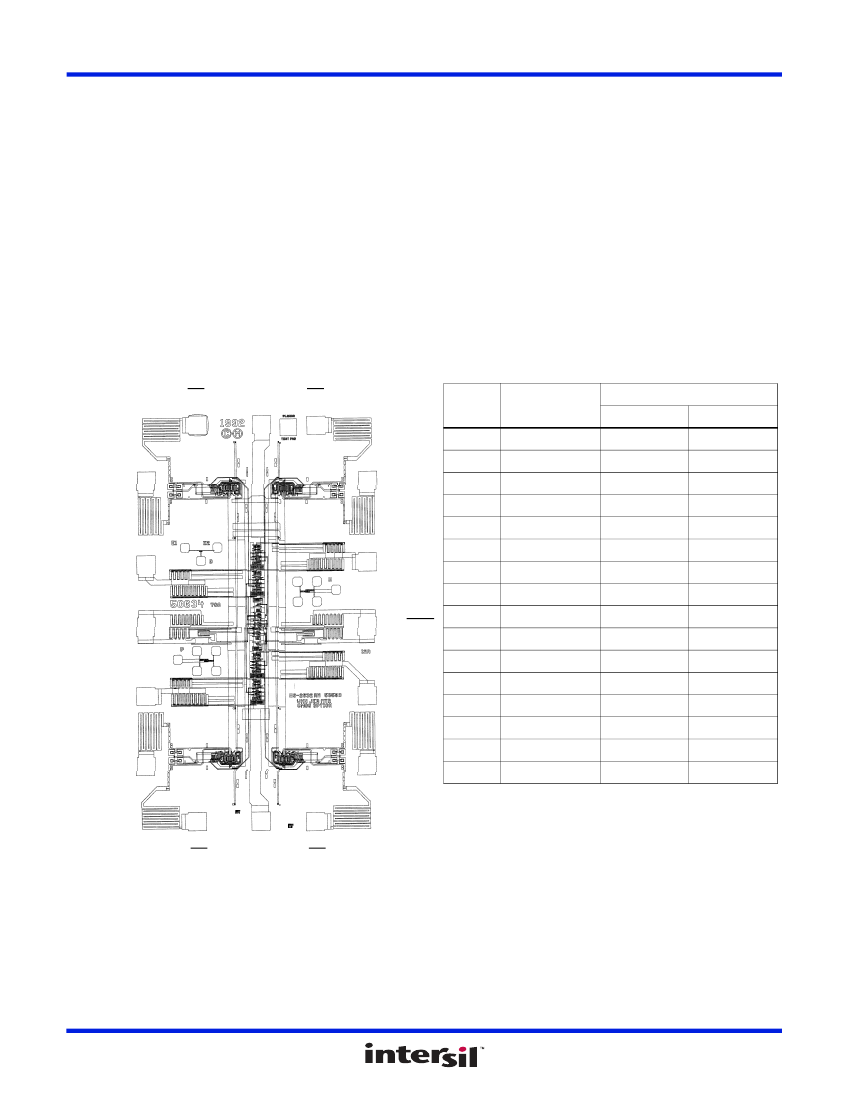

HS-26CLV32RH, HS-26CLV32EH
Package Outline Drawing
K16.A
16 LEAD CERAMIC METAL SEAL FLATPACK PACKAGE
Rev 2, 1/10
0.015 (0.38)
0.008 (0.20)
PIN NO. 1
ID OPTIONAL
1
2
For the most recent package outline drawing, see
K16.4.
0.050 (1.27 BSC)
PIN NO. 1
ID AREA
0.440 (11.18)
MAX
0.005 (0.13)
MIN
4
0.022 (0.56)
0.015 (0.38)
TOP VIEW
0.115 (2.92)
0.045 (1.14)
0.045 (1.14)
0.026 (0.66)
6
0.285 (7.24)
0.245 (6.22)
0.009 (0.23)
0.004 (0.10)
-D-
-H-
-C-
0.13 (3.30)
MIN
0.370 (9.40)
0.250 (6.35)
SEATING AND
BASE PLANE
0.03 (0.76) MIN
LEAD FINISH
SIDE VIEW
NOTES:
1. Index area: A notch or a pin one identification mark shall be located
adjacent to pin one and shall be located within the shaded area shown.
The manufacturer’s identification shall not be used as a pin one
identification mark. Alternately, a tab may be used to identify pin one.
2. If a pin one identification mark is used in addition to a tab, the limits
of the tab dimension do not apply.
3. The maximum limits of lead dimensions (section A-A) shall be
measured at the centroid of the finished lead surfaces, when solder
dip or tin plate lead finish is applied.
4. Measure dimension at all four corners.
5. For bottom-brazed lead packages, no organic or polymeric materials
shall be molded to the bottom of the package to cover the leads.
3
SECTION A-A
6. Dimension shall be measured at the point of exit (beyond the
meniscus) of the lead from the body. Dimension minimum shall
be reduced by 0.0015 inch (0.038mm) maximum when solder dip
lead finish is applied.
7. Dimensioning and tolerancing per ANSI Y14.5M - 1982.
