5962F9568902QXC datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> 5962F9568902QXC

5962F9568902QXC: DescriptionQUAD LINE RECEIVER, CDFP16, CERAMIC, DFP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size64KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Environmental Compliance; Related ProductsFound5parts with similar functions to 5962F9568902QXC

Download Datasheet Parametric Compare View All

5962F9568902QXC Overview

QUAD LINE RECEIVER, CDFP16, CERAMIC, DFP-16

5962F9568902QXC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Parts packaging code	DFP
package instruction	DFP, FL16,.3
Contacts	16
Reach Compliance Code	compliant
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	GENERAL PURPOSE
JESD-30 code	R-CDFP-F16
JESD-609 code	e4
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output low current	0.006 A
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum receive delay	65 ns
Number of receiver bits	4
Filter level	MIL-PRF-38535 Class Q
Maximum seat height	2.92 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Gold (Au)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	300k Rad(Si) V
width	6.73 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HS-26CLV32RH

Data Sheet

August 2000

File Number

4907

Radiation Hardened 3.3V Quad Differential

Line Receiver

The Intersil HS-26CLV32RH is a radiation hardened 3.3V

quad differential line receiver designed for digital data

transmission over balanced lines, in low voltage, RS-422

protocol applications. Radiation hardened CMOS processing

assures low power consumption, high speed, and reliable

operation in the most severe radiation environments.

The HS-26CLV32RH has an input sensitivity of 200mV (Typ)

over a common mode input voltage range of -4V to

+7V.

The

receivers are also equipped with input fail safe circuitry,

which causes the outputs to go to a logic “1” when the inputs

are open. The device has unique inputs that remain high

impedance when the receiver is disabled or powered-down,

maintaining signal integrity in multi-receiver applications.

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Speciﬁcations for these devices are

contained in SMD 5962-95689. A “hot-link” is provided

on our homepage for downloading.

www.intersil.com/spacedefense/space.asp

Features

• Electrically Screened to SMD # 5962-95689

• QML Qualiﬁed per MIL-PRF-38535 Requirements

• 1.2 Micron Radiation Hardened CMOS

- Total Dose. . . . . . . . . . . . . . . . . . . . . 300 krad(Si)(Max)

- Single Event Upset LET . . . . . . . . . . .100MeV/mg/cm

)

- Single Event Latch-up Immune

• Low Stand-by Current. . . . . . . . . . . . . . . . . . . 13mA(Max)

• Operating Supply Range . . . . . . . . . . . . . . . . 3.0V to 3.6V

• Enable Input Levels . . . . V

> (.7)(V

); V

< (.3)(V

)

• CMOS Output Levels . . . . . . . . V

> 2.55V; V

< 0.4V

• Input Fail Safe Circuitry

• High Impedance Inputs when Disabled or Powered-down

• Full -55

C to 125

C Military Temperature Range

Pinouts

HS1-26CLV32RH 16 LEAD CERAMIC SIDEBRAZE DIP

MIL-STD-1835: CDIP2-T16

TOP VIEW

AIN 1

AIN 2

16 V

15 BIN

14 BIN

13 BOUT

12 ENABLE

11 DOUT

10 DIN

9 DIN

Ordering Information

ORDERING NO.

5962F9568902QEC

5962F9568902QXC

5962F9568902V9A

5962F9568902VEC

5962F9568902VXC

INTERNAL MKT. NO.

HS1-26CLV32RH-8

HS9-26CLV32RH-8

HS0-26CLV32RH-Q

HS1-26CLV32RH-Q

HS9-26CLV32RH-Q

TEMP.

RANGE

(

-55 to 125

AOUT

ENABLE 4

COUT 5

CIN 6

CIN 7

GND 8

HS1-26CLV32RH/PROTO HS1-26CLV32RH/PROTO -55 to 125

HS9-26CLV32RH/PROTO HS9-26CLV32RH/PROTO -55 to 125

HS9-26CLV32RH 16 LEAD FLATPACK

MIL-STD-1835: CDFP4-F16

TOP VIEW

AIN

BIN

BOUT

ENABLE

DOUT

DIN

Logic Diagram

ENABLE

ENABLE DIN DIN

CIN CIN

BIN BIN

AIN AIN

AOUT

ENABLE

COUT

CIN

GND

DOUT

COUT

BOUT

AOUT

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil and Design is a trademark of Intersil Corporation.

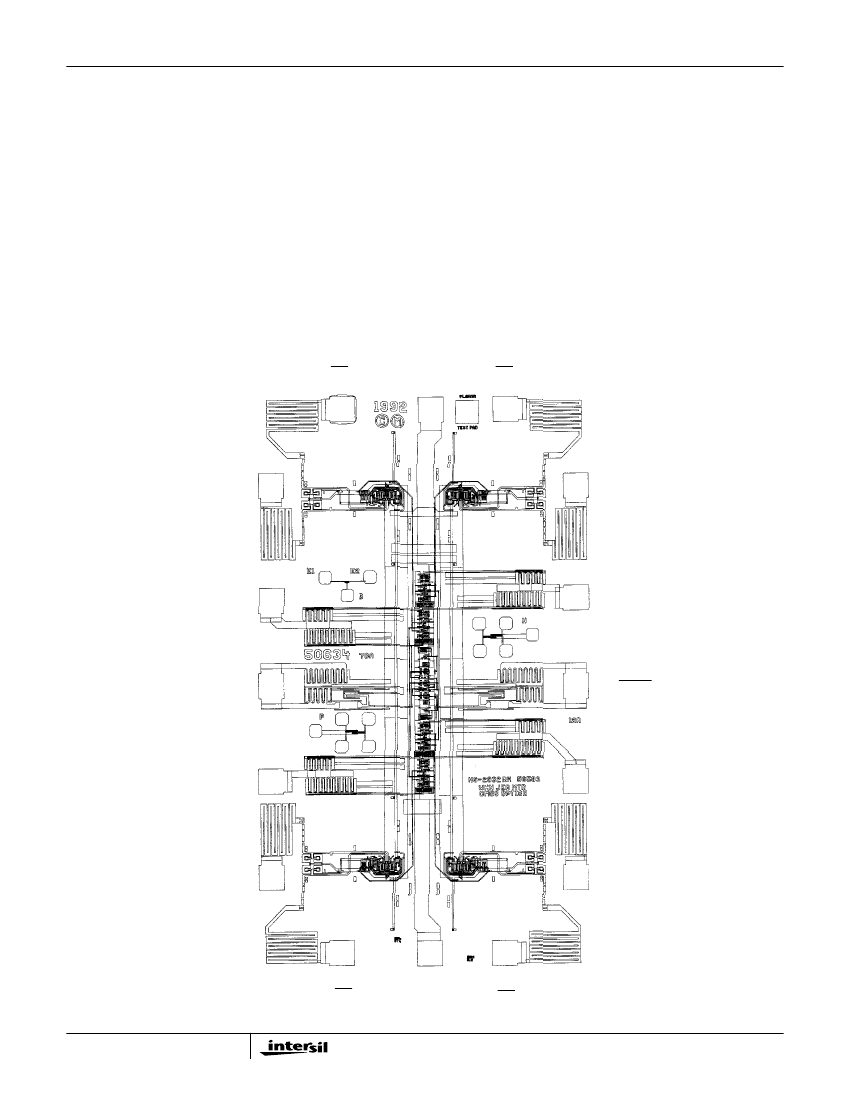

5962F9568902QXC Related Products

	5962F9568902QXC	5962F9568902VEC	5962F9568902V9A	5962F9568902VXC	5962F9568902QEC
Description	QUAD LINE RECEIVER, CDFP16, CERAMIC, DFP-16	QUAD LINE RECEIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	QUAD LINE RECEIVER, UUC16, DIE-16	QUAD LINE RECEIVER, CDFP16, CERAMIC, DFP-16	QUAD LINE RECEIVER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16
Is it Rohs certified?	conform to	conform to	incompatible	conform to	conform to
Parts packaging code	DFP	DIP	DIE	DFP	DIP
package instruction	DFP, FL16,.3	DIP, DIP16,.3	DIE, DIE OR CHIP	DFP, FL16,.3	DIP, DIP16,.3
Contacts	16	16	16	16	16
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
JESD-30 code	R-CDFP-F16	R-CDIP-T16	R-XUUC-N16	R-CDFP-F16	R-CDIP-T16
Number of functions	4	4	4	4	4
Number of terminals	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output low current	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DIE	DFP	DIP
Encapsulate equivalent code	FL16,.3	DIP16,.3	DIE OR CHIP	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	UNCASED CHIP	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum receive delay	65 ns	65 ns	65 ns	65 ns	65 ns
Number of receiver bits	4	4	4	4	4
Filter level	MIL-PRF-38535 Class Q	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class V	MIL-PRF-38535 Class Q
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	NO LEAD	FLAT	THROUGH-HOLE
Terminal location	DUAL	DUAL	UPPER	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
total dose	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V	300k Rad(Si) V
JESD-609 code	e4	e4	-	e4	e4
Maximum seat height	2.92 mm	5.08 mm	-	2.92 mm	5.08 mm
Terminal surface	Gold (Au)	Gold (Au)	-	Gold (Au)	Gold (Au)
Terminal pitch	1.27 mm	2.54 mm	-	1.27 mm	2.54 mm
width	6.73 mm	7.62 mm	-	6.73 mm	7.62 mm
Base Number Matches	1	1	1	-	-
Is it lead-free?	-	Lead free	Contains lead	-	Lead free
Maker	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
