02/11/2015
www.crouzet.com

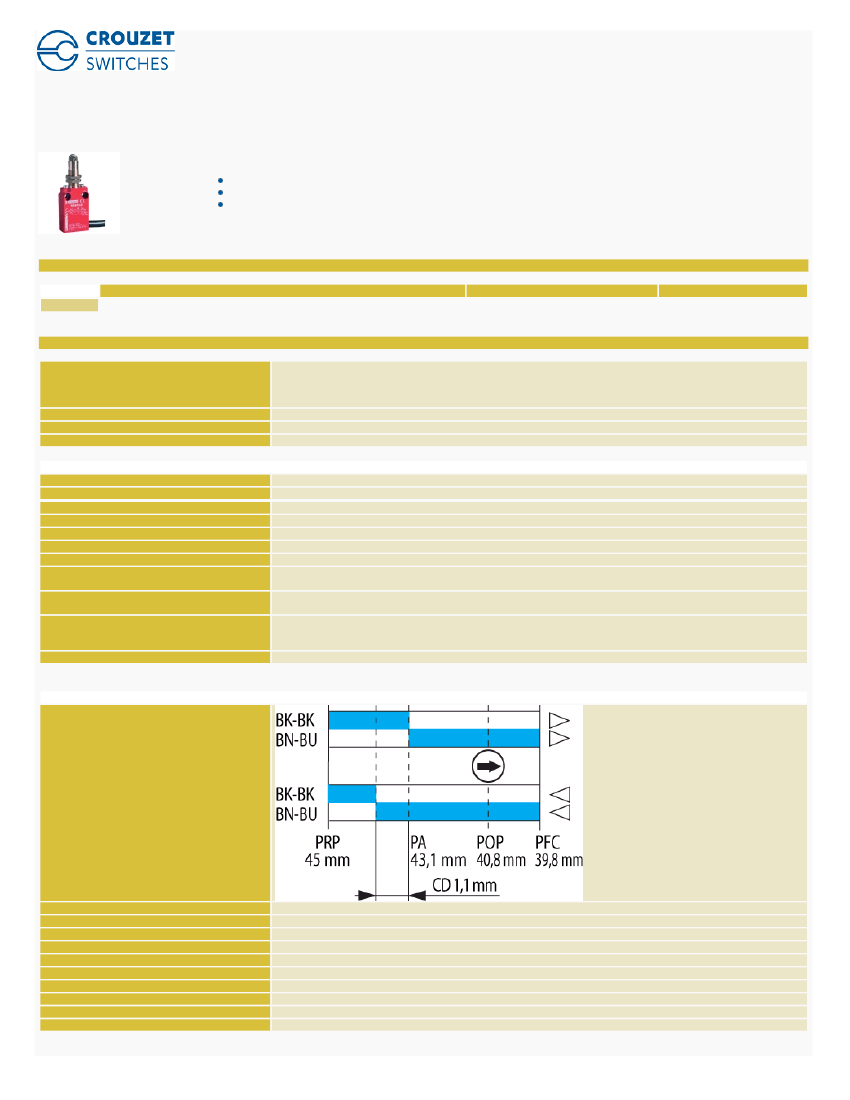

83870 with cable output Roller plunger - metal with threaded barrel Part number 83876103
IP 66/67
Metal case
cUL approval
Part numbers
Type
83 876 103
Roller plunger - metal with threaded barrel
Characteristics
Plunger with 90° roller
Type of output
Cable length 3 m
Specifications
Conformity to standards
IEC / EN 60947.5.1
Dimensional conformity : NFC 63145
Low voltage directive : 73/23/EEC and 93/68/EEC
Electric shock protection : NFC 20030 ou IEC 60536 class 1, degree of pollution 3
Protection against electric shocks
Degree of protection IEC 60529
Degree of protection according to NEMA 250
Type 1, 3, 4, 6, 13
Electrical characteristics
Connection
Operating temperature (°C)
Assigned impulse voltage (Uimp) - V
Assigned insulation voltage Ui (V)
Thermal current I (A)
Low-load switching - Minimum voltage (V)
Low-load switching - Minimum current (mA)
Assigned working characteristics (EN 60 947.5.1, UL
508)
Electrical life according to IEC 947-5-1 appendix C
Electrical protection
-25 →+70 °C
2500
500
10
10
100
A300 = AC15 240 V 3 A / 120 V 6 A Alternating current
Q150 = DC13 125 V 0.55 A Direct current
250 V 3 A AC15 500,000 operations
24 V 8 W DC13 500,000 operations
Integral protective earth conductor
Short-circuit protection device : IEC/EN 60947-5-1
Fuse 6 AgG
UL 508, UL 50
Approvals
Mechanical characteristics
Sequence
Snap action
Minimum operating force (N)
Minimum operating force (Nm)
Minimum total travel force (N)
Minimum total travel force (Nm)
Min. positive opening travel (N)
Min. positive opening travel (Nm)
Mechanical life (millions of operations)
Vertical approach speed
Horizontal approach speed (30° cam)
Weight (g)
10
-
30
-
28
-
28
1 mm/min →0,5 m/s
1 mm/min →0,3 m/s
200
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
POP marking
Max.tightening thickness 10.5
www.crouzet.com

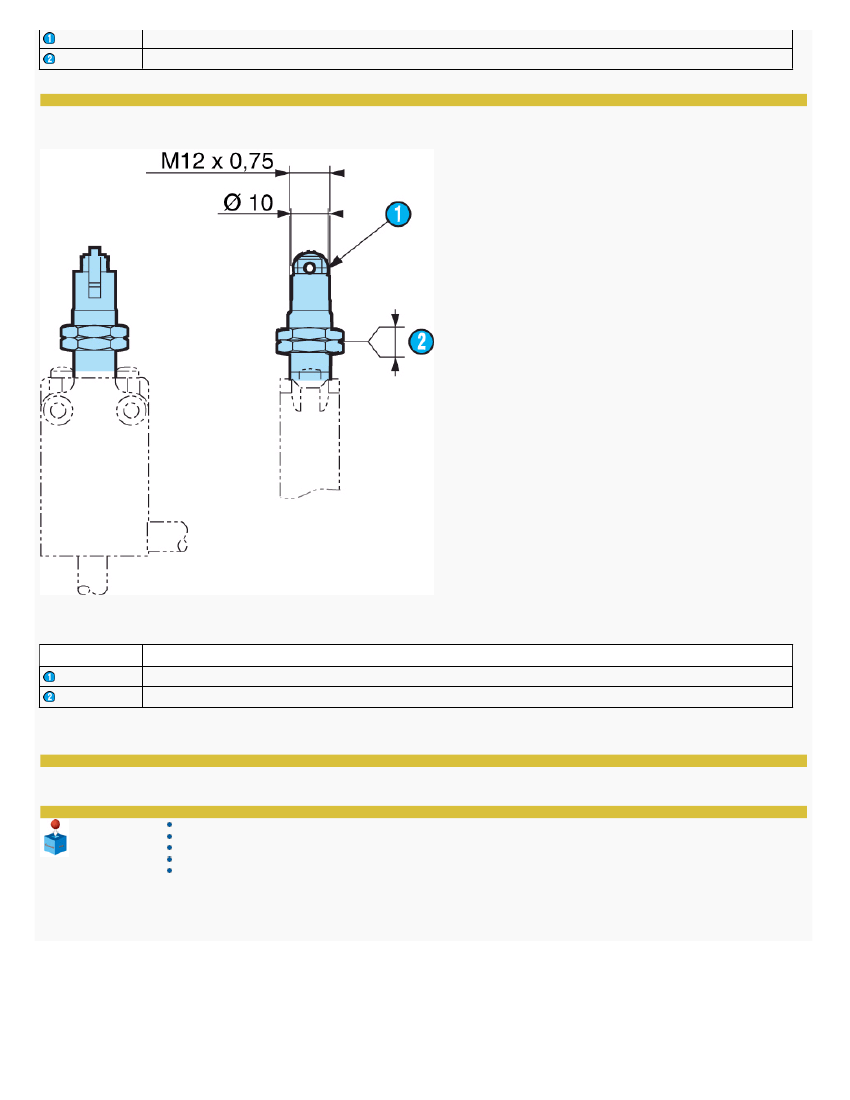

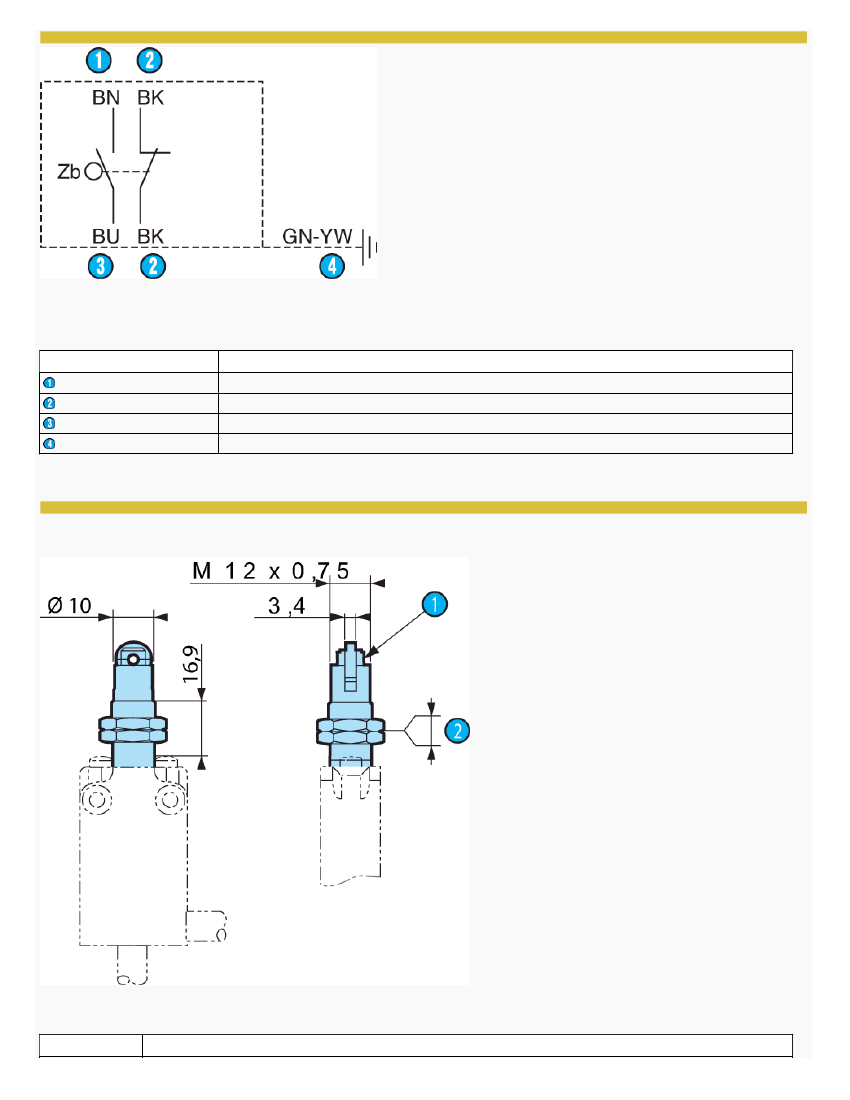

Dimensions (mm)
Product
83 876 1
83 876 0
N
o
Legend
POP marking
Max.tightening thickness 10.5
Other information
For other accessories and special contacts, or special modes of operation : please consult us.
Product adaptations
Contact type
Rear output
Protective scraper seal
Length of cable/connector/stripping
Special marking
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
