57 mm square and Ø 57 mm - 463 mNm continuous with Hall effect sensors 100 W nominal at 24 V and 3200 rpm Part number
80180504
High power motors (up to 160 W continuous at 24 VDC)
Suitable for voltages between 6 and 75 VDC
Ideal for applications where the control electronics have to be remote due to the high ambient temperature
Part numbers
Type
80180504
100 W nominal at 24 V and 3200 rpm
Type
801805
References
With BDE30 connections
Specifications
General characteristics
Max. speed (rpm)
Torque peak in (mNm)
Maximum continuous torque (mNm)
Motor constant (mNm/W
1/2
)
Electrical time constant (ms)
Mechanical time constant (ms)
Energy losses at peak torque (W)
Torque/speed factor - zero impedance (mNm/ (rad/s) )
Friction torque (mNm)
Rotor inertia (gcm
2
)
Thermal resistance (°C/W)
Max. coil temperature (
o
C)
Integrated temperature sensor
Number of phases
Number of poles
Ambient operating temperature (°C)
Dielectric strength at 500 V DC (MΩ)
Service life (h)
Output ball bearing
Weight (g)
Length (mm)
Protection index
10000
845*
340**
78
2,6
1,7
117
6,1
25
105
3,8
120
Yes***
3 (delta config)
4
-40 →70
1000
20000
Yes
1300
94
IP54
Comments
Standard winding
Phase-to-phase resistance (Ω)
Voltage at peak torque (V)
Current at peak torque (A)
Torque constant (mNm/A)
Back EMF constant (V/ (rad/s) )
Back EMF constant (V/Krpm)
Inductance (mH)
0,44 ±12,5 %
7,2
16,3
52 ±10 %
0,052
5,45 ±10 %
1,15 ±30 %
Comments
Motor mounted on aluminium plate 254 x 254 x 10 mm thick to encourage heat flow
* 10 sec. at 25 °C ambient temperature
** 25 °C ambient temperature and 120 °C winding temperature
*** With the exception of part number 80180504
Dimensions (mm)
801805
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
80180504 : With BDE30 connections
N
o
Legend
4 holes M5 over Ø 40 mm - depth of thread : 4.5 mm - depth of hole 6.6 mm
D : Ø8
- 0.010 mm- 0.020 mm
L : 94.2 mm max.
Dimensions (mm)
Holding brake : 80180514
Holding brake : At power switch off - 0.5 Nm - 7 W - 24 V ± 10 % Weight : 250 g - AWG26 leads - 400 mm
Curves
Power/Power supply
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
N
o
Legend
Winding

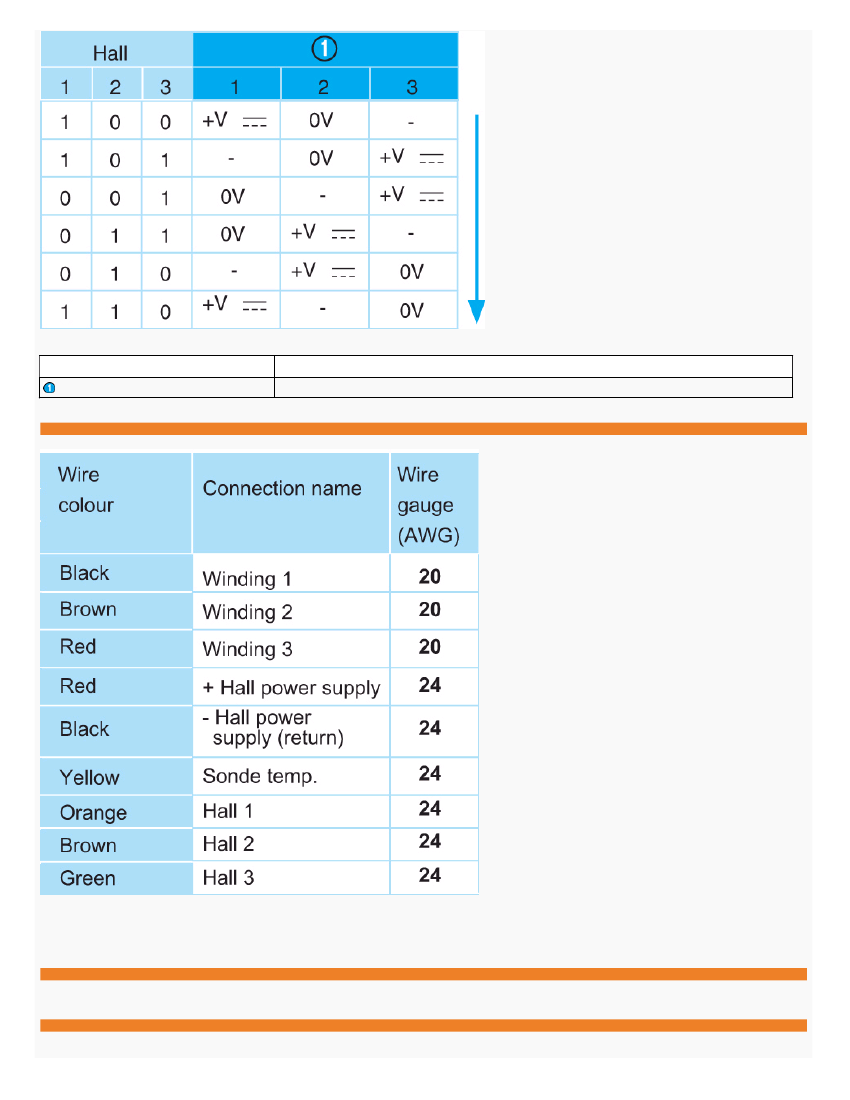

Connections
Part number 801805
Hall effect : Voltage range : 4.5 24 VDC Max. current : 20 mA Type of output : NPN open collector Not protected against connection errors
Other information
For other standard windings visit www.crouzet.com
Precautions for use
Not protected against connection errors
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
Product adaptations
Special shafts
Lead length
C12 connector built in
200, 500, 1000 points/revolution encoder
www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
