800AWSP8M2RE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 800AWSP8M2RE

800AWSP8M2RE: DescriptionPushbutton Switches Sealed Sub-Miniature SPDT IP67, 0.4VA@20V; CategoryMechanical and electronic products switch; File Size97KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com; Environmental Compliance

Download Datasheet Parametric View All

800AWSP8M2RE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800AWSP8M2RE	-	-	View	Buy Now

800AWSP8M2RE Overview

Pushbutton Switches Sealed Sub-Miniature SPDT IP67, 0.4VA@20V

800AWSP8M2RE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	E-Switch
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.215 inch
Actuator material	GLASS FILLED NYLON
Actuator type	PUSHBUTTON
body width	5.08 mm
body height	8.89 mm
Body length or diameter	8.128 mm
Nozzle length	0.177 inch
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Contact (AC) maximum rated power R load	0.4VA@20VAC
Contact function	ON-(ON)
Contact resistance	0.01 mΩ
contact time	SNAP ACTION
Dielectric withstand voltage	1000VRMS V
Electrical life	50000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
JESD-609 code	e4
Installation features	THROUGH HOLE-STRAIGHT
PCB hole count	2
seal	EPOXY
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Terminal surface	Gold (Au)
Terminal length	0.13 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

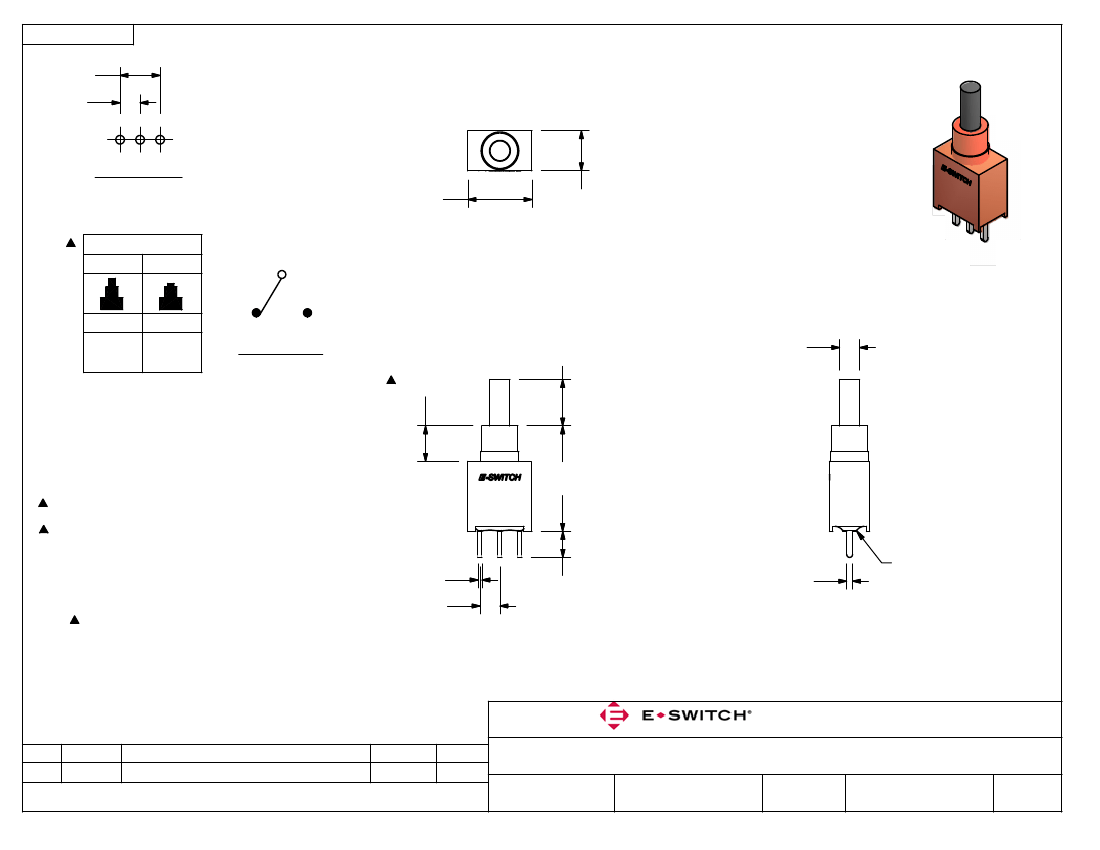

SHEET 1 OF 1

5.08

[.200 in]

2.54

[.100 in]

P.C. MOUNTING

8.13

[.320 in]

5.08

[.200 in]

SWITCH FUNCTION

POS. 1

POS. 2

ISOMETRIC

5.90

[.232 in]

4.50

[.177 in]

2.54

[.100 in]

2-1

(ON)

2-3

CIRCUIT: SPDT

(ON)=MOMENTARY

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: COPPER ALLOY W/ GOLD

PLATE OVER NICKEL PLATE

5. RATING: 0.4VA @ 20V AC OR DC MAX.

6. MECHANICAL LIFE: 50,000 MAKE-AND-BREAK CYCLES

7. CONTACT RESISTANCE: 20 mΩ MAX. INITIAL @ 2-4VDC

100mA FOR BOTH GOLD AND SILVER CONTACTS

8. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.

9. ELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

10. PERATING TEMP.: -30°C to 85°C

11.

DENOTES CRITICAL PARAMETER.

12. 2002/95/EC (ROHS) COMPLIANT

13.39

[.527 in]

.51

[.020 in]

2.54

[.100 in]

3.30

[.130 in]

.76

[.030 in]

EPOXY SEAL

BASE

REV

20053

PCR NO

UPDATE AND CONVERT TO INVENTOR

DESCRIPTION

07/15/11

DATE

BMA

TITLE

SCALE

800AWSP8M2RE

2:1

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

7/15/2011

BMA

DWG

T834001

REV
