5252 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Test and measurement> 5252

5252: DescriptionTest Clips SOIC TEST CLIP 16 PIN; CategoryTopical application Test and measurement; File Size21KB，1 Pages; ManufacturerPomona; Environmental Compliance

Download Datasheet Parametric Compare View All

5252 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5252	-	-	View	Buy Now

5252 Overview

Test Clips SOIC TEST CLIP 16 PIN

5252 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Pomona
Product Category	Test Clips
RoHS	Details
Product	SOIC Clips
Contact Plating	Gold
Description/Function	SOIC test clip
Features	Gold plated lower contacts assure reliable, noise free connections
Length	1.73 in
Packaging	Bulk
Insulation	Not Insulated
Number of Pins	16
Jaw Opening	0.36 in
Factory Pack Quantity	5
Unit Weight	0.655990 oz

Preview

Download Datasheet

View All

Pomona

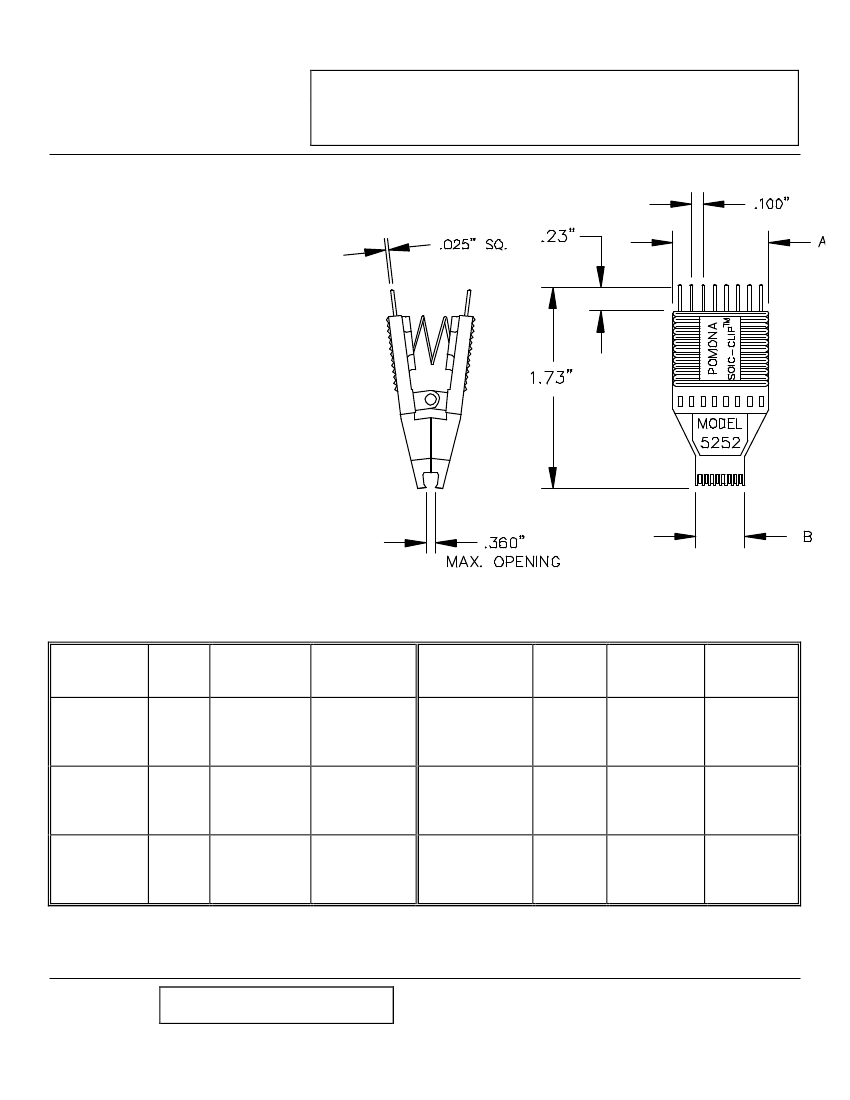

Model 5250, 5251, 5252, 5253, 5254 & 5437

Chip Lead Spacing: 0.050” (1,27)

These new test clips are designed

especially for in-circuit testing on Small

Outline Integrated Circuits (SOIC & SOJ).

The SOIC Clip test clip assures a positive

connection to all chip leads and provides

hands-free testing.

•

Upper contacts are .025" sq. pins,

spaced at .100". Pins are perfect for

sq. pin receptacles, wire-wrap or

jumper leads.

Gold plated lower contacts assure

reliable, noise free connections.

Molded barriers between each contact

allow connections to be made on live

boards without accidental shorting to

adjacent chip leads.

•

Fits surface mounted SOIC and SOJ chips

with gull wing or “J” leads and body width

from .150" to .350" wide.

Model 5514 is a kit of eight SOIC Test Clips, from 8 through 28 pins.

Model

Number

5250

No. of

Pins

Width

"A"

.430

Width

"B"

.260

(6,6)

.410

(10,41)

.460

(11,68)

Model

Number

5253

No. of

Pins

Width

"A"

1.030

Width

"B"

.560

(14,22)

.660

(16,76)

.760

(19,3)

(10,92)

.755

(26,16)

1.230

5251

(19,18)

.830

5254

(31,24)

1.430

5252

(21,08)

5437

(36,32)

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

7/1/02

SY/EH/LS

Sales: 800-490-2361 Fax: 888-403-3360

Technical Assistance: 800-241-2060

PomonaACCESS

90320

(800) 444-6785 or (425) 446-6010

More drawings available at www.pomonaelectronics.com

Page 1 of 1

C:\Laura Goldberg\FlukeDataSheet\d5250-54_5437_1_01.doc
