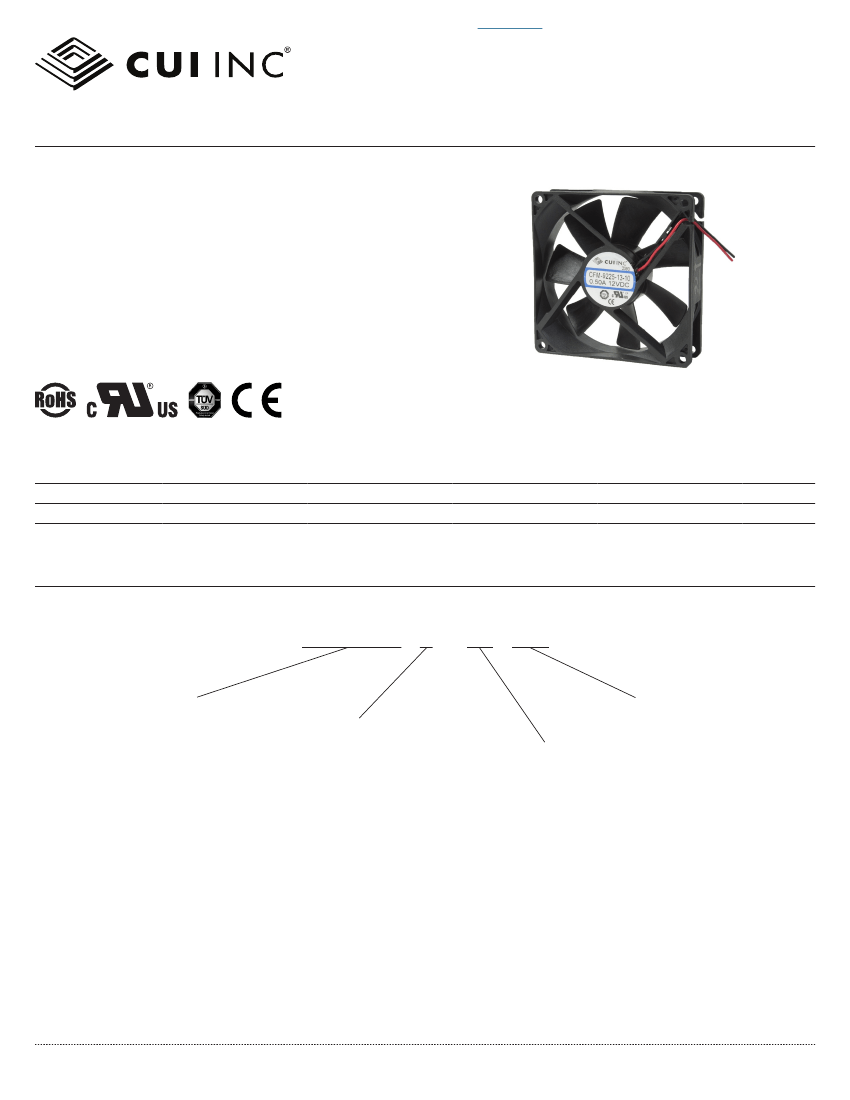

SERIES:
CFM-92
│
DESCRIPTION:
DC AXIAL FAN
FEATURES
• 92 x 92 mm frame
• high fan speed for greater air flow
• dual ball bearing construction
• auto restart protection standard on all models
MODEL
rated
(Vdc)
input
voltage
range
(Vdc)
typ
(A)
input
current
max
(A)
input
power
max
(W)
rated
speed
typ
(RPM)
air
flow
1
(CFM)
static
pressure
2
(inch H
2
O)
noise
max
(dBA)
CFM-9225-13*
CFM-9225-23*
Notes:
12
24
6~13.8
16~26.4
0.40
0.24
0.5
0.32
6
6.72
4,200
4,200
96.06
96.06
0.37
0.37
49.8
49.8
1. At 0 inch H
2
0 static pressure.
2. At 0 CFM airflow.
*. Discontinued CFM-9225-13-11, CFM-9225-23-10, CFM-9225-23-11, CFM-9225-23-20, and CFM-9225-23-22 models.
PART NUMBER KEY
CFM-9225 -
X
3 -
XX
-
CXX
Base Number
Input Voltage
1 = 12 Vdc
2 = 24 Vdc
Reserved for Custom
Configurations
Fan Signals
10 = no signals
11 = rotation detector signal
20 = tachometer signal
22 = tachometer signal / PWM control signal
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
CFM-92
│
DESCRIPTION:
DC AXIAL FAN
date
01/29/2018
│
page
2 of 5
INPUT
parameter
operating input voltage
current
power
starting voltage
conditions/description
12 Vdc input models
24 Vdc input models
12 Vdc input models
24 Vdc input models
12 Vdc input models
24 Vdc input models
at 25°C
12 Vdc input models
24 Vdc input models
min
6
16
typ
12
24
0.40
0.24
4.80
5.76
6
16
max
13.8
26.4
0.5
0.32
6
6.72
units
Vdc
Vdc
A
A
W
W
Vdc
Vdc
PERFORMANCE
parameter
rated speed
air flow
static pressure
noise
conditions/description
at 25°C, after 10 minutes
at 0 inch H
2
O, see performance curves
at 0 CFM, see performance curves
at 1 m
min
3,780
typ
4,200
96.06
0.37
48.5
49.8
max
4,620
units
RPM
CFM
inch H
2
O
dBA
PROTECTIONS / SIGNALS
1
parameter
auto restart protection
rotation detector
tachometer signal
PWM control signal
Notes:
conditions/description
available on all models
available on “11” models
available on “20” and “22” models
available on “22” models
min
typ
max
units
1. See application notes for details.
SAFETY & COMPLIANCE
parameter
insulation resistance of frame
dielectric strength
safety approvals
EMI/EMC
life expectancy
RoHS
conditions/description
at 500 Vdc between frame and positive terminal
at 500 Vac, 60 Hz, 1 minute between frame and
positive terminal
UL/cUL 507, TUV (EN 60950-1)
EN 55022:2010+AC:2011 Class B, EN 61000-3-
2:2014, EN 61000-3-3:2013, EN 55024:2010
at 45°C, 15~65% RH
2011/65/EU
70,000
hours
min
10
5
typ
max
units
MΩ
mA
ENVIRONMENTAL
parameter
operating temperature
storage temperature
operating humidity
storage humidity
non-condensing
non-condensing
conditions/description
min
-10
-40
5
5
typ
max
70
70
90
95
units
°C
°C
%
%
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
CFM-92
│
DESCRIPTION:
DC AXIAL FAN
date
01/29/2018
│
page
3 of 5

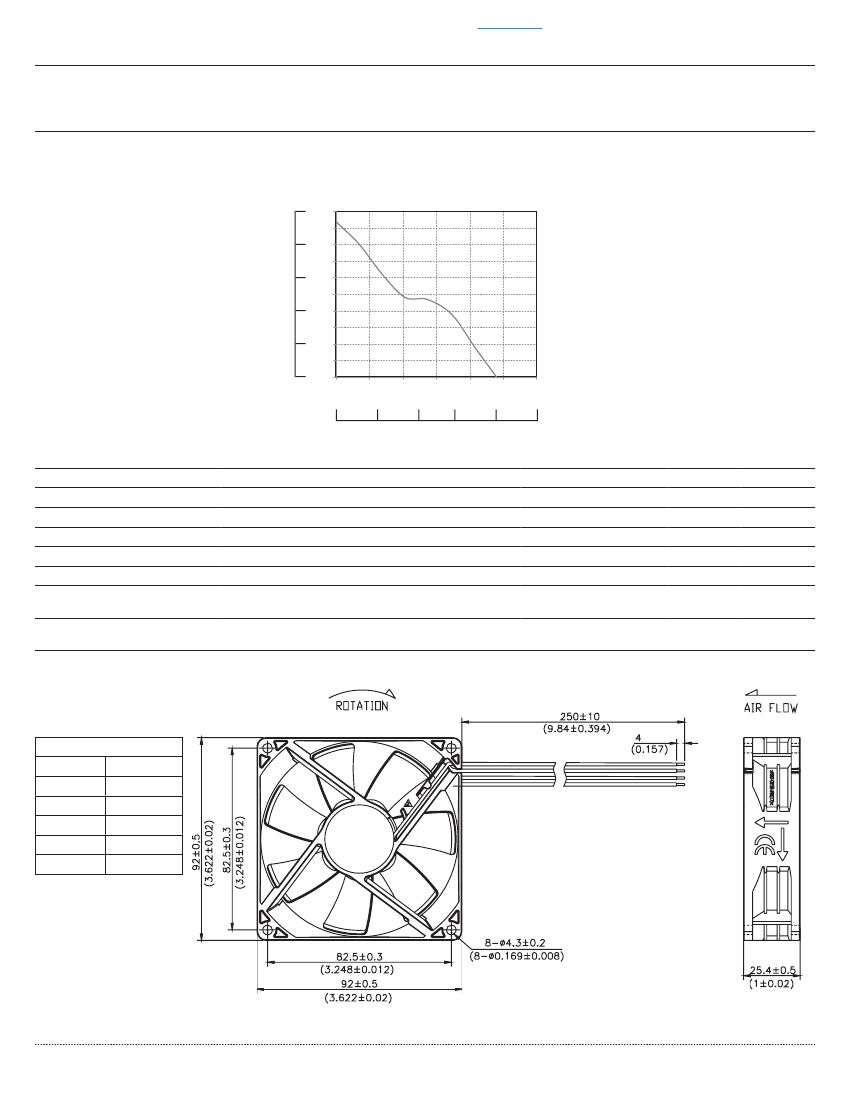

PERFORMANCE CURVES
(Inch H2O)
0.39
10.00
9.00
0.32
0.24
0.16
0.08
0.00
(mm H2O)
8.00
7.00
6.00
5.00
4.00
3.00
2.00
1.00
0.00
0.00
20.00
40.00
60.00
80.00
100.00
120.00 (CFM)
(CMM)
0.00
0.68
1.36
2.04
2.72
3.40
MECHANICAL
parameter
motor
bearing system
direction of rotation
dimensions
material
weight
conditions/description
4 pole DC brushless
ball bearing
counter-clockwise viewed from front of fan blade
92 x 92 x 25.4
PBT (UL94V-0)
12 Vdc input models
24 Vdc input models
96.3
97.0
g
g
mm
min
typ
max
units
MECHANICAL DRAWING
units: mm [inch]
wire: UL 1007, 24 AWG
WIRE CONNECTIONS
Wire Color
Red
Black
Yellow
1
White
1
Blue
1
Function
+Vin
-Vin
FG Signal
RD Signal
PWM
Note:
1. Wires only present on versions with output signals.
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
CFM-92
│
DESCRIPTION:
DC AXIAL FAN
date
01/29/2018
│
page
4 of 5
APPLICATION NOTES
Auto Restart Protection/Current Limit Protection
When the fan motor is locked, the device will cut off the drive current within two to six seconds and restart automatically
after a few seconds. If the lock situation is continued, the device will work on a repeated cycle of cut-off and restart until
the lock is released. (See Figure 1 below).
Figure 1 Current Limit Protection
Lock Sensor/Rotation Detector
Lock Sensor is used to detect if the fan motor is operating or stopped. Alarm High: the output will be logical low when fan
is operating and be logical high when fan motor is locked. (See Figures 2~3 below).
Figure 2 Alarm High
Output Waveform
Figure 3 RD Signal Output Circuit:
Open Collector
Ic=5mA max
Pulse Sensor/Tachometer Signal/FG
Pulse Sensor is for detecting the rotational speed of the fan motor. At locked rotor condition, the signal stops cycling and
the output is fixed at VoH or VoL
(See Figures 4~5 below).
Figure 4 Output Waveform
Figure 5 FG Signal Output Circuit:
Open Collector
Ic=10mA max
PMW Control Signal
A speed control lead can be provided that will accept a PWM signal from the customer circuit to vary the speed of the fan.
The change in speed is linear by changing the Duty-Cycle of the PWM. Open collector type and pull-up voltage is changed
by maximum operating voltage and sink current by consuming current. (See Figure 6 below).
Figure 6 Duty Cycle
Vs=4~5 V
cui.com
For more information, please visit the
product page.
CUI Inc
│
SERIES:
CFM-92
│
DESCRIPTION:
DC AXIAL FAN
date
01/29/2018
│
page
5 of 5
REVISION HISTORY
rev.
1.0
1.01
1.02
description
initial release
updated datasheet
discontinued CFM-9225-13-11, CFM-9225-23-10, CFM-9225-23-11,
CFM-9225-23-20, and CFM-9225-23-22 models
date
08/15/2016
07/27/2017
01/29/2018
The revision history provided is for informational purposes only and is believed to be accurate.
Headquarters
20050 SW 112th Ave.
Tualatin, OR 97062
800.275.4899
CUI offers a one (1) year limited warranty. Complete warranty information is listed on our website.
Fax 503.612.2383
cui.com
techsupport@cui.com
CUI reserves the right to make changes to the product at any time without notice. Information provided by CUI is believed to be accurate and reliable. However, no responsibility is
assumed by CUI for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical
component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to
affect its safety or effectiveness.
