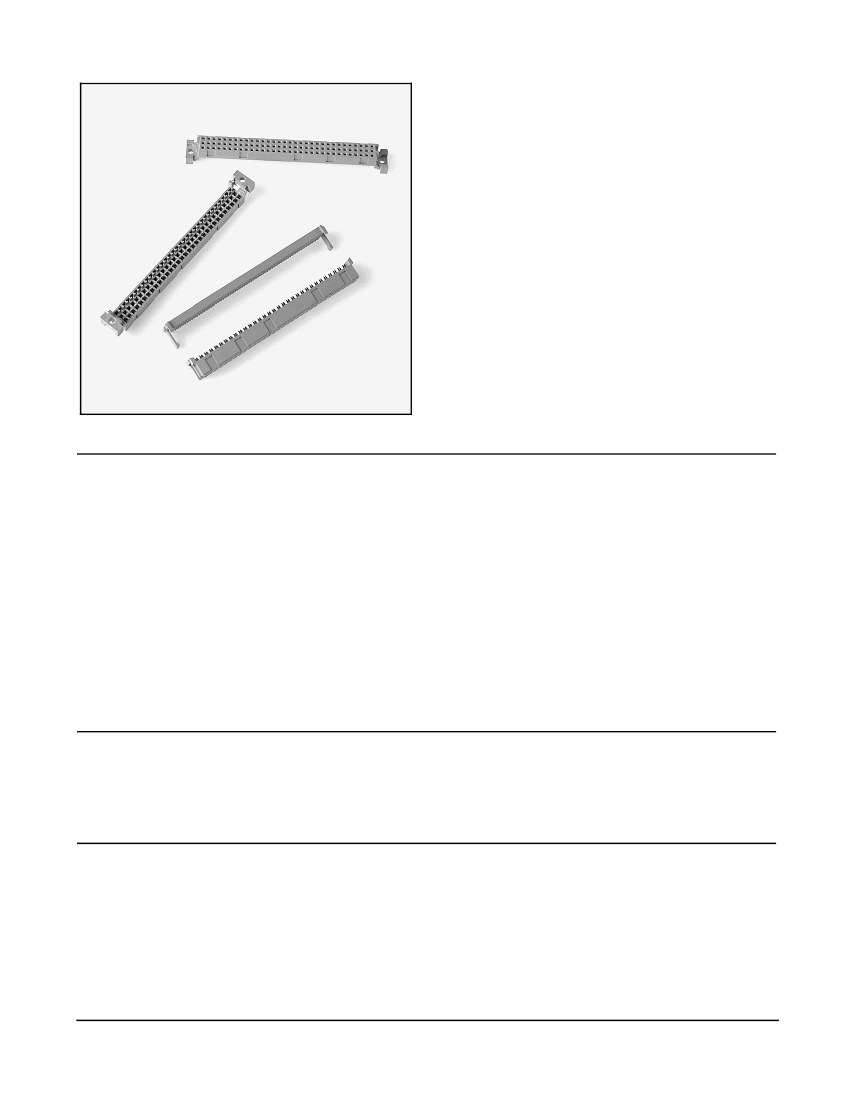

3M
™

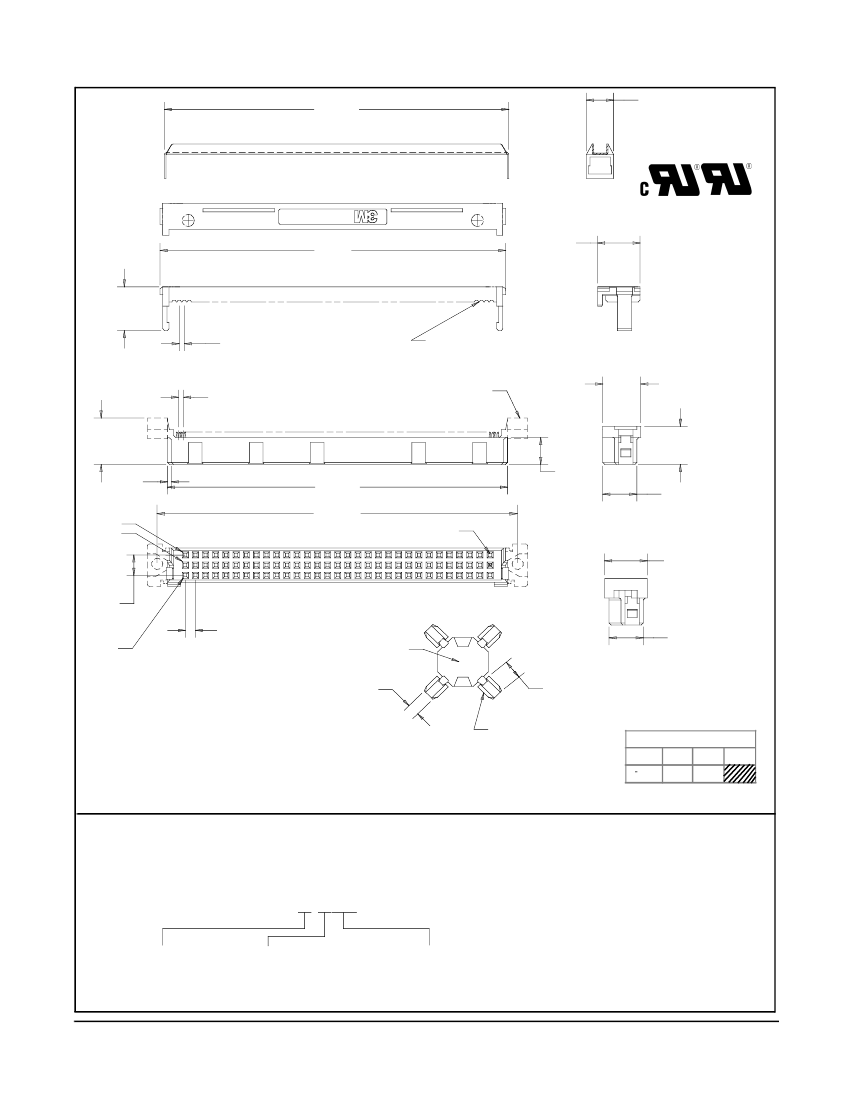

Eurosocket
Type C (Rows A & C or A, B & C Filled)
•
•
•
•
•
62CXX Series
DIN 41612 compatible
High density (64 & 96 position)
Mates with DIN 41612 Type C headers
High reliability contact design
Can be daisy-chained or end terminated to flat
cable
• Optional strain relief with handle
• Individual connector coding with 3435-1
keying plug
• See Regulatory Information Appendix (RIA)
for chemical compliance information
Date Modified: October 30, 2007
TS-0813-B
Sheet 1 of 4
Physical
Insulation
Material:
Glass Filled Polyester (PBT)
Flammability:
Color:
Contact
Material:
Plating:
Underplating:
Wiping Area:
Wire Accommodation:
UL 94V-0
Gray
Copper Alloy
50
μ″
[ 1.27
μm
] Nickel
10
μ″
[ 0.25
μm
] Gold
2 row version (A, C): Stranded or Solid: 26 & 28 AWG; Solid: 30 AWG
3 row version (A, B, C): Stranded or Solid: 30 AWG
Marking:
3M Logo, Part Identification, and Contact Position Numbers
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1
×
10
9
Ω
at 500 V
DC
Withstanding Voltage:
1000 V
RMS
at Sea Level
Environmental
Temperature Rating:
-55°C to +125°C
UL File No.: E68080
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Eurosocket
Type C (Rows A & C or A, B & C Filled)
86.10
[ 3.390 ]
62CXX Series
6.80
[ .268 ]
Material: Steel
86.4
[ 3.40 ]
10.60
[ .417 ]
10.95
[ .431 ]
1.27 Ref
[ .050 ]
Non-Conductive Transfer
Adhesive with Liner
1.27 Ref
[ .050 ]
11.60
[ .457 ]
Optional Mounting Flange
(See Order Information)
9.50
[ .374 ]
9.54
[ .376 ]
6.75
[ .266 ]
8.51
[ .335 ]
Position 32
Without Mounting
Flange
10.60
[ .417 ]
1.00
[ .039 ]
C1
B1
85.00
[ 3.346 ]
90.0
[ 3.54 ]
5.08
[ .200 ]
Ref
A1
2.54 [ .100 ] Ref
Break Off Tab
With Mounting
Flange
5.0
[ .20 ]
8.51
[ .335 ]
Keying Tab (4)
3435-1000
Keying Plug
(Optional: Order Separately)
Note:
1. Position B1 & C1 is terminated to the first conductor of the ribbon cable.
.0
mm
mm
[Inch]
Tolerance Unless Noted
.00
.000
± .3 ± .13
[ ] Dimensions for
Reference only
Ordering Information
Socket
62C64-1X0XXX
Row of Contacts:
1 = A and C
Mounting Flange Style:
0 = without
1 = with
Strain Relief
(Order Separately)
3448-6201
(RIA E1 & C1 apply)
Optional Plating:
EC = 30 µ" [0.76µm] Au over 50 µ"-150 µ"
[1.27 µm-3.80 µm] Ni (RIA E1 & C1 apply)
For-1X00XX
(no mtg flange)
version only
Assembly tools: 3M™ Press 3640 (or equivalent), 3M™ Locator Plate, 3443-117, 3M™ Platen 3442-9
TS-0813-B
Sheet 2 of 4
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Eurosocket
Type C (Rows A & C or A, B & C Filled)
86.10
[ 3.390 ]
62CXX Series
6.80
[ .268 ]
Material: Steel
86.4
[ 3.40 ]
10.60
[ .417 ]
10.95
[ .431 ]
.847 Ref
[ .033 ]
.847 Ref
[ .033 ]
11.60
[ .457 ]
6.75
[ .266 ]
Without Mounting
Flange
Position 32
10.60
[ .417 ]
Non-Conductive Transfer
Adhesive with Liner
Optional Mounting Flange
(See Order Information)
9.50
[ .374 ]
9.54
[ .376 ]
1.00
[ .039 ]
85.00
[ 3.346 ]
90.0
[ 3.54 ]
8.51
[ .335 ]
C1
5.08
[ .200 ]
Ref
A1
8.51
[ .335 ]
2.54 [ .100 ] Ref
Break Off Tab
With Mounting
Flange
5.0
[ .20 ]
mm
[Inch]
Tolerance Unless Noted
.0
mm
.00
.000
Keying Tab (4)
3435-1000
Keying Plug
(Optional: Order Separately)
Note:
1. Position C1 is terminated to the first conductor of the ribbon cable.
± .3 ± .13
[ ] Dimensions for
Reference only
Ordering Information
Socket
62C96-120XXX
Mounting Style:
0 = without Mounting Flange
1 = with Mounting Flange
Strain Relief
(Order Separately)
3448-6201
(RIA E1 & C1 apply)
Optional Plating:
EC = 30µ" [0.76µm] Au over 50µ"-150µ"
[1.27µm-3.80µm] Ni (RIA E1 & C1 apply)
For-1200XX
(no mtg flange)
version only
Assembly tools: 3M™ Press 3640 (or equivalent), 3M™ Locator Plate 3443-117, 3M™ Platen 3442-9
TS-0813-B
Sheet 3 of 4
3M
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
