PART NUMBER:
CMS0461KLX
DESCRIPTION:
speaker
SPECIFICATIONS
nominal size
impedance
resonant frequency
sound pressure level
response
input power
operation
buzz, rattle, etc.
magnet
load test
heat test
humidity test
46 x 46 x 22.8 mm
8 Ohm ± 15%
at
1 kHz 1 V
160 Hz ± 32 Hz
at
1V
88 dB/W ± 3 dB
1 W 50 cm ave. at 0.5 k, 0.6 k, 0.8 k, 1 k Hz
Fo Hz ~ 18 kHz max 10 dB
nominal
2W
handling capacity
4W
must be normal at program source 2 W
must be normal at sine wave 4 V
size: 18.5 x 4.5 mm
white noise
2W
for
24 hours
55 ± 2° C
20-50% R.H. 24 hours
40 ± 2° C
90-95% R.H. 24 hours

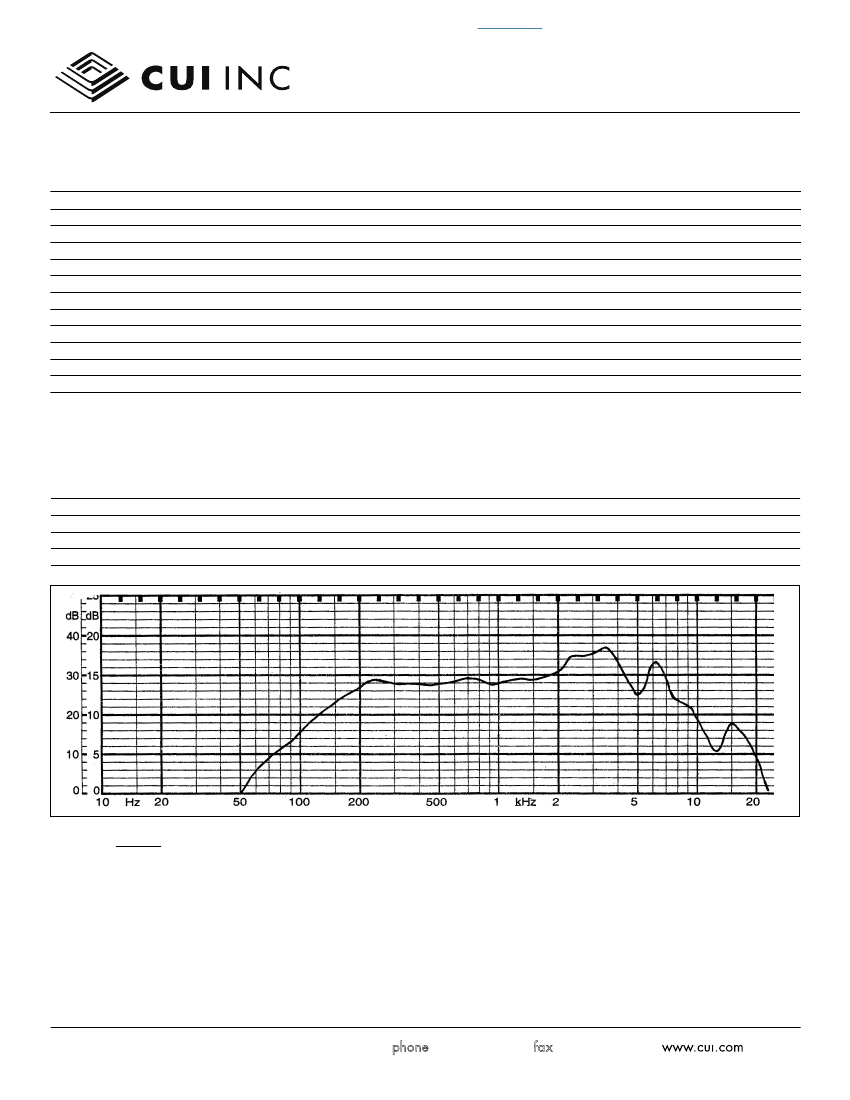

FREQUENCY RESPONSE CURVE
potentiometer range
rectifier
lower limit frequency
wr. speed
50 dB
RMS
20 Hz
100 mm/sec
zero level 60 dB
20050
SW
112
th
Ave. Tualatin, Oregon
97062
phone
503.612.2300
fax
503.612.2383
REV.
A
DESCRIPTION
NEW DRAWING
DATE
12/5/2008

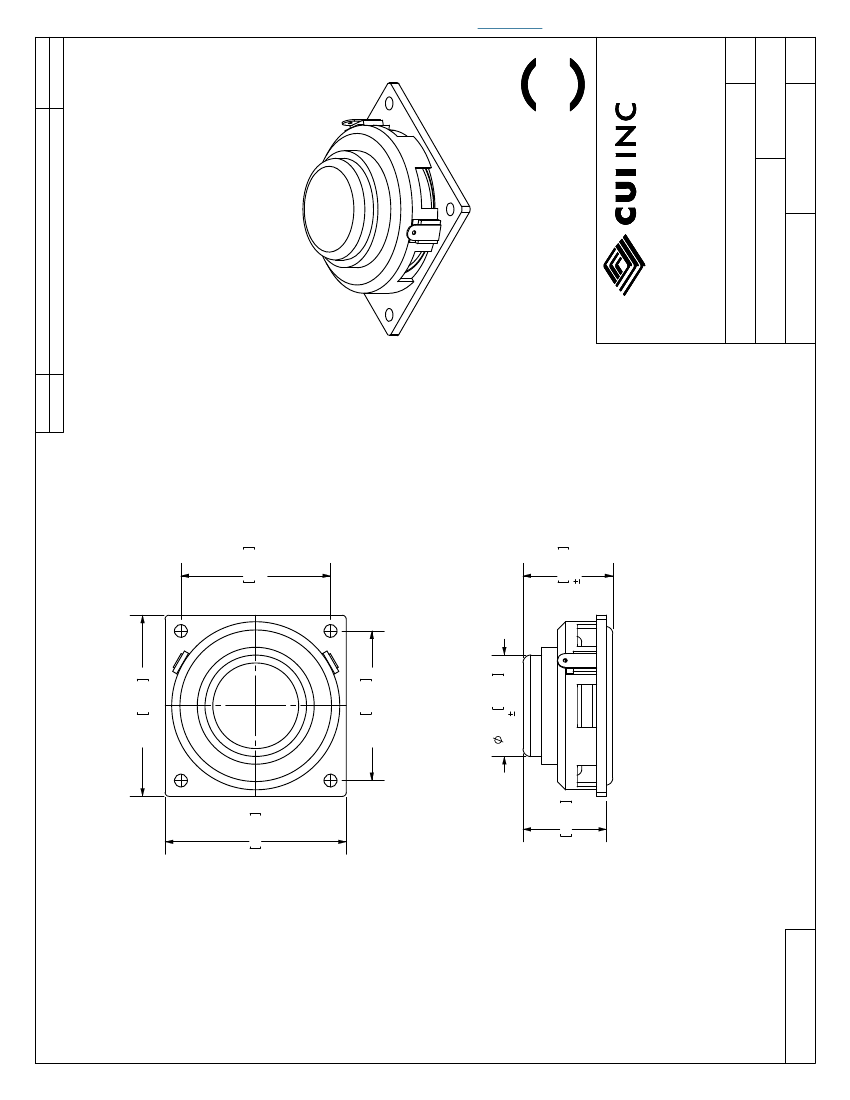

46.0 1.811
46.0 1.811
38.0 1.496
(2 PLCS)
38.0 1.496
(2 PLCS)
For more information, please visit the
product page.
25.8 1.016
0.2
21.2 0.835
22.8 0.898
0.5
TOLERANCE:
±0.3mm UNLESS OTHERWISE
SPECIFIED
RoHS
20050 SW 112th Ave.
Tualatin, OR 97062
Phone: 503-612-2300
800-275-4899
Fax: 503-612-2383
Website: www.cui.com
TITLE:
MINIATURE MONITOR SPEAKER
PART NO.
REV:
UNITS:
A
CMS0461KLX
DRAWN BY:
APPROVED BY:
MM [INCHES]
SCALE:
PC FILE NAME:
CMS0461KLX
