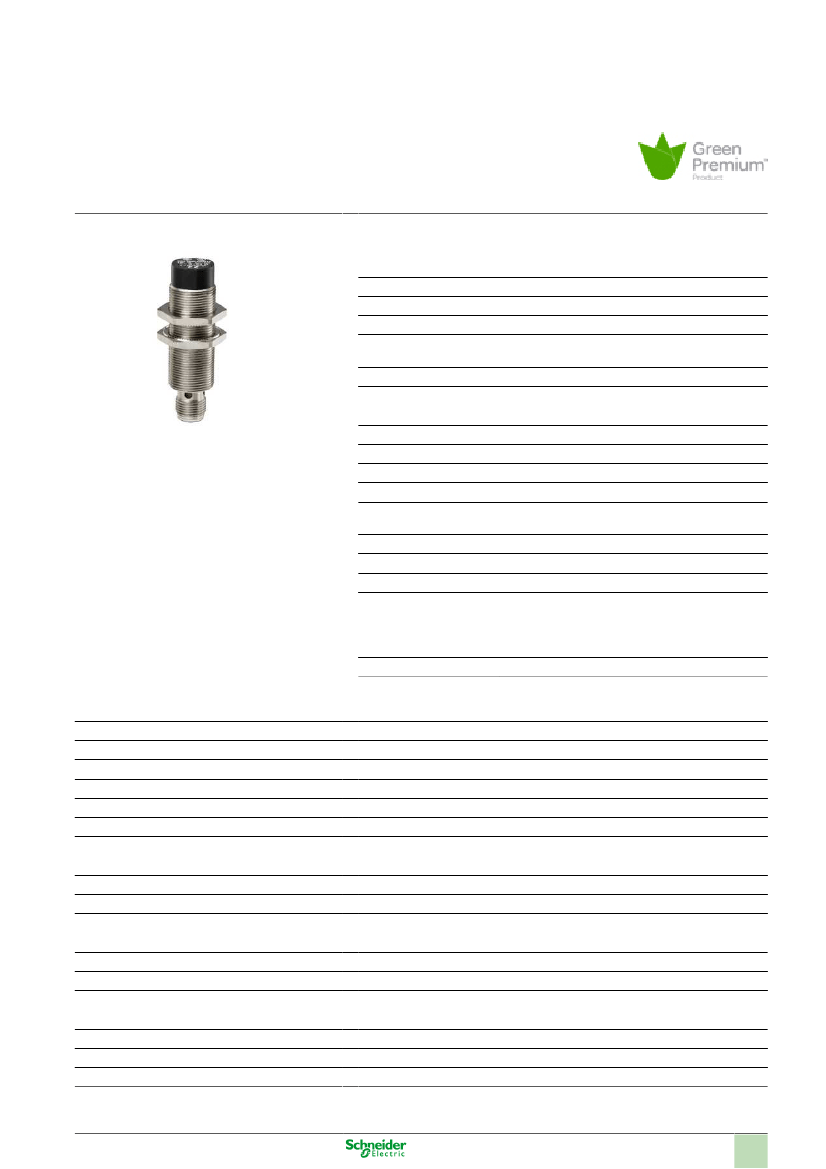

Product data sheet
Characteristics
XS118BLPAM12
inductive sensor XS1 M18 - L64mm - brass -
Sn5mm - 12..24VDC - M12
Product availability: Stock - Normally stocked in distribution facility
Main
Commercial Status
Range of product
Series name
Sensor type
Product specific
application
Sensor name
Sensor design
Size
Body type
Enclosure material
Type of output signal
Wiring technique
[Sn] nominal sensing
distance
Discrete output function
Discrete output type
Electrical connection
[Us] rated supply
voltage
Switching capacity in
mA
IP degree of protection
Commercialised
OsiSense XS
General purpose
Inductive proximity sensor
-
XS1
Cylindrical M18
64 mm
Fixed
Nickel plated brass
Discrete
3-wire
0.2 in (5 mm)
1 NO
PNP
4 pins M12 male connector
12...24 V DC with reverse polarity protection
<= 100 mA with overload and short-circuit protection
IP67 conforming to IEC 60529
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Complementary
ISO thread
Detection face
Detector flush mounting acceptance
Material
Front material
Differential travel
Output circuit type
Status LED
Supply voltage limits
Voltage drop
Current consumption
Delay first up
Delay response
Delay recovery
Marking
Threaded length
Height
Length
Product weight
M18 x 1
Frontal
Flush mountable
Metal
PPS
1...15% of Sr
DC
1 LED yellow for output state
10...36 V DC
<= 2 V at closed state
<= 10 mA at no-load
<= 5 ms
<= 1 ms
<= 2 ms
CE
49 mm
0.71 in (18 mm)
2.52 in (64 mm)
0.08 lb(US) (0.035 kg)
Feb 28, 2016
1
Environment
Product certifications
Ambient air temperature for operation
Ambient air temperature for storage
Vibration resistance
Shock resistance
CSA
UL
-13...158 °F (-25...70 °C)
-40...185 °F (-40...85 °C)
25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6
50 gn for 11 ms conforming to IEC 60068-2-27
Ordering and shipping details
Category
Discount Schedule
GTIN
Nbr. of units in pkg.
Package weight(Lbs)
Product availability
Returnability
Country of origin
21571 - SENSORS, ELECTRONIC BASIC XU & XS
DS2
00785901664680
1
0.15
Stock - Normally stocked in distribution facility
Y
ID
Offer Sustainability
Sustainable offer status
RoHS
REACh
Product environmental profile
Product end of life instructions
Green Premium product
Compliant - since 0903 -
Available
Available
Schneider Electric declaration of conformity
Reference not containing SVHC above the threshold
Download Product Environmental
Download End Of Life Manual
Contractual warranty
Period
18 months
