46015-1209

Description
Headers & Wire Housings MF+ HCS VERT HDR DR 12P V-0 DH PEG GLD
CategoryThe connector    The connector
File Size36KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

46015-1209 Online Shopping

Suppliers Part Number Price MOQ In stock
46015-1209 - - View Buy Now

46015-1209 Overview

Headers & Wire Housings MF+ HCS VERT HDR DR 12P V-0 DH PEG GLD

46015-1209 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
Factory Lead Time6 weeks
Samacsys DescriptionHeaders & Wire Housings MF+ HCS VERT HDR DR 12P V-0 DH PEG GLD
Board mount optionsSPLIT BOARD LOCK
Body/casing typePLUG
Connector typeRECTANGULAR POWER CONNECTOR
Contact arrangementS0P12
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Durability100 Cycles
Insulation resistance1000000000 Ω
insulator materialNYLON
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.14 inch
Termination typeSOLDER
Total number of contacts12

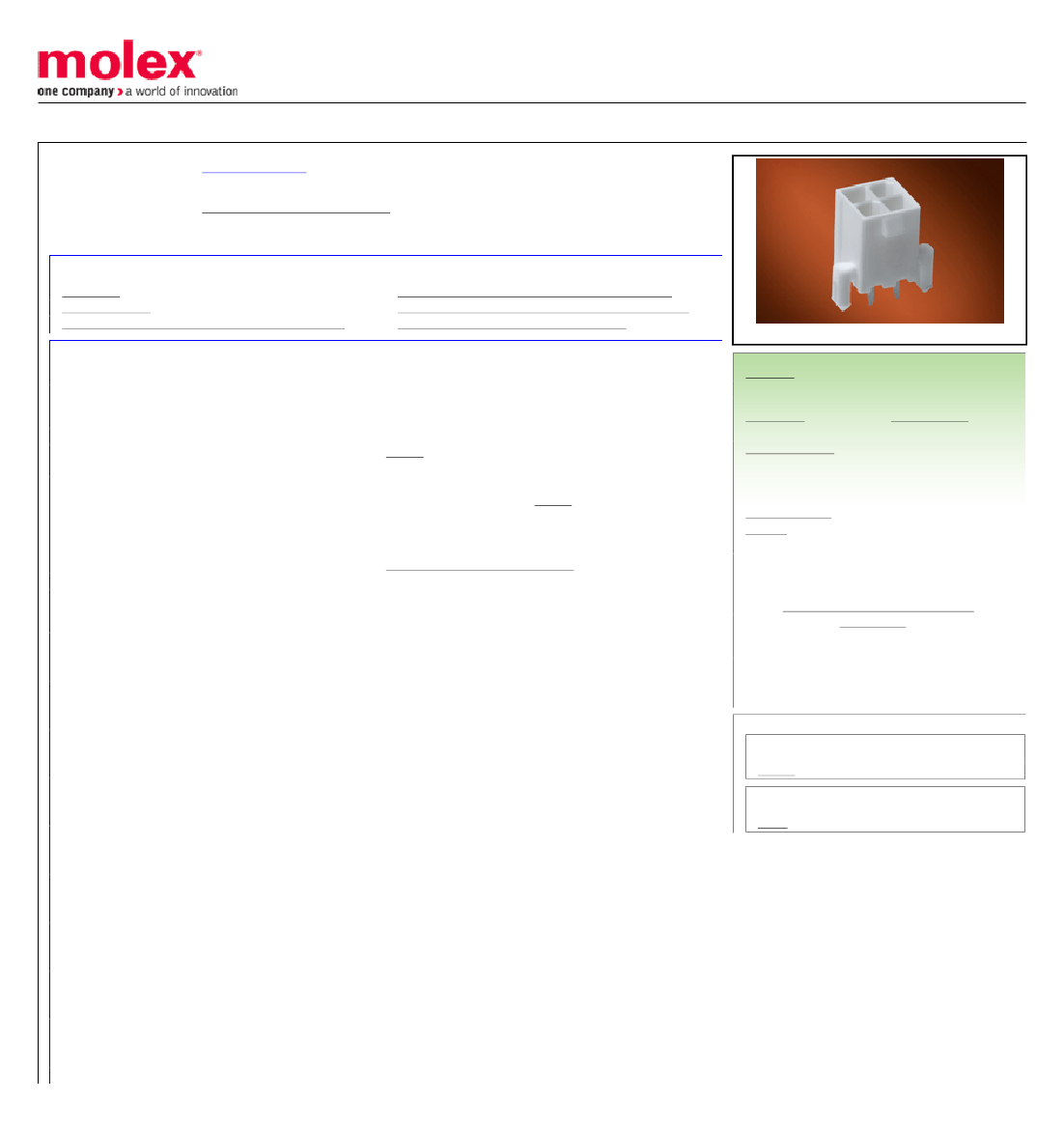

This document was generated on 03/01/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0460151209
Active
Mini-Fit Plus Connector System
Mini-Fit Plus Header, Dual Row, Vertical, 12 Circuits, with Snap-in Plastic Peg PCB
Lock, PA Polyamide Nylon 6/6, UL 94V-0, 0.76µm Gold (Au) Selective Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-45750-001-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application
Comments
Product Specification TS-5566-002-001 (PDF)
Packaging Specification PK-5566-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
LR19980
E29179
PCB Headers
46015
Power, Wire-to-Board
Current = 13A max. per circuit when header is mated to
a receptacle loaded with 45750 Mini-Fit Plus HCS Crimp
Terminal Crimped to 16 AWG wire., See Molex product
specification PS-45750-001 for additional current de-
rating information.
Mini-Fit Plus Connector System
Mini-Fit Plus
883906712754
No
12
12
Natural
100
No
94V-0
No
No
None
Yes
Copper Alloy
Gold
Tin
Nylon
2.744/g
2
Vertical
1.80mm
Yes
Yes
1.78mm
Tray
4.20mm
0.762µm
2.540µm
Yes
Yes
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Capable
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Search Parts in this Series
46015 Series
Mates With
5557 Mini-Fit Jr. Receptacle Housing
