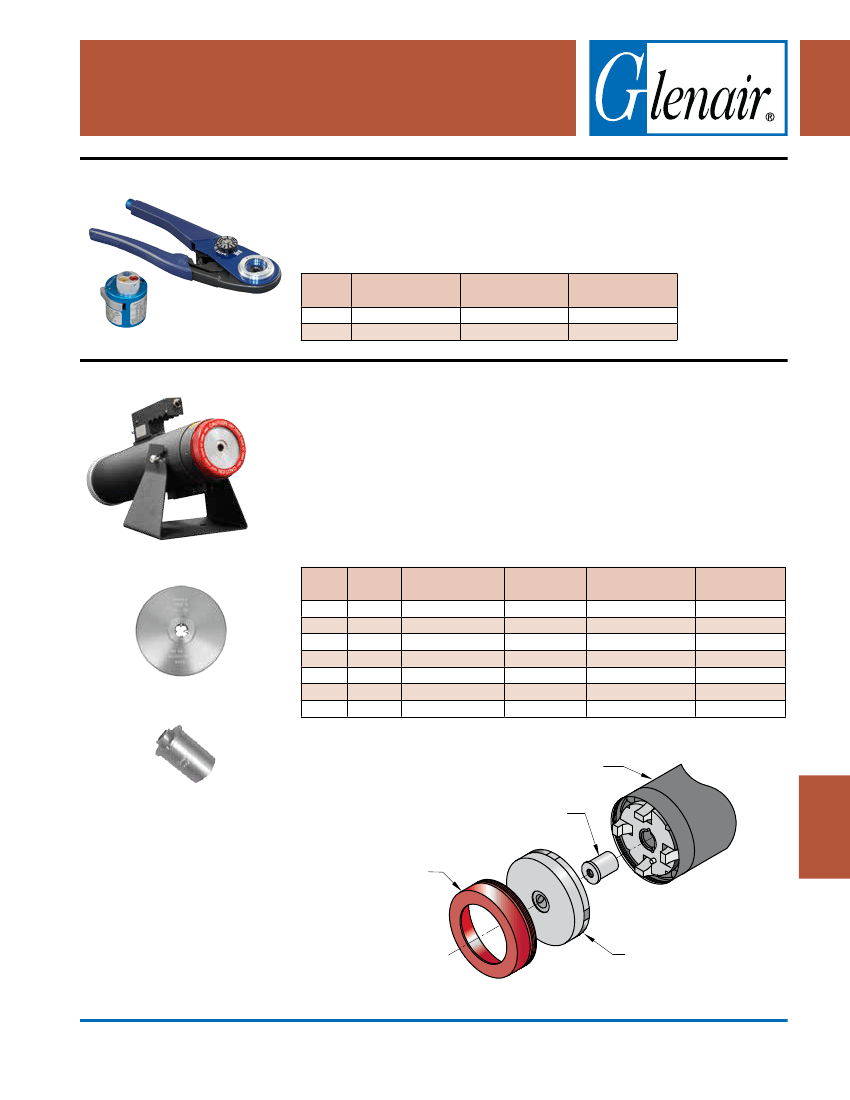

Series 970 PowerTrip™ Connectors and Accessories

Contacts and Tools

Crimp Tools

HAND CRIMP TOOL AND POSITIONER FOR #12 AND #16 CONTACTS

Crimp tool for use with size #16 and #12

Series 970 pin and socket contacts. Use

with turret-type positioner 859-032. 9.75

inches OAL, 1.25 pounds.

Military Part

Number

M22520/1-01

M22520/1-02

Positioner for use with size #12 and #16

contacts. Rotate turret head to blue

position for #16 contact termination, yellow

position for #12 contacts.

Daniels Part

Number

AF8

TH1A

Figure

Part Number

809-136

859-032

PNEUMATIC CRIMP TOOL FOR #8, #4 AND #1/0 CONTACTS

B e n c h m o u nt p n e u m at i c c r i m p

tool. Heavy duty, four-indent crimp

termination. Attach to air supply with quick-

disconnect fitting or install 1/4 NPT fitting into

tapped port. 90-120 psi air supply. Requires

die assemblies and locators, sold separately.

Hand actuate with push-button valve trigger

on handle. Steel with black wrinkle enamel

coating. 13 inches overall length, 9.2 inches

tall, 17 pounds (7.7 Kg).

Figure

Contact

Size

—

1/0

Description

Pneumatic Crimper

Die Assembly

Locator

Indenter Die Assembly. Precision four-

indent die with hardened tool steel

indenters, stainless steel housing. Separate

die assembly required for each contact size.

Locator. Aluminum locator positions

contact at correct depth for crimping.

Separate locator required for each contact size.

Part Number

859-025

859-026

859-027

859-028

859-029

859-030

859-031

Military Part

Number

M22520/23-01

M22520/23-02

M22520/23-04

M22520/23-05

M22520/23-09

M22520/23-11

M22520/23-13

Daniels Part

Number

WA23

WA23-2

WA23-4

WA23-5

WA23-9

WA23-11

WA23-13

COVER

SUPPLIED WITH

PNEUMATIC TOOL

859-025

INDENTER DIE

ASSEMBLY

859-026 (SIZE 8)

859-027 (SIZE 4)

859-028 (SIZE 1/0)

Series 970 PowerTrip™

CAGE Code 06324

PNEUMATIC

TOOL

859-025

LOCATOR

859-029 (SIZE 8)

859-030 (SIZE 4)

859-031 (SIZE 1/0)

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com
