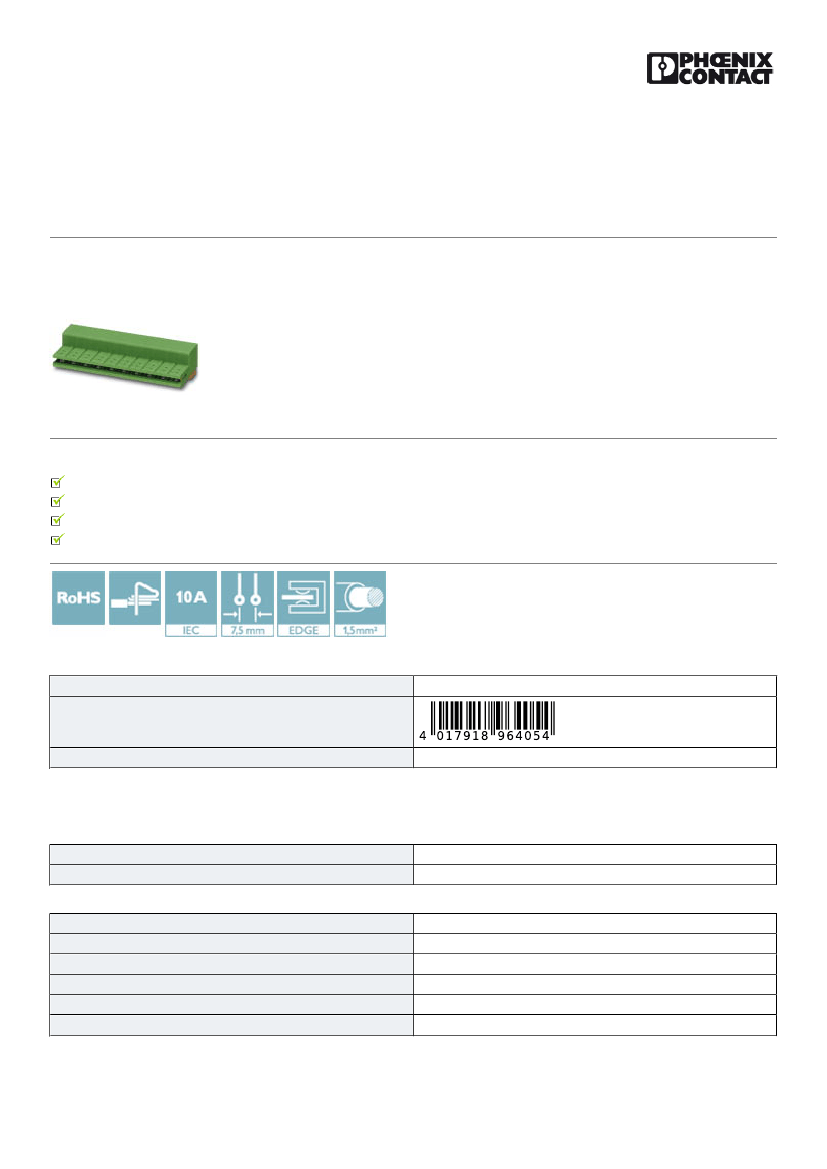

Printed-circuit board connector - ZEC 1,5/ 4-ST-7,5C1,2
R1,4NZX4 - 1998195
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB direct plug, nominal current: 10 A, number of positions: 4, pitch: 7.5 mm, connection method: Spring-
cage connection, color: green, contact surface: Tin, mounting: Direct plug-in method
The figure shows an 10-position
version
Your advantages
Defined contact force ensures that contact remains stable over the long term
Inexpensive direct plug-in connection with just one component
Clamping space opened by means of fixed screwdriver enables convenient conductor connection
Plug-in direction parallel to the PCB
Key Commercial Data
Packing unit
GTIN
GTIN
4017918964054
50 pc
Technical data
Dimensions
Pitch
Dimension a
7.5 mm
22.5 mm
General
Range of articles
Number of positions
Connection method
Rated voltage (III/3)
Connection in acc. with standard
Nominal current I
N
ZEC 1,5/..-ST
4
Spring-cage connection
400 V
EN-VDE
10 A
11/07/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1998195
Printed-circuit board connector - ZEC 1,5/ 4-ST-7,5C1,2
R1,4NZX4 - 1998195
Technical data
General
Nominal cross section
1.5 mm²
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
0.25 mm²
1.5 mm²
24
16
0.5 mm²
0.5 mm²
26
14
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Approvals
Approvals
Approvals
CCA / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
11/07/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1998195
Printed-circuit board connector - ZEC 1,5/ 4-ST-7,5C1,2
R1,4NZX4 - 1998195
Approvals
CCA
Nominal voltage UN
Nominal current IN
1000 V
10 A
DE1 34215
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
http://www.iecee.org/
DE1-51128
1000 V
10 A
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
400 V
10 A
0.2-1.5
40020343
EAC
D
300 V
10 A
26-14
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19941110
B
300 V
10 A
26-14
