1786345 Overview

Pluggable Terminal Blocks CCV 2,5/ 3-GSF- 5,08GNP26THRR56

1786345 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	PHOENIX CONTACT
Product Category	Pluggable Terminal Blocks
Shipping Restrictions	Mouser does not presently sell this product in your region.
Product	Headers
Number of Positions	3 Position
Pitch	5.08 mm
Factory Pack Quantity	140
Unit Weight	0.241168 oz

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/hq/products/1786345

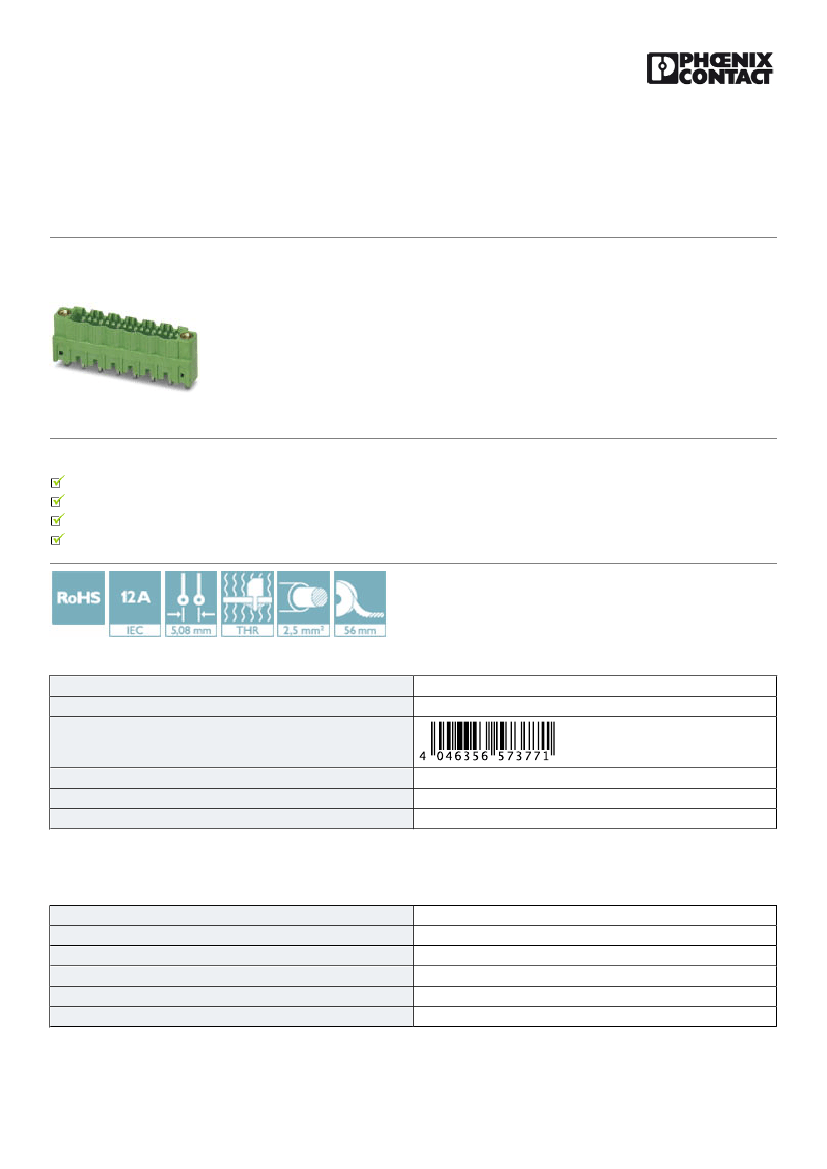

Printed-circuit board connector - CCV 2,5/ 3-

GSF-5,08GNP26THRR56 - 1786345

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Header, Nominal current: 12 A, Number of positions: 3, Pitch: 5.08 mm, Color: green, Contact surface: Tin,

Mounting: THR soldering

The figure shows a 10-position

version of the product

Why buy this product

Designed for integration into the SMT soldering process

Vertical connection enables multi-row arrangement on the PCB

Screwable flange for superior mechanical stability

Maximum flexibility when it comes to device design – one header for connectors with different connection technologies

Key Commercial Data

Packing unit

Minimum order quantity

GTIN

Custom tariff number

Note

4046356573771

85366990

Made to Order (non-returnable)

140 STK

Technical data

Dimensions

Length

Pitch

Dimension a

Constructional height

Height

Length of the solder pin

8.6 mm

5.08 mm

10.16 mm

13 mm

12 mm

2.6 mm

11/14/2016 Page 1 / 2
