CLD-DS52 Rev 3I
Product family data sheet
Cree
®
XLamp
®
XQ-D LED
PRODUCT DESCRIPTION
Cree XLamp
®
XQ-D LeDs revolutionize
low-cost, high-power LeDs by delivering
lighting-class reliability and a wider
spread of light than typical plastic
packages.
The
XQ-D’s
innovative
wide light emission can improve the
omnidirectionality of replacement lamps,
while also reducing system cost by using
fewer LeDs.
Using Cree’s newest generation of
silicon carbide-based LeD chips, XQ-D is
optimized to dramatically lower system
cost in replacement lamp, non-directional
and outdoor area lighting applications.
FEATURES
•
Cree’s smallest lighting class LeD:
1.6 X 1.6 X 1.6 mm
•
Available in white, 80-minimum CRI
white, and 70-minimum CRI cool
white
• Binned at 25 °C
• 700 mA maximum drive current
• Low thermal resistance: 7.5 °C/W
• Wide viewing angle: 145°
• Reflow solderable - JEDEC
J-STD-020C compatible
• Unlimited floor life at ≤ 30 °C/85% RH
• RoHS and REACh compliant
•
UL
®
recognized component
(E349212)
TAbLE OF CONTENTS
Characteristics ....................................... 2
Flux Characteristics
............................... 3
Relative Spectral Power Distribution ....
4
Relative Flux vs. Junction
Temperature ...........................................
4
electrical Characteristics ....................... 5
Relative Flux vs. Current
........................ 5
Typical Spatial Distribution.................... 6
Thermal Design ...................................... 6
Reflow Soldering Characteristics
.......... 7
Notes ...................................................... 8
Mechanical Dimensions ...................... 10
Tape and Reel ....................................... 11
Packaging ............................................. 12
www.CRee.Com/XLAmp
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are
registered trademarks and the Cree logo is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
XLamp
®
XQ-D LED
ChARACTERISTICS
Characteristics
Thermal resistance, junction to solder point
Viewing angle (FWHM)
Temperature coefficient of voltage
ESD classification (HBM per Mil-Std-883D)
DC forward current
Reverse voltage
Forward voltage (@ 350 mA, 25 °C)
LeD junction temperature
mA
v
v
°C
3.1
Unit
°C/W
degrees
mV/°C
Minimum
Typical
7.5
145
-3
Class 1
350
700
-5
3.5
150
Maximum
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
2
XLamp
®
XQ-D LED
FLUX ChARACTERISTICS (T
J
= 25 °C)
The following table provides several base order codes for XLamp XQ-D LeDs. It is important to note that the base order codes listed here
are a subset of the total available order codes for the product family. For more order codes, as well as a complete description of the order-
code nomenclature, please consult the XLamp XQ LeD Family Binning and Labeling document.
Calculated
Minimum
Luminous Flux
(lm)*
700 mA
227
213
199
227
213
199
213
199
187
172
164
153
172
164
153
XQDAWT-00-0000-00000LG51
XQDAWT-00-0000-00000LF51
XQDAWT-00-0000-00000LE51
XQDAWT-00-0000-00000BG51
XQDAWT-00-0000-00000BF51
XQDAWT-00-0000-00000BE51
XQDAWT-00-0000-00000BFE5
XQDAWT-00-0000-00000BEE5
XQDAWT-00-0000-00000LDE5
XQDAWT-00-0000-00000HCE7
XQDAWT-00-0000-00000HBE7
XQDAWT-00-0000-00000HAE7
XQDAWT-00-0000-00000LCE7
XQDAWT-00-0000-00000LBE7
XQDAWT-00-0000-00000LAE7
Color
CCT Range
Minimum Luminous Flux
@ 350 mA
Group
R4
Flux (lm)
130
122
114
130
122
114
122
114
107
100
93.9
87.4
100
93.9
87.4
Order Code
Min.
Max.
Cool White
5000 K
8300 K
R3
R2
R4
70 CRI Minimum
Cool White
5000 K
8300 K
R3
R2
R3
Neutral White
3700 K
5000 K
R2
Q5
Q4
80 CRI Minimum
White
2600 K
4300 K
Q3
Q2
Q4
Warm White
2600 K
3700 K
Q3
Q2
Notes:
• Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and ±2 on CRI
measurements. See the Measurements section (page 8).
• Typical CRI for Neutral White, 3700 K - 5000K CCT is 75.
• Typical CRI for Warm White, 2600 K - 3700 K CCT is 80.
• Minimum CRI for 70 CRI Minimum Cool White is 70.
• Minimum CRI for 80 CRI Minimum White is 80.
*
Calculated flux values at 700 mA are for reference only.
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
3
XLamp
®
XQ-D LED

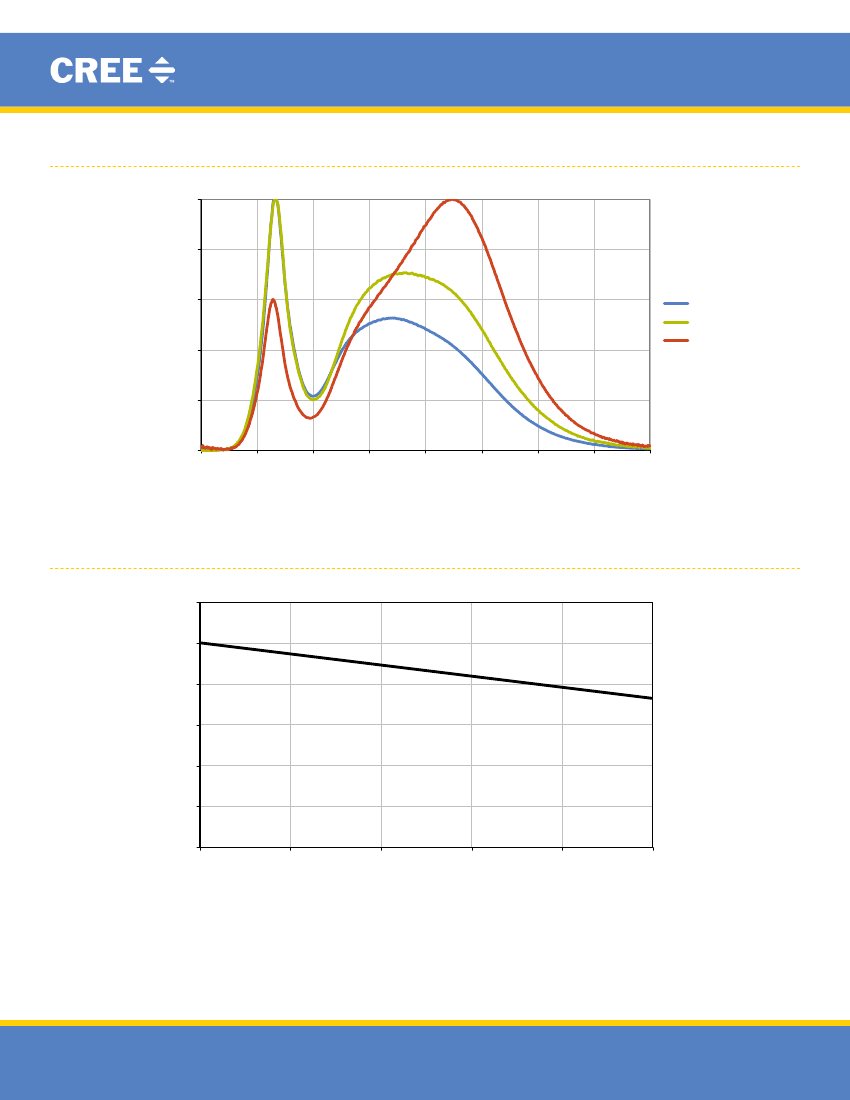

Relative Spectral Power
RELATIvE SPECTRAL POwER DISTRIbUTION
100%
Relative Radiant Power (%)
80%
60%
Cool White
Neutral White
Warm White
40%
20%
0%
380
430
480
530
580
630
680
730
780
Wavelength (nm)
Relative Flux Output vs. Junction Temperature
RELATIvE FLUX vS. JUNCTION TEMPERATURE (I
F
= 350 mA)
120%
100%
Relative Luminous Flux
80%
60%
40%
20%
0%
25
50
75
100
125
150
Junction Temperature (ºC)
Copyright © 2013-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
4
XLamp
®
XQ-D LED
Electrical Characteristics (Tj = 85ºC)
ELECTRICAL ChARACTERISTICS (T
J
= 25 °C)
700
600
500
400
300
200
100
0
Forward Current (mA)
Relative Intensity vs. Current
Forward Voltage (V)
(Tj = 85ºC)
RELATIvE FLUX vS. CURRENT (T
J
= 25 °C)
180%
160%
2.5
2.6
2.7
2.8
2.9
3.0
3.1
3.2
3.3
Relative Luminous Flux (%)
140%
120%
100%
80%
60%
40%
20%
0%
0
100
200
300
400
500
600
700
Forward Current (mA)
