FMC-HDMI™ Reference Manual
Revised September 3, 2014
This manual applies to the FMC-HDMI rev. D
Overview
The FPGA Mezzanine Card High-Definition Multimedia Interface (FMC-HDMI) peripheral board enables developers
to add HDMI input ports to field-programmable gate array (FPGA) based systems. The FMC-HDMI provides a
development platform for customers to utilize high-definition image capturing for use with image processing
applications.
Features include:
•
•
•
•
•
•
(2x) HDMI Type A Receptacles
HDMI Receiver (ADV7611)
HDMI Buffer (AD8195)
On-board EDID EEPROM
Male FMC LPC connector for digital signals
Compatible with a wide range of VADJ voltages (1.8V – 3.3V)

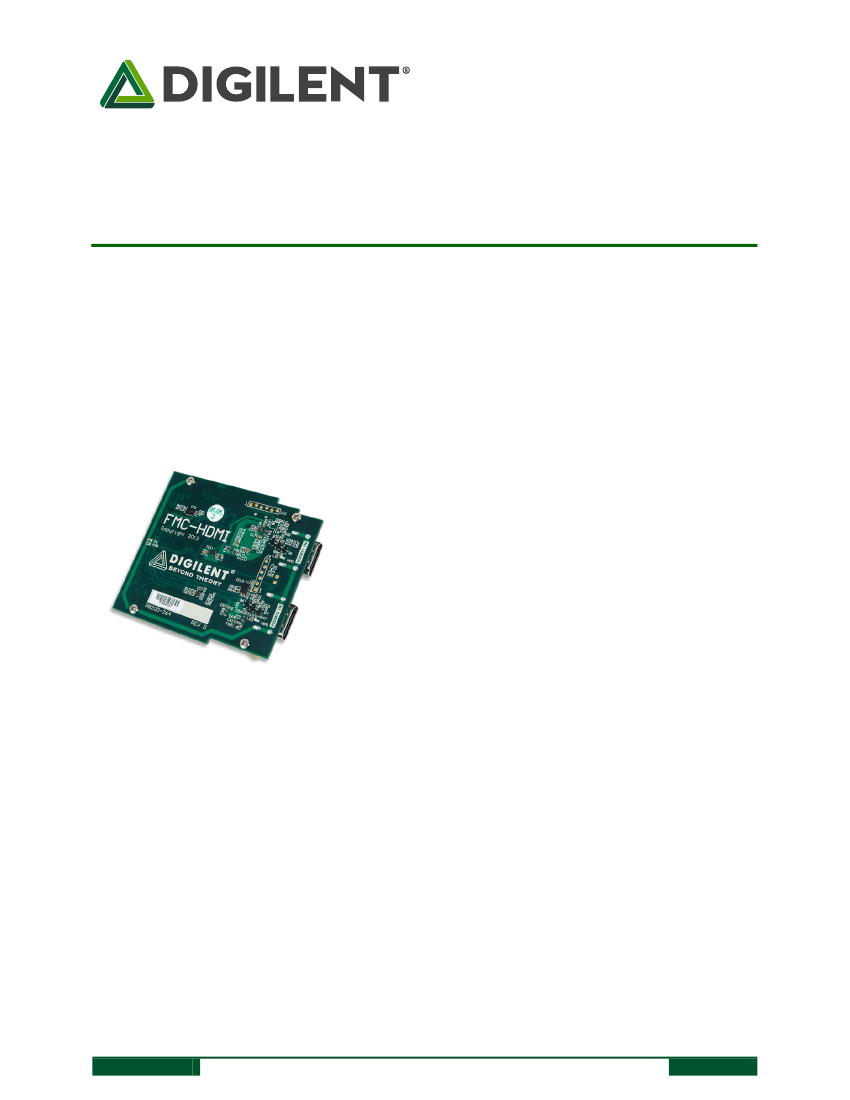

The FMC-HDMI.
1
Functional Description
The FMC-HDMI card contains two HDMI input ports. The first port, HDMI1, contains an ADI ADV7611 Receiver and
outputs a decoded, level translated digital video signal to the FMC connector. The second port, HDMI2, contains an
ADI AD8195 Buffer and outputs an HDMI-encoded signal to the FMC connector, leaving the system board to
decode the signal (either in the FPGA or an external receiver).
The appropriateness of the HDMI port depends entirely on the application. For instance, although HDMI2 does not
decode the signal, it outputs to a smaller number of pins (14 instead of 36), which is useful in designs with limited
input availability. Since the decoding must be done on the connected system board, the circuitry must support
HDMI-type signaling that is TMDS. For example, Xilinx® FPGA families support the TMDS_33 input standard in 3.3V-
powered I/O banks.
DOC#: 502-264
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Page
1
of
4
FMC-HDMI™ Reference Manual
1.1
HDMI1: Analog Devices ADV7611 Receiver
An Analog Devices ADV7611 Receiver decodes the signal on HDMI1. This low power, 165 MHz receiver supports
formats up to UXGA 60Hz at 8 bit at 161 MHz. It has been tested at WUXGA (1080p) 60Hz at 148.5 MHz. The
2
receiver provides an audio output port for audio extracted from the HDMI signal in the following formats: I S,
S/PDIF, and Direct Stream Transfer (DST). It also features an advanced mute controller.
The ADV7611 Receiver contains several other features, such as a CEC 1.4-compatible controller for consumer
device remote control and discovery and EDID (Extended Display Identification Data) RAM.
Note: For more information on the ADV7611, see ADI datasheets and User Guide available online at:
http://www.analog.com/ADV7611
Below are the pin-outs from the ADV7611 Receiver and other HDMI1 port signals to the FMC connector:
FMC Pin
LA19_P
LA20_N
LA20_P
LA15_N
LA14_N
LA15_P
LA16_N
LA16_P
LA11_N
LA14_P
LA11_P
LA12_N
LA12_P
LA07_N
LA08_N
LA07_P
LA08_P
LA04_N
HDMI1 Function
HDMI1_P0
HDMI1_P1
HDMI1_P2
HDMI1_P3
HDMI1_P4
HDMI1_P5
HDMI1_P6
HDMI1_P7
HDMI1_P8
HDMI1_P9
HDMI1_P10
HDMI1_P11
HDMI1_P12
HDMI1_P13
HDMI1_P14
HDMI1_P15
HDMI1_P16
HDMI1_P17
FMC Pin
LA04_P
LA03_N
LA03_P
LA02_N
LA02_P
LA00_N_CC
LA18_P_CC
LA21_P
LA17_P_CC
LA23_N
LA22_P
LA19_N
LA22_N
LA00_P_CC
LA25_P
LA21_N
LA23_P
LA25_N
HDMI1 Function
HDMI1_P18
HDMI1_P19
HDMI1_P20
HDMI1_P21
HDMI1_P22
HDMI1_P23
HDMI1_SCLK
HDMI1_LRCLK
HDMI1_MCLK
HDMI1_AP
HDMI1_VS
HDMI1_HS
HDMI1_DE
HDMI1_LLC
HDMI1_SDA
HDMI1_SCL
HDMI1_RESETN
HDMI1_INT1
Table 1. HDMI1-FMC pin mapping.
The ADV7611 is configured and controlled via an I C interface, which is accessible through the HDMI1SDA and
HDMI1SCL pins on the FMC connector. The ADV7611 User Guide specifically describes the different registers and
commands necessary to control the Receiver.
There are level translators present on all audio and video signals, which can level shift to 1.8V, 2.5V, and 3.3V. The
desired level is set by the VADJ voltage level.
2
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Page
2
of
4
FMC-HDMI™ Reference Manual
1.2
HDMI2: Analog Devices AD8195 Buffer
The AD8195 is an HDMI buffer with equalized TMDS inputs and optionally pre-emphasized TMDS outputs. The
AD8195 includes bidirectional buffering for the DDC bus and bidirectional buffering with integrated pull-up
resistors for the CEC bus. The DDC and CEC buffers are powered independently of the TMDS buffers so that
DDC/CEC functionality can be maintained when the system is powered off.
An on-board pre-programmed EEPROM is connected to the DDC (Display Data Channel) bus of the HDMI2 port.
The following EDID (Extended Display Identification Data) is programmed in the factory:
00
0
0
1
0
2
0
3
0
4
0
5
0
6
0
7
0
0x0
0
0xFF
0x0
A
0x0
1
0x5
5
0x6
9
0x0
0
0x0
0
01
0xFF
0x1
6
0x5
0
0x0
1
0x0
0
0x6
C
0x0
0
0x0
0
02
0xFF
0x0
1
0x5
4
0x0
1
0x0
0
0x6
5
0x0
0
0x0
0
03
0xFF
0x03
0xBF
0x01
0xD
0
0x6E
0x00
0x00
04
0xF
F
0x8
1
0xE
F
0x0
1
0x5
2
0x7
4
0x0
0
0x0
0
05
0xF
F
0x3
3
0x8
0
0x0
1
0x0
0
0x2
0
0x0
0
0x0
0
06
0xFF
0x1
D
0x01
0x01
0x00
0x48
0x00
0x00
07
0x00
0x78
0x01
0x1
D
0x1E
0x44
0x00
0x00
08
0x10
0x02
0x01
0x00
0x00
0x4
D
0x00
0x00
09
0xE
C
0x0
1
0x0
1
0x7
2
0x0
0
0x4
9
0x0
0
0x0
0
0A
0x0
0
0xF
1
0x0
1
0x5
1
0x0
0
0x0
0
0x0
0
0x0
0
0B
0x01
0xA
2
0x01
0xD
0
0xFC
0x00
0x00
0x00
0C
0x0
0
0x5
7
0x0
1
0x1
E
0x0
0
0x0
0
0x0
0
0x0
0
0D
0x0
0
0x5
2
0x0
1
0x2
0
0x4
4
0x1
0
0x0
0
0x0
0
0E
0x0
0
0x9
F
0x0
1
0x6
E
0x6
9
0x0
0
0x0
0
0x0
0
0F
0x0
0
0x2
7
0x0
1
0x2
8
0x6
7
0x0
0
0x1
0
0x0
E
Table 2. EEPROM pre-programmed content.
The EEPROM can be freely re-written through the J4 header holes and 6-pin Pmod cable. During EEPROM
programming, power to the EEPROM is provided by pin 6 of J4, so make sure there is no HDMI cable plugged in at
the same time.
Below are the pin-outs from the AD8195 Buffer and other HDMI2 port signals to the FMC connector:
FMC Pin
LA06_P
LA06_N
LA05_P
LA05_N
LA10_P
LA10_N
LA01_P_CC
HDMI2 Function
HDMI2_D0_P
HDMI2_D0_N
HDMI2_D1_P
HDMI2_D1_N
HDMI2_D2_P
HDMI2_D2_N
HDMI2_CLK_P
FMC Pin
LA01_N_CC
LA13_P
LA13_N
LA09_P
LA09_N
LA17_N_CC
LA18_N_CC
HDMI2 Function
HDMI2_CLK_N
HDMI2_SCL
HDMI2_SDA
HDMI2_PE_EN
HDMI2_TX_EN
HDMI2_HPA
HDMI2_CEC_OUT
Table 3. HDMI2-FMC pin mapping.
WARNING: VADJ must be 3.3V to properly use the buffer on HDMI2. The TX_EN pin is held low by default, so the
buffer is disabled on power-up. With the buffer disabled, VADJ can be in the range of (1.8V-3.3V).
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Page
3
of
4
FMC-HDMI™ Reference Manual
Note: For more information on the AD8195, see ADI datasheets available online at
http://www.analog.com/AD8195
1.3
FMC Support
The FMC-HDMI uses a Samtec ASP-134604-01 low pin-count male connector as the main connector for digital
signals. The board fully conforms to the VITA 57.1 specs. The connector supports the full range of 1.8V-3.3V bank
supply voltages (VADJ).
The EEPROM with designator IC2 (see board schematic) serves as the IPMI EEPROM, providing hardware definition
information. For more information, consult the VITA 57.1 specs.
Copyright Digilent, Inc. All rights reserved.
Other product and company names mentioned may be trademarks of their respective owners.
Page
4
of
4
