BTB10-GM-485

Description
Daughter Cards & OEM Boards 10 position breakout terminal block Gadgeteer module
CategoryDevelopment board/suite/development tools
File Size498KB,1 Pages
ManufacturerGHI Electronics
Environmental Compliance
Download Datasheet Parametric View All

BTB10-GM-485 Online Shopping

Suppliers Part Number Price MOQ In stock
BTB10-GM-485 - - View Buy Now

BTB10-GM-485 Overview

Daughter Cards & OEM Boards 10 position breakout terminal block Gadgeteer module

BTB10-GM-485 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerGHI Electronics
Product CategoryDaughter Cards & OEM Boards
RoHSDetails
ProductBreakout Boards
For Use With.NET Gadgeteer Mainboards
Description/FunctionBreakout TB10 module
Dimensions47 mm x 19.3 mm x 12.4 mm
Operating Supply Voltage3.3 V, 5 V
Factory Pack Quantity1
Tool Is For Evaluation Of.NET Gadgeteer
8
7
6
5
4
3
2
1
40
D
D
19
C
C
47
B
10.79
B
A

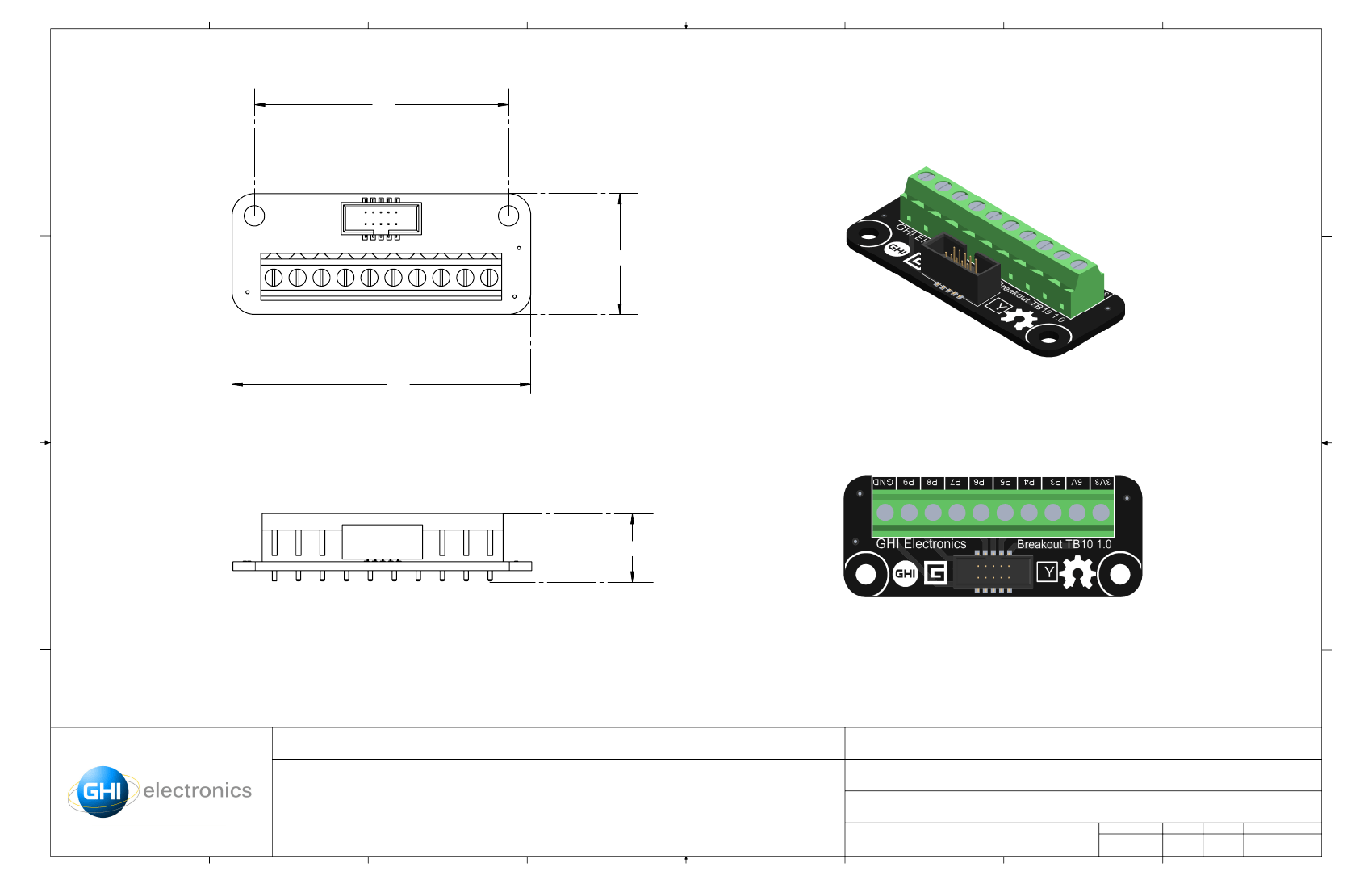

ENGINEERING NOTES:
SCREW HOLE DIAMETERS ARE 3.2MM, COMPLIANT WITH THE GADETEER STANDARD.
HOLE SPACING IS BASED ON A 5MM GRID
ALL DIMENSIONS ARE ± 0.5MM.
8
7
6
5
4
Breakout TB10 Module
GHI ELECTRONICS LLC
July 29, 2013
www.ghielectronics.com
3
2
SCALE
DIM
REV
SHEET
A
2:1
MM
1.0
1
1 of 1
