PANDUIT P/N
WEIGHT
.52 LB/10 PCS
(234.0 g/10 PCS)
THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.
2.75
69.8
UICFP6**
.28
7.0
B
4.50
114.3
3.28
83.3
NOTES:
1. SEE CURRENT CATALOG FOR ADDITIONAL
PART NUMBER SUFFIXES TO INDICATE
COLOR AND OR PACKAGE QUANTITY.
2. SEE CATALOG FOR COMPLETE LIST OF
PARTS APPLICABLE FOR USE WITH THIS
PART.
3. DIMENSIONS IN PARENTHESES ARE IN
METRIC.
4. PART INCLUDES:
1- FACEPLATE
1- CLEAR SCREW COVER
1- COLOR COORDINATED SCREW COVER
2- CLEAR LABEL COVER
2- MOUNTING SCREW
B
.76
19.2
PART NUMBER
UICFP6**

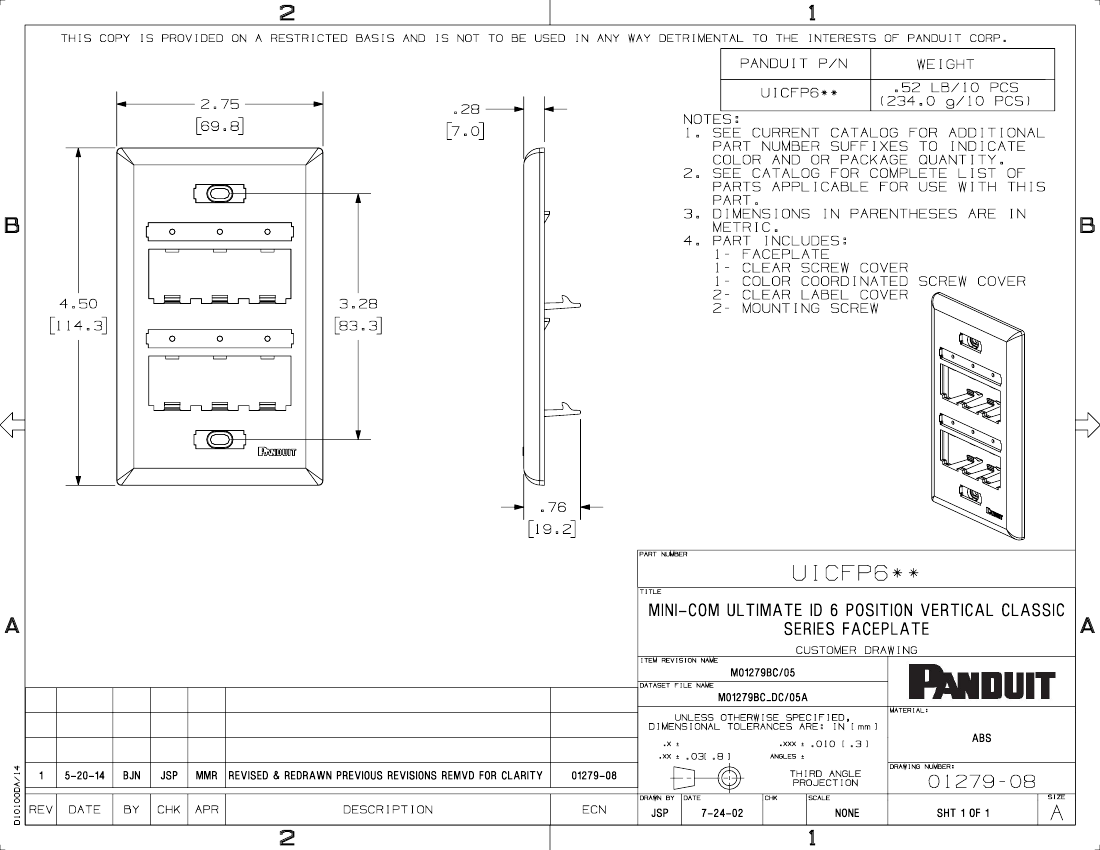

TITLE
A
MINI-COM
ULTIMATE
ID
6
POSITION
VERTICAL
CLASSIC
SERIES
FACEPLATE
CUSTOMER DRAWING
ITEM REVISION NAME
A
M01279BC/05
DATASET FILE NAME
M01279BC_DC/05A
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XX
.XXX
MATERIAL:
.010 [.3]
DRAWING NUMBER:
ABS
.03[.8]
ANGLES
D10100DA/14
1
5-20-14
DATE
BJN
JSP
CHK
MMR
REVISED
&
REDRAWN
PREVIOUS
REVISIONS
REMVD
FOR
CLARITY
01279-08
DRAWN BY
DATE
CHK
THIRD ANGLE
PROJECTION
SCALE
01279-08
SIZE
REV
BY
APR
DESCRIPTION
ECN
JSP
7-24-02
NONE
SHT
1
OF
1
A
2
1
