CKCL22C0G1H101K085AL datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CKCL22C0G1H101K085AL

CKCL22C0G1H101K085AL: DescriptionCapacitor Arrays & Networks 0805 50V 100pF C0G 10% 2-N-1 Soft; CategoryPassive components capacitor; File Size175KB，5 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

CKCL22C0G1H101K085AL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CKCL22C0G1H101K085AL	-	-	View	Buy Now

CKCL22C0G1H101K085AL Overview

Capacitor Arrays & Networks 0805 50V 100pF C0G 10% 2-N-1 Soft

CKCL22C0G1H101K085AL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TDK Corporation
package instruction	CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0001 µF
Capacitor type	ARRAY/NETWORK CAPACITOR
JESD-609 code	e3
length	2 mm
Installation features	SURFACE MOUNT
negative tolerance	10%
Network Type	ISOLATED C NETWORK
Number of components	1
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
encapsulated code	CHIP
Package shape	RECTANGULAR PACKAGE
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
Guideline	AEC-Q200
Maximum seat height	0.85 mm
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Terminal pitch	1 mm
Terminal shape	WRAPAROUND
width	1.25 mm

Preview

Download Datasheet

View All

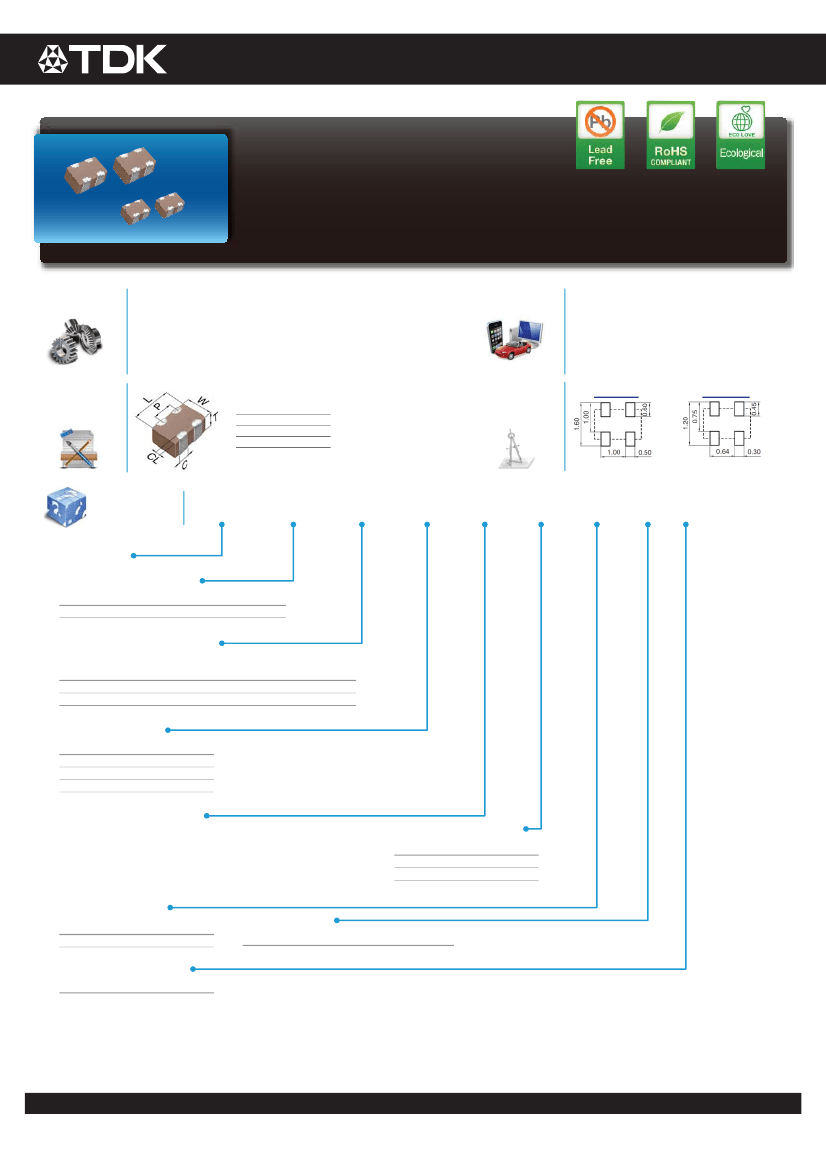

MULTILAYER CERAMIC CHIP CAPACITORS

CKC Series

Automotive Grade

2 in 1 Array

Type:

CKCM25 [EIA CC0504]

CKCL22 [EIA CC0805]

lssue date:

Dec 2014

20141219 / mlcc_automotive_2array_en

MULTILAYER CERAMIC CHIP CAPACITORS

REMINDERS

Please read before using this product

SAFETY REMINDERS

REMINDERS

If you intend to use a product listed in this catalog for a purpose that may cause loss of life or other damage,

you must contact our company’s sales window.

We may modify products or discontinue production of a product listed in this catalog without prior notiﬁcation.

We provide “Delivery Speciﬁcation” that explain precautions for the speciﬁcations and safety of each product

listed in this catalog. We strongly recommend that you exchange these delivery speciﬁcations with customers

that use one of these products.

If you plan to export a product listed in this catalog, keep in mind that it may be a restricted item according

to the “Foreign Exchange and Foreign Trade Control Law”. In such cases, it is necessary to acquire export

permission in harmony with this law.

Any reproduction or transferring of the contents of this catalog is prohibited without prior permission from our

company.

We are not responsible for problems that occur related to the intellectual property rights or other rights of our

company or a third party when you use a product listed in this catalog. We do not grant license of these rights.

This catalog only applies to products purchased through our company or one of our company’s ofﬁcial agencies.

This catalog does not apply to products that are purchased through other third parties.

Notice: Effective January 2013, TDK will use a new catalog number which adds product thickness and packaging

speciﬁcation detail. This new catalog number should be referenced on all catalog orders going forward, and

is not applicable for OEM part number orders. Please be aware the last ﬁve digits of the catalog number will

differ from the item description (internal control number) on the product label. Contact your local TDK Sales

representative for more information.

(Example)

Catalog Issued date

Prior to January 2013

January 2013 and Later

Catalog Number

C1608C0G1E103J

C1608C0G1E103J080AA

Item Description (On Delivery Label)

C1608C0G1E103JT000N

Page 1

20141219 / mlcc_automotive_2array_en

CKCL22C0G1H101K085AL Related Products

	CKCL22C0G1H101K085AL	CKCL22C0G1H471K085AL	CKCL22C0G1H220K085AL	CKCL22C0G2A220K085AL	CKCL22C0G1H100F085AL	CKCL22C0G2A221K085AL
Description	Capacitor Arrays & Networks 0805 50V 100pF C0G 10% 2-N-1 Soft	Capacitor Arrays & Networks 0805 50V 470pF C0G 10% 2-N-1 Soft	Capacitor Arrays & Networks 0805 50V 22pF C0G 10% 2-N-1 Soft	Capacitor Arrays & Networks 0805 100V 22pF C0G 10% 2-N-1 Soft	Capacitor Arrays & Networks 0805 50V 10pF C0G 1pF 2-N-1 Soft	Capacitor Arrays & Networks 0805 100V 220pF C0G 10% 2-N-1 Soft
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	-
package instruction	CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT	CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT	CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT	-	CHIP,	-
Reach Compliance Code	compliant	unknown	compliant	-	compliant	-
ECCN code	EAR99	EAR99	EAR99	-	EAR99	-
capacitance	0.0001 µF	0.00047 µF	0.000022 µF	-	0.00001 µF	-
Capacitor type	ARRAY/NETWORK CAPACITOR	ARRAY/NETWORK CAPACITOR	ARRAY/NETWORK CAPACITOR	-	ARRAY/NETWORK CAPACITOR	-
JESD-609 code	e3	e3	e3	-	e3	-
length	2 mm	2 mm	2 mm	-	2 mm	-
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	-
negative tolerance	10%	10%	10%	-	10%	-
Network Type	ISOLATED C NETWORK	ISOLATED C NETWORK	ISOLATED C NETWORK	-	ISOLATED C NETWORK	-
Number of components	1	1	1	-	1	-
Number of functions	2	2	2	-	2	-
Number of terminals	4	4	4	-	4	-
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-
encapsulated code	CHIP	CHIP	CHIP	-	CHIP	-
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	-
positive tolerance	10%	10%	10%	-	10%	-
Rated (DC) voltage (URdc)	50 V	50 V	50 V	-	50 V	-
Guideline	AEC-Q200	AEC-Q200	AEC-Q200	-	AEC-Q200	-
Maximum seat height	0.85 mm	0.85 mm	0.85 mm	-	0.85 mm	-
surface mount	YES	YES	YES	-	YES	-
Temperature characteristic code	C0G	C0G	C0G	-	C0G	-
Temperature Coefficient	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-	30ppm/Cel ppm/°C	-
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	-	Tin (Sn) - with Nickel (Ni) barrier	-
Terminal pitch	1 mm	1 mm	1 mm	-	1 mm	-
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	-	WRAPAROUND	-
width	1.25 mm	1.25 mm	1.25 mm	-	1.25 mm	-
