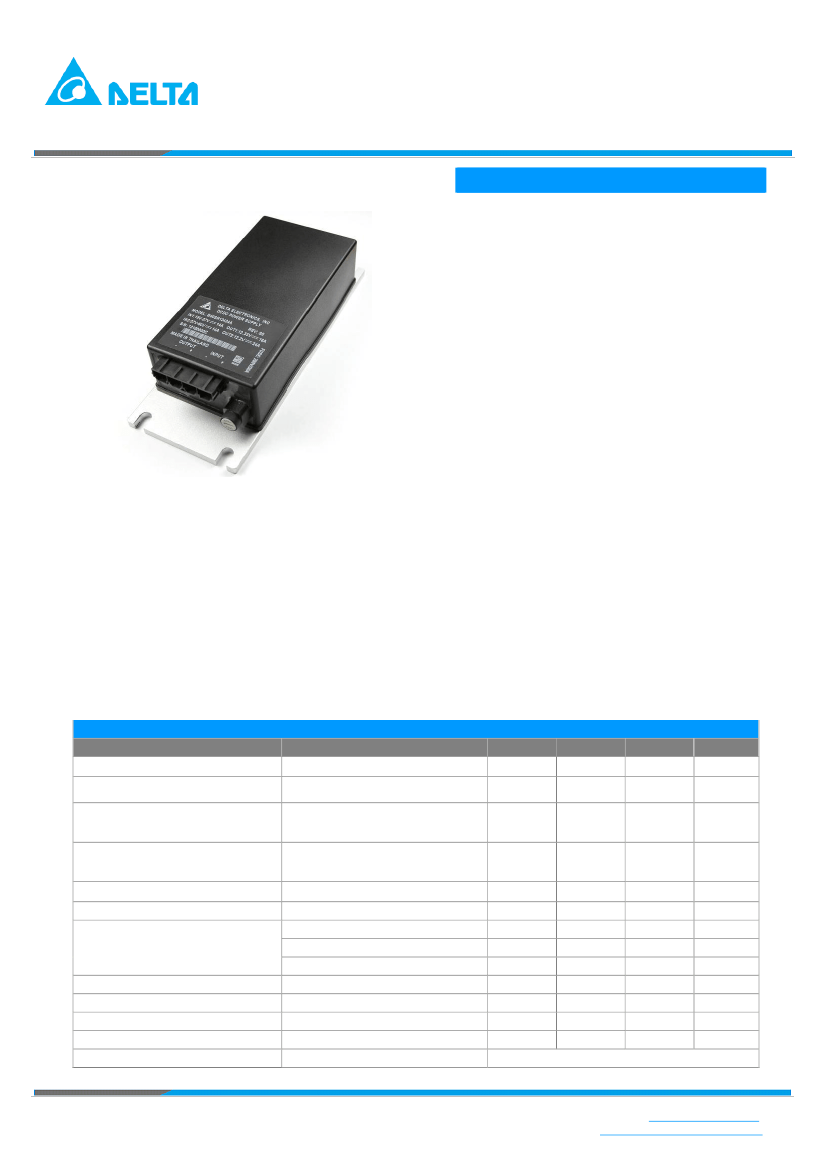

B62SR13722A/B/C/D
13.7V Output DC/DC Converter, Box Type Package
FEATURES
Ultra wide input voltage range, 18~106V
200W Output @ 18V~27V Vin range
300W Output @ 27~106V Vin range (Including 27V)
Full Load Efficiency up to 88.5% @48Vin
Intergrated fuse holder (option)
Parallel Connection of multiple units
Box type package with metal base plate
Package Dimension:
190.0x76.0x44.0mm (7.48”x2.99”x1.73”)
Operating Temperature Range - 40°C to +75°C
Input Reverse Polarity Protection
Minimized Inrush current
Input UVLO, Output OCL, SCP, OVP, OTP
Enable on/off (option)
2250VDC Isolation
IP67 protection for selective model
RoHs Compliant
ISO 9001, ISO 14001 certified manufacturing facility
UL60950
CE Mark
EMC compatible: EN12895，CISPR11 ClassA
Electrical transient conduction: ISO7637-2
The B62SR13722, a ultra wide input voltage range of 18~106V, and single isolated output converter, is the latest product offering from a
world leader in power systems technology and manufacturing ― Delta Electronics, Inc. Such box type DCDC converter can provide 300W
(200W at Vin < 27V), 13.7V regulated DC output voltage with full load efficiency up to 88.5% @48Vin; The B62SR13722 offers input UVLO,
output over current limit, short circuit, output over voltage, over temperature, and input reverse polarity protections. It has an option for
intergrated fuse holder and enable on/off function. It also has parallel function; and allows a wide operating temperature range of –40°C to
+75°C. With creative design technology and optimization of component placement, this converter possess outstanding electrical and thermal
performance, as well as high reliability under extrmely harsh operating conditions. The B62SR13722 meets IP67 protecion (refer to “water
protection level” specification).
Input Characteristics
Item
Condition
10 minutes operating, no time
derating vs input
Min.
18
107
16
Typ.
48
Max.
106
126
Unit
VDC
VDC
VDC
Continuous Input Voltage
Max Input voltage
Input Under-Voltage Lockout, Turn-On
Voltage Threshold
Input Under-Voltage Lockout, Turn-Off
Voltage Threshold
Lockout Hysteresis Voltage
Maximum Input Current
No-Load Input Current
Off converter input current
Reflected input ripple current
Max Reverse Polarity Input Voltage
Max Inrush current
Internal Input Fuse
Ø 6.35mm*31.75mm
Vin=18V, 100% Load
Vin=24V
Vin=48V
Vin=72V, 80V
Vin=48V, enable off (C version)
Vin=48V, Vpp
17
18
14
1
15
2
13.3
130
60
45
12
16
3
14
180
100
80
20
0.6
106
10
VDC
VDC
A
mA
mA
mA
mA
A
VDC
A
250V/30A Fast-acting fuse
DS_B62SR13722A_01112017
E-mail: dcdc@deltaww.com
http://www.deltaww.com/dcdc
P1
Output Characteristics
Item
Operating Output Current Range
Conditions
Vin=18V~27V
Vin=27V~106V(include 27V)
Total Vin range, Io=0
Vin=18~27V, Io=14.5A
Vin=27~106V, Io=22A
Full load, Vpp, 20MHz bandwidth
RMS
Vin=24V
Vin=36V, 48V, 72V, 80V
Vin=48V, 22A for each module
Vin= 48V(for
A/B/C/D)
Vin=72V(for
A/B/C/D)
Vin= 48,72V(for
C)
15
Min.
0
0
13.9
13.63
13.5
Typ.
Max.
14.5
22
14.3
14.03
13.9
100
50
19
29
10
800
1200
400
100
18
250
250
5000
3
Unit
A
A
V
V
V
mV
mV
A
A
%
mS
mS
mS
mS
V
mV
mV
µF
%
%
%
%
%
%
%
%
%
Unit
VDC
VDC
MΩ
pF
KHz
Mhours
g
Unit
℃
℃
℃
% rel. H
Output Voltage Set Point
Output Voltage Ripple and Noise,
Output Current Limit
Current share accuracy
Start-up time(start _up time by Vin)
Start-up time(start _up time by Enable)
Rise time
Output Voltage Protection
15
23
14.1
13.83
13.7
50
20
17
26
6
600
850
250
60
16
150
150
Output Voltage Current Transient, positive Vin=24V, 7.25A to 10.875A, 0.1A/us slew rate
and nagetive voltage step
Vin=27~106V. 11A to 16.5A, 0.1A/us slew rate
Maximum Output Capacitance
ESR>10mohm
Output overshoot
Efficiency @ 100% Load(14.5A)
Vin=24V
Efficiency @ 100% Load(22A)
Vin=36V
Efficiency @ 100% Load(22A)
Vin=48V
Efficiency @ 100% Load(22A)
Vin=72V,80V
Efficiency @ 60% Load(8.7A)
Vin=24V
Efficiency @ 60% Load(13.2A)
Vin=36V
Efficiency @ 60% Load(13.2A)
Vin=48V
Efficiency @ 60% Load(13.2A)
Vin=72V,80V
General Characteristics
Item
Isolation Voltage,
Isolation Resistance, Input to Output
Isolation Capacitance, Input to Output
Switching Frequency
MTBF
Weight
Parameter
Storage Temperature Range
Operating Temperature Range
Over Temperature Protection
Humidity (non condensing)
Water Protection Level
Vibration
Shock
Emission
Immunity
ESD
1
2
84.5
85.5
86.5
88.0
85.0
86.3
87.0
88.3
Min.
86.5
87.5
88.5
90.0
87.0
88.3
89.0
90.3
Typ.
Max.
2250
550
Conditions
Input to Output, Input to Case
Ouput to Case
10
9000
175
0.74
900
Min.
-40
-40
108
95
For model P/N with suffix B
IEC 60068-2-6
IEC 60068-2-27
EN12895
EN12895, EN61000-4-3
EN12895,
EN61000-4-2
Max.
+125
+75
Ta=25ºC, 80%load
Environmental Specifications
Conditions
Ambient Temperature
NTC Temperature, latch mode
Notes
IP67
10G/15~200HZ/3 PLANES
50G 3 PLANES
30-1000MHz 34-45dBuV/m
10V/m /27-1000MHz AM;
10V/m /900MHz PM
Direct: ±2KV ±4KV; Air: ±2KV ±4KV ±8KV
Specifications typical at Ta=+25℃, nominal input voltage and rated full load output current unless otherwise noted.
Specifications are subject to change without notice.
DS_B62SR13722_01112017
E-mail: dcdc@deltaww.com
http://www.deltaww.com/dcdc
P2

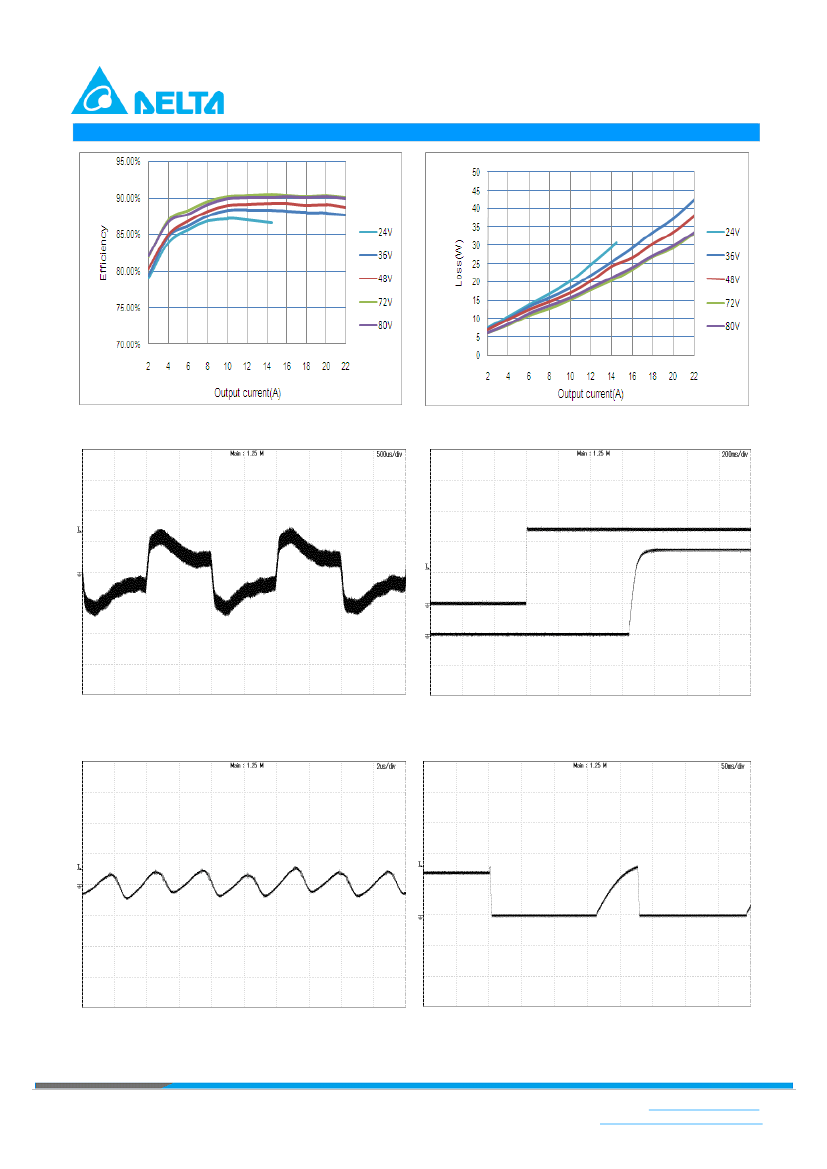

ELECTRICAL CURVES
Figure 1:
Efficiency vs. Output current
Vin=24V,36V,48V, 72V, 80V
@
Figure 2:
Loss vs. Output current
@ Vin=24V,36V,48V, 72V, 80V
Figure 3:
Dynamic response to load step 11A~16.5A with
0.1A/uS slew rate at 48Vin
CH1:VOUT, 100mV/div, 500uS/div
Figure 4:
Vout start up with Vin on at 48Vin,22A Iout,
TOP:VIN, 20V/div, 200mS/div
BOTTOM: VOUT, 5V/div, 200mS/div
Figure 5:
Output ripple & noise at 48Vin, 22A Iout
CH1:VOUT, 50mV/div, 2uS/div
Figure 6:
Output over voltage protection at 48Vin,11A Iout
CH1:VOUT, 10V/div, 50mS/div
DS_B62SR13722_01112017
E-mail: dcdc@deltaww.com
http://www.deltaww.com/dcdc
P3

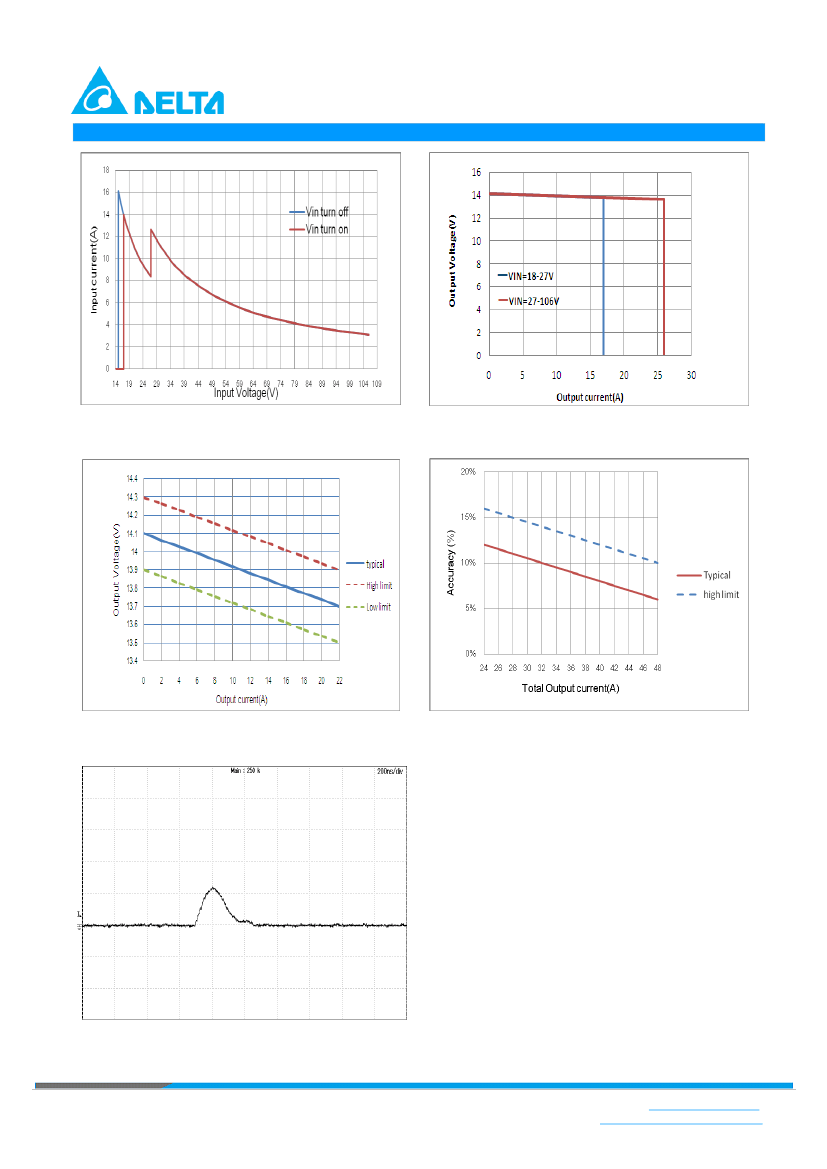

ELECTRICAL CURVES (continous)
Figure 7:
Input current vs. Input voltage
@ Vin=18V~27V, 200W; Vin=27V~106V, 300W
Figure 8:
Output voltage vs. Output current
OCL Performance
Figure 9:
Output voltage vs. Output current
@Vin=48V. Droop function.
Figure 10:
Current share accuracy vs. Total output current
2 in parallel.
Figure 11:
Inrush current @ Vin=48V
CH1:Iin, 2A/div, 200nS/div; Max current 2.4A, I2t=1.24E-7 A²S
DS_B62SR13722_01112017
E-mail: dcdc@deltaww.com
http://www.deltaww.com/dcdc
P4
FEATURES DESCRIPTIONS
Output Over-Current Limit and Short Protection
The modules include internal output over-current limit (OCL) and short circuit protection (SCP) circuits, the OCL
set point is lower than that of the SCP; The response of SCP circuit is much fast than that of the OCL circuit.
The slowly increase of the output current will let module enter OCL protection when the current exceeds the
OCL set point, while the fast increase of the output current will let module enter SCP when the current exceeds
the SCP set point.
When the modules enter OCL protection, the output voltage will decrease while the output current is kept
constant, the output voltage will soft start to set point when the overload condition is removed.
The module will enter hiccup mode when it triggers the SCP set point. The module will try to restart after
shutdown. If the overload condition still exists, the module will shut down again. This restart trial will continue
until the overload condition is removed.
Output Over-Voltage Protection
The power module includes an internal output over-voltage protection(OVP) circuit, which monitors the voltage
on the output terminals. If this voltage exceeds the OVP set point, the module will shut down, and then restart
after a fixed delay time (hiccup mode), please refer to figure6 for detail.
Over-Temperature Protection
The over-temperature protection consists of circuitry that provides protection from thermal damage. If the
temperature exceeds the preset temperature threshold the module will shut down and enter into latch mode,
and all components will not exceed their absolute maximum temperature ratings.The module will not recover
until the input source is powered on again.
Remote On/Of
f
B62SR13722C has Enable control function. This Enable PIN is designed on the primary side of converter, the
converter will turn on when the Enable PIN connected to VIN+, and turn off when the Enable PIN connected to
VIN- or floating.
B62SR13722C
Enable
VIN+
VIN-
Vo+
Vo-
Figure 12:
suggested Enable connection
Input Reverse Voltage Protection
The input reverse voltage protection is provided by an diode on the input line, the standoff voltage for the
reverse protection shall be no less than -106V.
DS_B62SR13722_01112017
E-mail: dcdc@deltaww.com
http://www.deltaww.com/dcdc
P5
