LXDC2HL10A-080: DescriptionNon-Isolated DC/DC Converters 1.0Vout 600mA 2.5x2.0mm micro DCDC; Categorysemiconductor Power management; File Size1021KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LXDC2HL10A-080 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LXDC2HL10A-080	-	-	View	Buy Now

LXDC2HL10A-080 Overview

Non-Isolated DC/DC Converters 1.0Vout 600mA 2.5x2.0mm micro DCDC

LXDC2HL10A-080 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Murata
Product Category	Non-Isolated DC/DC Converters
RoHS	Details
Product	Non-Isolated / POL
Number of Outputs	1 Output
Input Voltage	2.3 V to 5.5 V
Output Voltage-Channel 1	1 V
Output Current-Channel 1	600 mA
Mounting Style	SMD/SMT
Package / Case Size	2.5 mm x 2 mm
Length	2.5 mm
Width	2 mm
Height	1.1 mm
Operating Temperature Range	- 40 C to + 85 C
Output Type	Single
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Factory Pack Quantity	3000

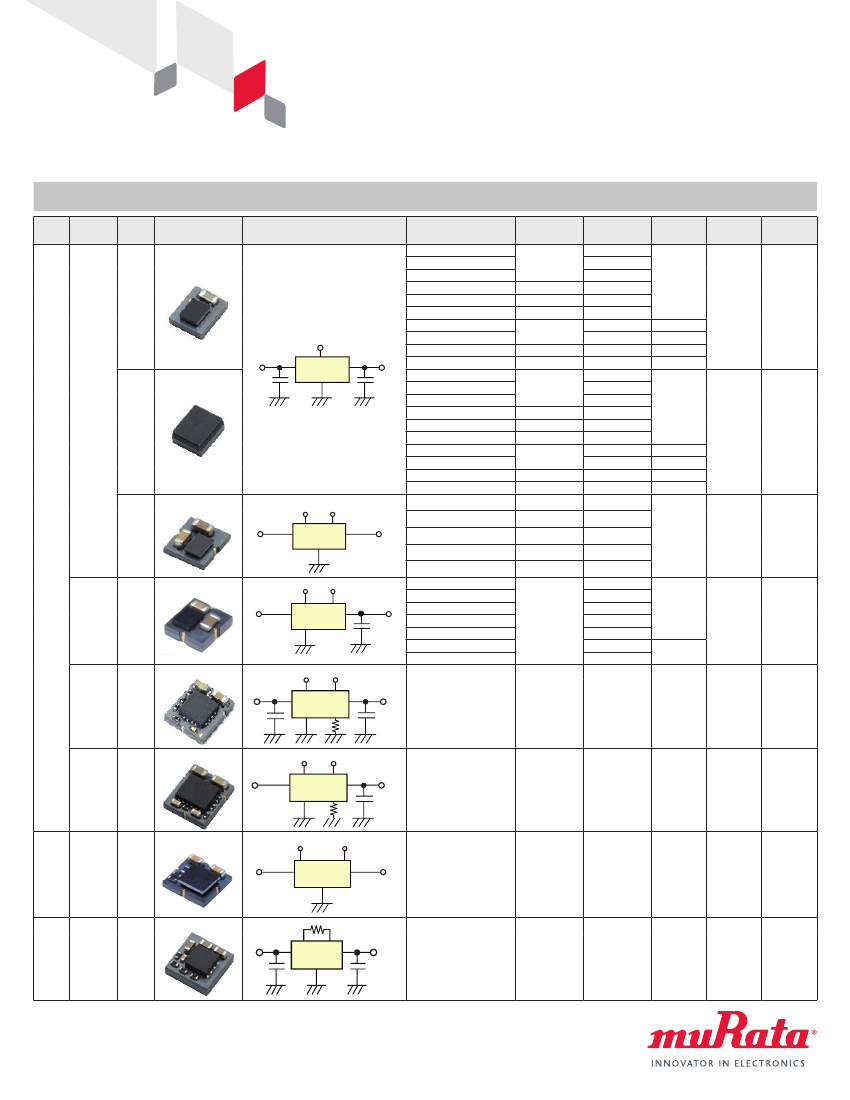

Preview

Download Datasheet

View All

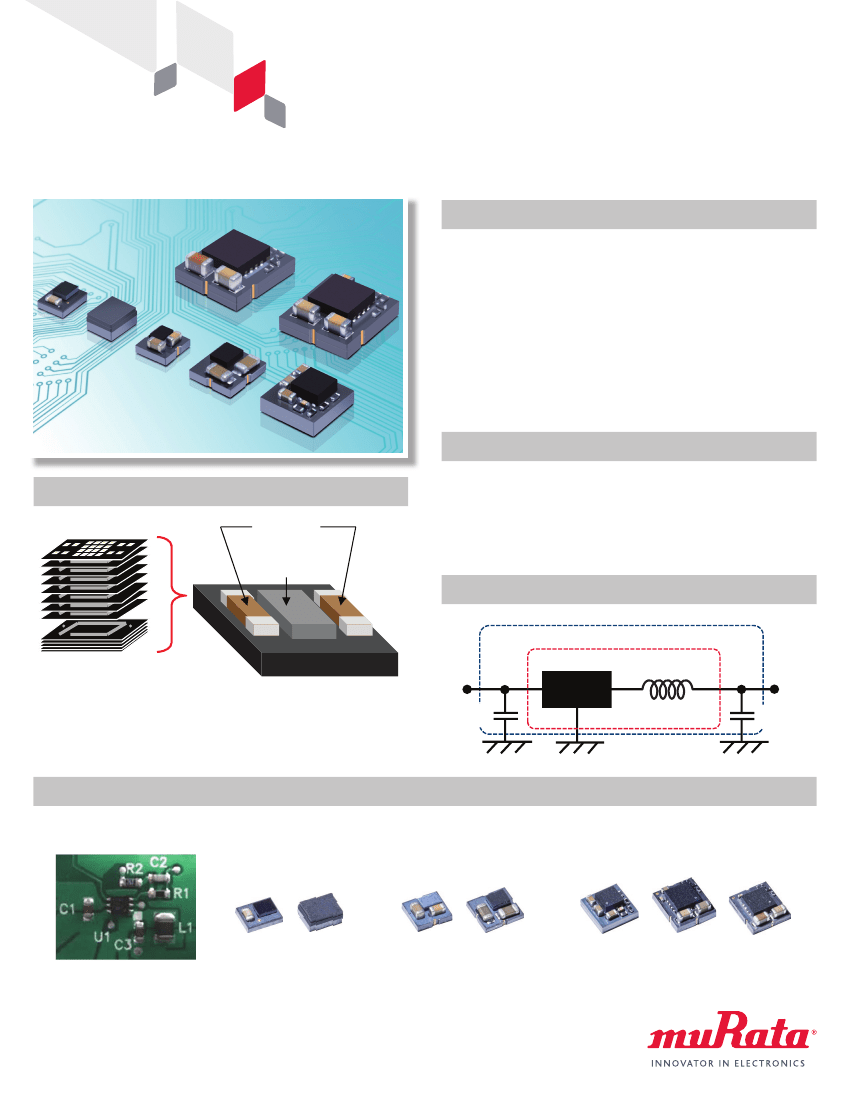

Product Brief

LXDC Series

µDCDC Converters

Features



Low EMI noise and small footprint due to

inductor-

embedded ferrite substrate



High e ciency using synchronous rectiﬁer technology and

PFM/PWM auto-select function (forced mode available on

some models)



Input voltage range: 2.3–5.5V & 4–14V (55F series)



Load currents available are 600mA, 1A, 1.5A and 3A



Fixed output voltage & adjustable voltage type

(see product line-up table on page two)



Switching frequency: 3MHz to 6MHz



Operating temperature range: -40 to +85°C (105ºC for 2XQ)

Product images not to scale.

Applications



Any device currently using discrete DC/DC circuits where

Structure

Capacitor

DC/DC

IC

downsizing and space savings are required



Cellular phones, PDAs, mobile internet devices



Digital cameras, ebooks, tablets, W-LAN, BT



Portable game consoles, music players, etc.



Base station, 12V AC/DC adaptor input devices

Application Circuit

2UR series

2HL/2HN series

Multilayer process to create

a ferrite substrate with 3-

dimensional circuits and

embedded power inductor

Vin

I/O via holes through the

ferrite substrate act as

ferrite beads and reduce

conductive noise.

IC

Cin

Power Inductor

Vout

Cout

Note: See page two for circuits speci c to each series.

Downsizing Advantage

Discrete Solution

2HL or 2HN

Series (0.6A)

2UR Series (0.6A)

2XQ Series (1.5A)

44A Series (0.7A) -Boost

55K Series (3A)

55F Series (14V input, 1.5A)

2HL

2HN

2UR

2XQ

44A

55K

55F

Footprint

35–60mm

2

(including two

external capaci ors)

t

10mm

2

6-10mm

2

16–28mm

2

LXDC2HL10A-080 Related Products

	LXDC2HL10A-080	LXDC2XQ15A-277	LXDC2HL30A-054	LXDC2HL18A-052	LXDC2HL23A-323	LXDC2HL13A-082	LXDC2XQ25A-300	LXDC2HL1DA-087
Description	Non-Isolated DC/DC Converters 1.0Vout 600mA 2.5x2.0mm micro DCDC	Non-Isolated DC/DC Converters 2.8x2.6mm 1.5Vout 1500ma Micro DCDC	Non-Isolated DC/DC Converters 3.0Vout 400mA 2.5x2.0mm micro DCDC	Non-Isolated DC/DC Converters 1.8Vout 600mA 2.5x2.0mm micro DCDC	Non-Isolated DC/DC Converters 2.5x2.0mm 2.3Vout 500ma Micro DCDC	Non-Isolated DC/DC Converters 1.3volts	Non-Isolated DC/DC Converters 2.5Vout 1.5A 2.6x2.8mm micro DCDC	Non-Isolated DC/DC Converters 1.35Vout 600mA 2.5x2.0mm micro DCDC
Product Attribute	Attribute Value	Attribute Value	Attribute Value	-	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Murata	Murata	Murata	-	Murata	Murata	Murata	Murata
Product Category	Non-Isolated DC/DC Converters	Non-Isolated DC/DC Converters	Non-Isolated DC/DC Converters	-	Non-Isolated DC/DC Converters	Non-Isolated DC/DC Converters	Non-Isolated DC/DC Converters	Non-Isolated DC/DC Converters
RoHS	Details	Details	Details	-	Details	Details	Details	Details
Product	Non-Isolated / POL	Non-Isolated / POL	Non-Isolated / POL	-	Non-Isolated / POL	Non-Isolated / POL	Non-Isolated / POL	Non-Isolated / POL
Number of Outputs	1 Output	1 Output	1 Output	-	1 Output	1 Output	1 Output	1 Output
Input Voltage	2.3 V to 5.5 V	2.7 V to 5.5 V	2.3 V to 5.5 V	-	2.3 V to 5.5 V	-	2.7 V to 5.5 V	2.3 V to 5.5 V
Output Voltage-Channel 1	1 V	1.5 V	3 V	-	2.3 V	-	2.5 V	1.35 V
Output Current-Channel 1	600 mA	1.5 A	400 mA	-	500 mA	600 mA	800 mA	600 mA
Mounting Style	SMD/SMT	SMD/SMT	SMD/SMT	-	SMD/SMT	-	SMD/SMT	SMD/SMT
Length	2.5 mm	2.8 mm	2.5 mm	-	2.5 mm	-	2.6 mm	2.5 mm
Width	2 mm	2.6 mm	2 mm	-	2 mm	-	2.8 mm	2 mm
Height	1.1 mm	1.14 mm	1.1 mm	-	1.1 mm	-	1.14 mm	1.1 mm
Operating Temperature Range	- 40 C to + 85 C	- 40 C to + 85 C	- 40 C to + 85 C	-	- 40 C to + 85 C	-	- 40 C to + 105 C	- 40 C to + 85 C
Output Type	Single	Fixed	Single	-	Fixed	-	Buck	Single
Packaging	Reel	Reel	Reel	-	Reel	Reel	Reel	Reel
Factory Pack Quantity	3000	3000	3000	-	3000	3000	3000	3000
