PAH200H482R5/BP datasheet, PDF

Datasheet> All Categories > semiconductor> Power management> PAH200H482R5/BP

PAH200H482R5/BP: DescriptionIsolated DC/DC Converters 175W 2.5V 70A; Categorysemiconductor Power management; File Size664KB，2 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric View All

PAH200H482R5/BP Overview

Isolated DC/DC Converters 175W 2.5V 70A

PAH200H482R5/BP Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	TDK-LAMBDA
Product Category	Isolated DC/DC Converters
RoHS	Details
Number of Outputs	1 Output
Output Power	175 W
Input Voltage	36 V to 76 V
Output Voltage-Channel 1	2.5 V
Output Current-Channel 1	70 A
Package / Case Size	1/2 Brick
Length	2.4 in
Width	2.28 in
Height	0.5 in
Product	Isolated
Factory Pack Quantity	1
Unit Weight	2.821917 oz

Preview

Download Datasheet

View All

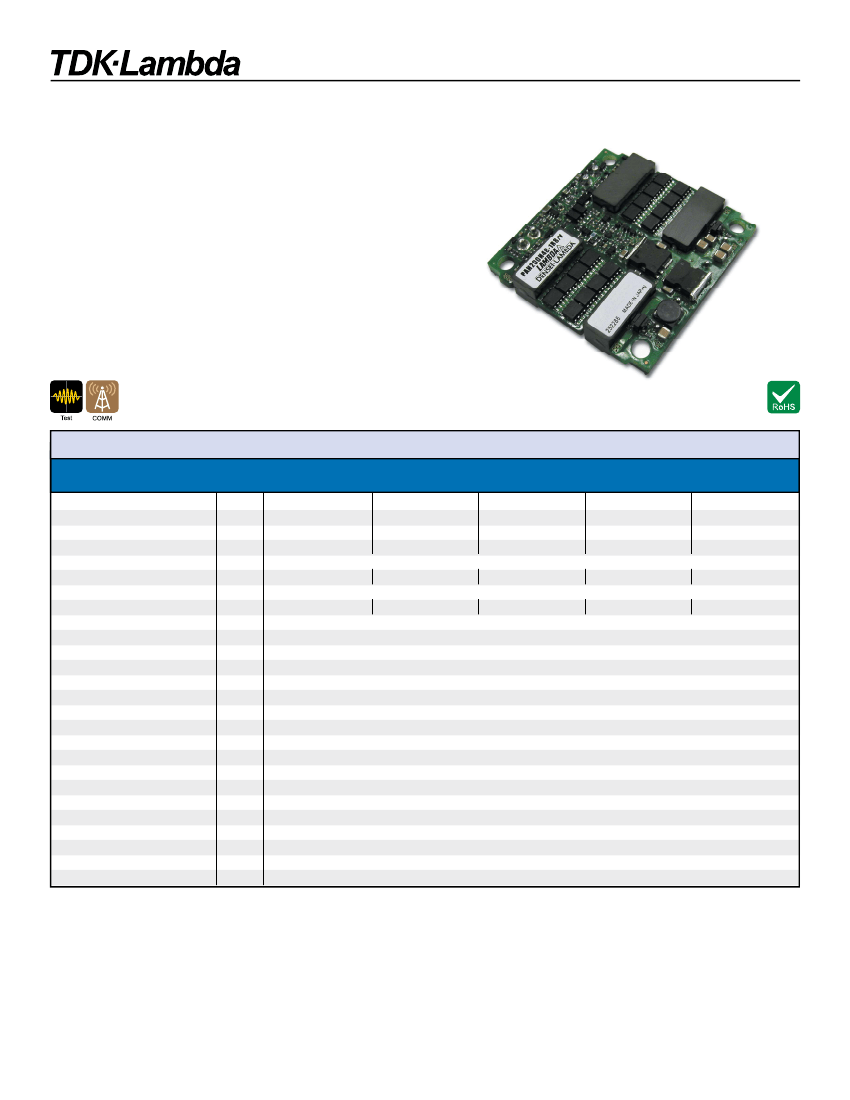

PAH200H Series

High Current Half Brick DC-DC Converters

Features



Industry Standard Package



Low voltage outputs to 0.96V



Output Currents up to 70A



Designed for telecom standards



Output voltage adjustment



Remote On / Oﬀ



High Eﬃciency



Wide adjustment range



ASIC Design



No potting materials

Key Market Segments & Applications

Speciﬁcations

Model

Nominal Output Voltage

VDC

Output Current (Max)

Max Output Power

Eﬃciency (Typ)

Input Voltage range

VDC

Input Current (typ)

Output Voltage Accuracy

Output Voltage Adjustment

Max Ripple & Noise

Max Line Regulation

Max Load Regulation

Overcurrent Protection

Overvoltage Protection

Remote Sense

Remote On / Oﬀ

Operating Temperature

Operating Humidity

Storage Temperature

Cooling

I/O Isolation Voltage

Vibration (non operating)

Shock

Safety Agency Approvals

Weight (Typ)

Size (WxHxD)

in(mm)

Warranty

yrs

PAH200H48-1R2 PAH200H48-1R5 PAH200H48-1R8 PAH200H48-2R5 PAH200H48-3R3

(/C version)

1.8

2.5

3.3

70 (60)

60 (50)

126 (108)

175 (150)

198 (165)

36 - 76V (100V for 100ms)

2.18 (1.87)

2.66 (2.28)

3.08 (2.64)

4.23 (3.63)

4.68 (3.90)

±1

0.96-1.32

1.2-1.65

1.44 - 1.98

2.0 - 2.75

2.805 - 3.795

100

105 - 140% (See Options)

120 - 140% (See Options)

Yes

Yes (See options)

-40ºC to +85ºC (100ºC /B option) Baseplate temperature

5 - 95% Non condensing

-40ºC to +100ºC

Convection, or forced air

Input to Output 1500VAC Output to Case 500VAC

10~55Hz (1 minute), amplitude 0.825mm (49m/s

max), X, Y, Z 1 hr ea.

196.1 m/s

UL1950, CSA950, EN60950, & CE

2.28 x 0.4* x 2.4 (57.9 x 10.2* x 61); * /B version 0.5 (12.7)

Two Years

1.2

70 (60)

84 (72)

1.5

70 (60)

105 (90)

Note: See Installation Manual for full details, test methods of parameters and application notes.

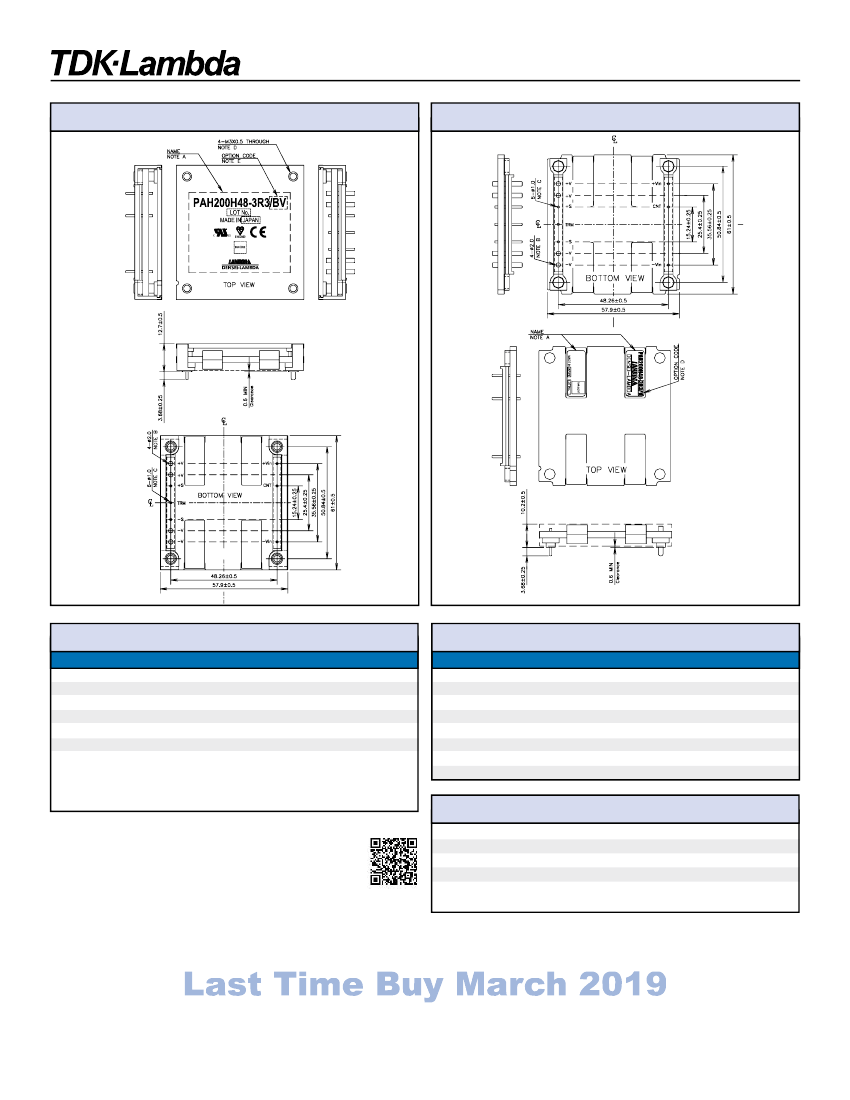

Last Time Buy March 2019

1-800-526-2324 • www.us.tdk-lambda.com/lp/

232

Disclaimer: us.tdk-lambda.com/lp/legal.htm
