854-22-016-20-601101

Description
Headers & Wire Housings STD SPRING-LOADED CONNECTOR
CategoryThe connector    The connector
File Size429KB,1 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric View All

854-22-016-20-601101 Online Shopping

Suppliers Part Number Price MOQ In stock
854-22-016-20-601101 - - View Buy Now

854-22-016-20-601101 Overview

Headers & Wire Housings STD SPRING-LOADED CONNECTOR

854-22-016-20-601101 Parametric

Parameter NameAttribute value
MakerMill-Max
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeBOARD CONNECTOR
SPRING-LOADED
CONNECTORS

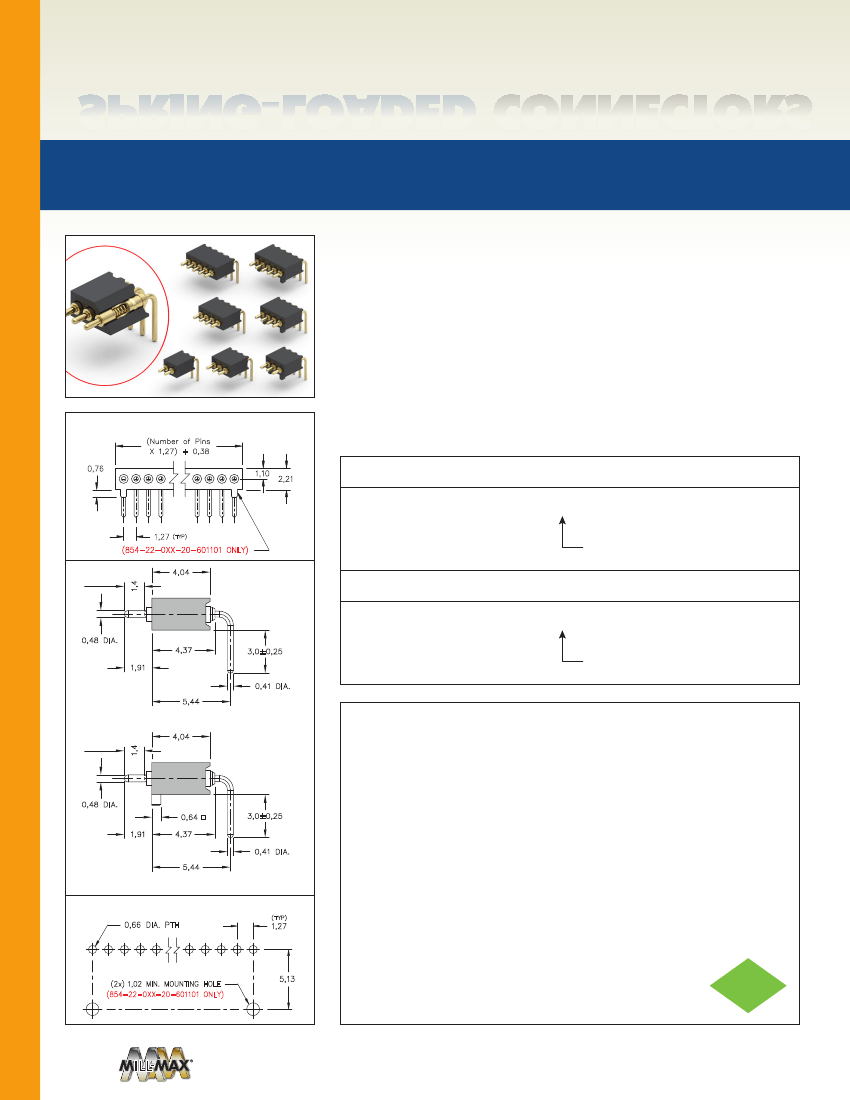

SERIES 854 • 1,27 GRID RIGHT ANGLE MOUNT •
SINGLE ROW STRIPS
• Modular contacts for use on 1,27 grid. Supplied in single row strips with or without
mounting pegs
• Precision-machined piston / base and gold-plated components assure up to 100,000
cycle life durability
• Pistons have a 0,7 mid. stroke & 1,4 max. stroke
• Low resistance, high current contacts are rated at 2 amps continuous, 3 amps peak
• High temperature thermoplastic insulators are suitable for wave and reflow soldering
processes
• 854 series contact strips are designed for through-hole mounting in the circuit board
SINGLE ROW Series 854
ORDERING INFORMATION
Single Row Series 854
854-22-0XX-20-001101
Specify number of contacts
01-20
Stroke
Single Row with Mounting Pegs Series 854
854-22-0XX-20-601101
Specify number of contacts
01-20
854 Series without Mounting Pegs
Stroke
PAGE 18.1 | SPRING-LOADED CONNECTORS
Materials:
Contact piston & base: Machined copper alloy plated 0,51μm gold over
2,54μm nickel
Spring: Beryllium copper-plated 0,25μm gold
Insulator: High temperature thermoplastic, rated UL94 V-0
Mechanical:
Spring force @ initial height: 25 grams
Spring force @ mid stroke (0,7): 60 grams
Durability: Up to 100,000 cycles
Electrical:
Voltage rating: 100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per contact
Contact resistance: 20mW max.
Insulation resistance: 10,000MW min.
Dielectric strength: 700Vrms min.
Capacitance: 1pF max.
Technical Specifications
854 Series with Mounting Pegs
Suggested P.C.B. Footprint
5,13
2011/65/EU
RoHS - 2
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
