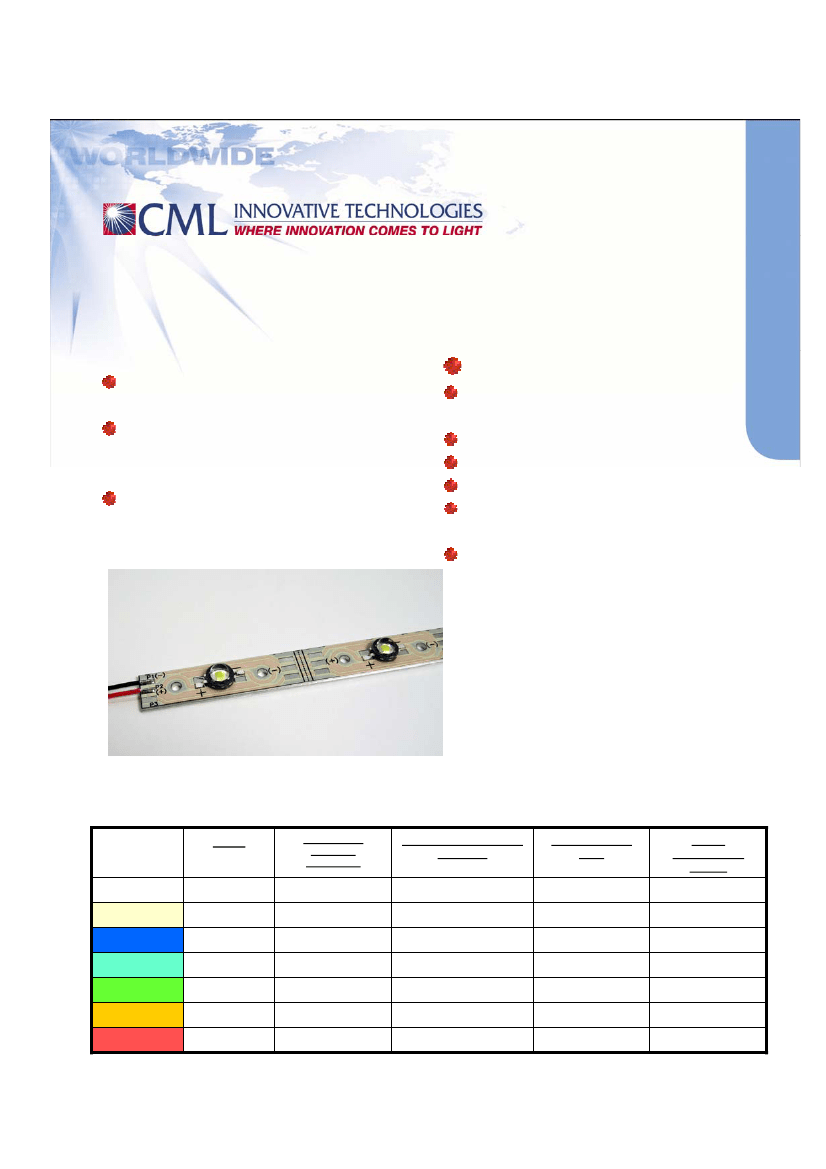

8 Watt LED Strip
Light Source
6 High Power Light Emitting
Diodes (1 Watt LEDs)
Colors: Cool White, Warm
White, Blue, Cyan, Green,
Amber and Red
Consistent unit-to-unit color
temperature
11.9” (302mm) x 0.5”
(13mm) strip
Operating life 50,000 hours
Metal Clad PCB Substrate
8” power leads
Compatible with range of
standard and custom drivers
For Decorative Edge Lighting,
Cove Lighting, Architectural
Lighting, Task Lighting, Point
of Purchase, Cabinet and
Display Case Lighting
Model-ILL2A0005
P/N
Color
Color Temp -
Dominant
Wavelength
Typical Luminous Flux
(Lumens)
Design Current
(mA)
Power
Consumption
(Watts)
ILL2A0005A
ILL2A0005B
ILL2A0005C
ILL2A0005D
ILL2A0005E
ILL2A0005F
ILL2A0005G
Cool White
Warm White
Blue
Cyan
Green
Amber
Red
6000K +/- 250K
3300K +/- 250K
470nm
505nm
530nm
589nm
625nm
240
120
72
240
240
252
264
350
350
350
350
350
350
350
7.5
7.5
7.5
7.5
7.5
5.5
5.5
Specifications
Operating Specifications:
- Operating PCB temperature: 65 °C (Recommended)
- Maximum PCB temperature: 100 °C
- Thermal Resistance (Rthj-a): 8.4 °C/W
- Projected life: 50,000 hours (70% lumen maintenance at 65 °C)
-* Additional heat sinking required, refer to CML technical support for thermal management guidelines

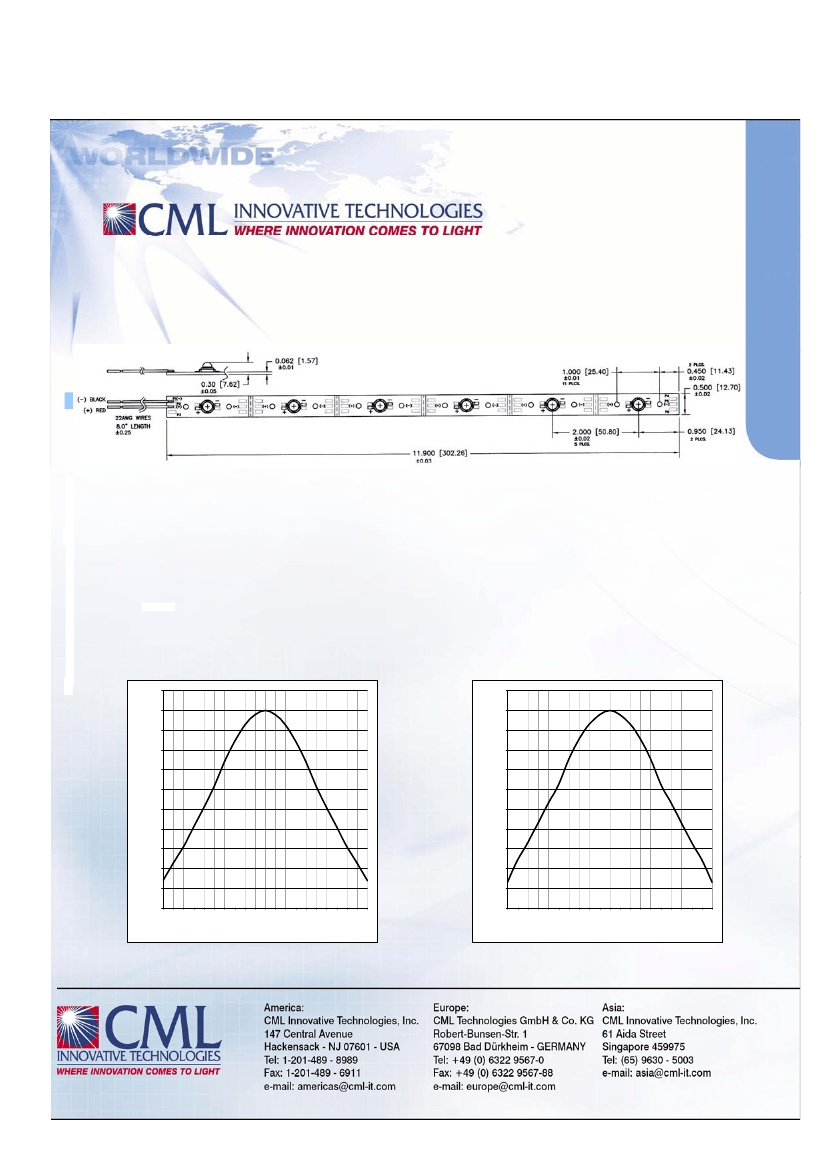

Photometric Data
110.0
110.0
100.0
100.0
90.0
90.0
80.0
80.0
Relative Intensity [%]
60.0
Relative Intensity [%]
40
70.0
70.0
60.0
50.0
50.0
40.0
40.0
30.0
30.0
20.0
20.0
10.0
10.0
0.0
30
50
20
10
-2
0
-3
0
-4
0
-5
0
-1
0
0
0.0
10
20
30
40
-5
0
-4
0
-3
0
-2
0
-1
0
50
0
Angle [Degrees]
Angle [Degrees]
Radiation Pattern (in line – parallel) (CW)
Radiation Pattern (orthogonal) (CW)
