82V3010PVG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> 82V3010PVG

82V3010PVG: DescriptionClock Generators & Support Products T1/E1/OC3 WAN PLL; CategoryWireless rf/communication Telecom circuit; File Size177KB，31 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric Compare View All

82V3010PVG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	82V3010PVG	-	-	View	Buy Now

82V3010PVG Overview

Clock Generators & Support Products T1/E1/OC3 WAN PLL

82V3010PVG Parametric

Parameter Name	Attribute value
Brand Name	Integrated Device Technology
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	SSOP
package instruction	GREEN, SSOP-56
Contacts	56
Manufacturer packaging code	PVG56
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	SSOP 300 MIL
JESD-30 code	R-PDSO-G56
JESD-609 code	e3
length	18.415 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.794 mm
Nominal supply voltage	3.3 V
surface mount	YES
Telecom integrated circuit types	TELECOM CIRCUIT
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.493 mm

Preview

Download Datasheet

View All

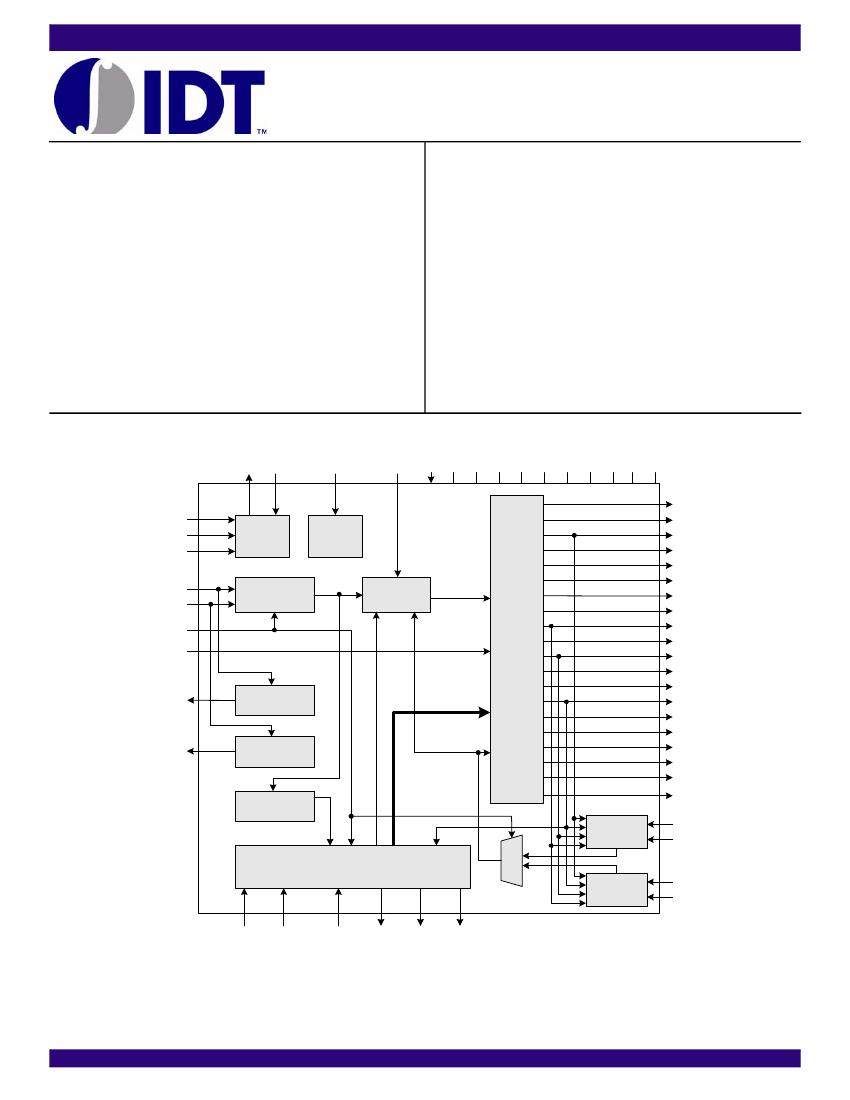

T1/E1/OC3 TELECOM CLOCK GENERATOR

WITH DUAL REFERENCE INPUTS

IDT82V3010

FEATURES

• Supports AT&T TR62411

• Supports ETSI ETS 300 011, TBR 4, TBR 12 and TBR 13 timing

for E1 interface

• Selectable reference inputs: 8 kHz, 1.544 MHz, 2.048 MHz or

19.44 MHz

• Accepts two independent reference inputs which may have

same or different nominal frequencies applied to them

• Provides C1.5o,

C3o,

C2o,

C4o,

C6o, C8o,

C16o,

C19o and

C32o

output clock signals

• Provides 7 types of 8 kHz framing pulses:

F0o,

F8o,

F16o,

F19o,

F32o,

RSP and TSP

• Provides a C2/C1.5 output clock signal with the frequency

controlled by the selected reference input Fref0 or Fref1

•

Phase slope of 5 ns per 125 µs

Attenuates wander from 2.1 Hz

Fast lock mode

Provides Time Interval Error (TIE) correction

MTIE of 1 µs

JTAG boundary scan

Holdover status indication

Freerun status indication

Normal status indication

Lock status indication

Input reference quality indication

3.3 V operation with 5 V tolerant I/O

Package: 56-pin SSOP (Green option available)

FUNCTIONAL BLOCK DIAGRAM

TDO

TDI

OSCi

TCLR

RST

DDD

DDA

C2/C1.5

TCK

TMS

TRST

Fref0

Fref1

IN_sel

FLOCK

DPLL

JTAG

OSC

C32o

C19o

C19POS

C19NEG

TIE Control

Block

Virtual

Reference

Reference Input

Switch

C16o

C8o

C4o

C2o

C3o

C1.5o

C6o

F0o

F8o

F16o

F19o

F32o

RSP

TSP

LOCK

Frequency

Select Circuit 0

MON_out0

Reference Input

Monitor 0

Reference Input

Monitor 1

Feedback Signal

MON_out1

Invalid Input

Signal Detection

F0_sel0

F0_sel1

State Control Circuit

Frequency

Select Circuit 1

F1_sel0

F1_sel1

TIE_en MODE_sel1 MODE_sel0 Normal Holdover Freerun

IDT and IDT logo are trademarks of Integrated Device Technology, Inc.

2006

Integrated Device Technology, Inc.

November 14, 2012

DSC-6777/2

IDT82V3010

T1/E1/OC3 Telecom Clock Generator with Dual Reference Inputs

TABLE OF CONTENTS

Pin Description...................................................................................................................................................................................................7

Functional Description ......................................................................................................................................................................................9

2.1 State Control Circuit ..................................................................................................................................................................................9

2.1.1 Normal Mode..............................................................................................................................................................................10

2.1.2 Fast Lock Mode..........................................................................................................................................................................10

2.1.3 Holdover Mode ...........................................................................................................................................................................10

2.1.4 Freerun Mode.............................................................................................................................................................................10

2.2 Frequency Select Circuit .........................................................................................................................................................................10

2.3 Reference Input Switch ...........................................................................................................................................................................10

2.4 Reference Input Monitor ..........................................................................................................................................................................11

2.5 Invalid Input Signal Detection ..................................................................................................................................................................11

2.6 TIE Control Block.....................................................................................................................................................................................11

2.7 DPLL Block..............................................................................................................................................................................................12

2.7.1 Phase Detector (PHD)................................................................................................................................................................12

2.7.2 Limiter.........................................................................................................................................................................................12

2.7.3 Loop Filter ..................................................................................................................................................................................13

2.7.4 Fraction Block.............................................................................................................................................................................13

2.7.5 Digital Control Oscillator (DCO)..................................................................................................................................................13

2.7.6 Lock Indicator .............................................................................................................................................................................13

2.7.7 Output Interface..........................................................................................................................................................................13

2.8 OSC.........................................................................................................................................................................................................14

2.8.1 Clock Oscillator ..........................................................................................................................................................................14

2.9 JTAG .......................................................................................................................................................................................................14

2.10 Reset, Lock and TIE Application .............................................................................................................................................................14

2.11 Power Supply Filtering Techniques .........................................................................................................................................................15

Measures of Performance ...............................................................................................................................................................................16

3.1 Intrinsic Jitter ...........................................................................................................................................................................................16

3.2 Jitter Tolerance........................................................................................................................................................................................16

3.3 Jitter Transfer ..........................................................................................................................................................................................16

3.4 Frequency Accuracy................................................................................................................................................................................16

3.5 Holdover Accuracy ..................................................................................................................................................................................16

3.6 Capture Range ........................................................................................................................................................................................16

3.7 Lock Range .............................................................................................................................................................................................16

3.8 Phase Slope ............................................................................................................................................................................................16

3.9 Time Interval Error (TIE)..........................................................................................................................................................................16

3.10 Maximum Time Interval Error (MTIE) ......................................................................................................................................................16

3.11 Phase Continuity .....................................................................................................................................................................................16

3.12 Phase Lock Time.....................................................................................................................................................................................17

Absolute Maximum Ratings ............................................................................................................................................................................18

Recommended DC Operating Conditions .....................................................................................................................................................18

DC Electrical Characteristics ..........................................................................................................................................................................18

6.1 Single End Input/Output Port...................................................................................................................................................................18

6.2 Differential Output Port (LVDS) ...............................................................................................................................................................19

AC Electrical Characteristics ..........................................................................................................................................................................20

7.1 Performance ............................................................................................................................................................................................20

7.2 Intrinsic Jitter Unfiltered ...........................................................................................................................................................................20

7.3 C1.5o (1.544 MHz) Intrinsic Jitter Filtered ...............................................................................................................................................21

7.4 C2o (2.048 MHz) Intrinsic Jitter Filtered ..................................................................................................................................................21

7.5 C19o (19.44 MHz) Intrinsic Jitter Filtered ................................................................................................................................................21

7.6 8 kHz Input to 8 kHz Output Jitter Transfer .............................................................................................................................................21

7.7 1.544 MHz Input to 1.544 MHz Output Jitter Transfer.............................................................................................................................22

7.8 2.048 MHz Input to 2.048 MHz Output Jitter Transfer.............................................................................................................................22

November 14, 2012

Table Of Contents

IDT82V3010

T1/E1/OC3 Telecom Clock Generator with Dual Reference Inputs

LIST OF FIGURES

Figure - 1

Figure - 2

Figure - 3

Figure - 4

Figure - 5

Figure - 6

Figure - 7

Figure - 8

Figure - 9

Figure - 10

Figure - 11

Figure - 12

Figure - 13

Figure - 14

Figure - 15

IDT82V3010 SSOP56 Package Pin Assignment ................................................................................................................................ 2

State Control Circuit ............................................................................................................................................................................ 9

State Control Diagram......................................................................................................................................................................... 9

TIE Control Block Diagram................................................................................................................................................................ 11

Reference Switch with TIE Control Block Enabled............................................................................................................................ 12

Reference Switch with TIE Control Block Disabled........................................................................................................................... 12

DPLL Block Diagram ......................................................................................................................................................................... 13

Clock Oscillator Circuit ...................................................................................................................................................................... 14

Power-Up Reset Circuit..................................................................................................................................................................... 14

IDT82V3010 Power Decoupling Scheme.......................................................................................................................................... 15

Timing Parameter Measurement Voltage Levels .............................................................................................................................. 26

Input to Output Timing (Normal Mode).............................................................................................................................................. 28

Output Timing 1................................................................................................................................................................................. 29

Output Timing 2................................................................................................................................................................................. 30

Input Control Setup and Hold Timing ................................................................................................................................................ 30

List of Figures

November 14, 2012

82V3010PVG Related Products

	82V3010PVG	82V3010PVG8
Description	Clock Generators & Support Products T1/E1/OC3 WAN PLL	Clock Generators & Support Products T1/E1/OC3 WAN PLL
Brand Name	Integrated Device Technology	Integrated Device Technology
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	SSOP	SSOP
package instruction	GREEN, SSOP-56	GREEN, SSOP-56
Contacts	56	56
Manufacturer packaging code	PVG56	PVG56
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
JESD-30 code	R-PDSO-G56	R-PDSO-G56
JESD-609 code	e3	e3
length	18.415 mm	18.415 mm
Humidity sensitivity level	1	1
Number of functions	1	1
Number of terminals	56	56
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	260
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.794 mm	2.794 mm
Nominal supply voltage	3.3 V	3.3 V
surface mount	YES	YES
Telecom integrated circuit types	TELECOM CIRCUIT	TELECOM CIRCUIT
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed	Matte Tin (Sn) - annealed
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	30	30
width	7.493 mm	7.493 mm
