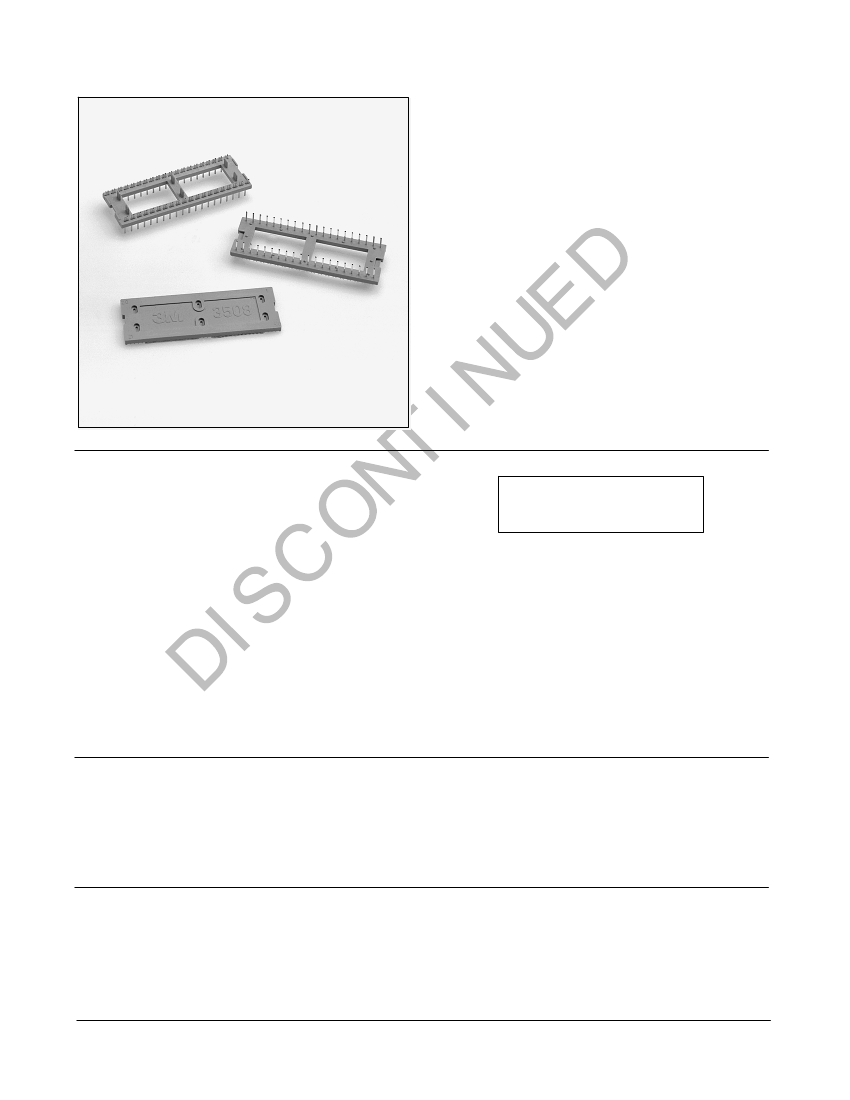

3M
™
Pak 100 DIP
.100″
×
.600″ 40 Position
3508 Series
S
Fits standard IC sockets
S
Strong legs, less susceptible to bending or
breaking
S
Gold or tin lead plating options
S
Round or rectangular contact leg options
S
Low profile
Date Modified: June 11, 2004
TS-0618-07
Sheet 1 of 2
Physical
Insulation
Insulation
Material:
Flammability:
Color:
Contact
Contact
Material:
Plating
Underplating:
U-Slot and Solder Tails:
File Replace by consolidated ts file:
Glass Filled Polyester (PBT)
UL94V-0
Gray
Copper Alloy
-N-
100
µ
″
[ 2.54
µ
m ] Nickel — QQ- -290, Class 2
-G-
30
µ
″
[ 0.76
µ
m ] Gold — MIL- -45204, Type II, Grade C or
-P-
200
µ
″
[ 0.76
µ
m ] 90/10 Tin Lead — MIL- -81728
Wire Accommodation:
26 and 28 AWG Solid or Stranded
Marking:
3M Logo, Part Identification and Contact Position Numbers
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1
×
10
9
Ω
at 500 VDC
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
Temperature Rating:
-
-55°C to +105°C
UL File No.: E68080
3
Interconnect Solutions
http://www.3M.com/interconnects/
data_pp (For Web PDF Output)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related
to 3M’s products are based on information believed to be reliable,
but the accuracy or completeness is not guaranteed. Before using
this product, you must evaluate it and determine if it is suitable for
your intended application. You assume all risks and liability
associated with such use. Any statements related to the product
which are not contained in 3M’s current publications, or any
contrary statements contained on your purchase order shall have
no force or effect unless expressly agreed upon, in writing, by an
authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture
for a period of 1 year from the date of purchase.
3M MAKES NO
OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at
3M’s option, to replace or repair the 3M product or refund the
purchase price of the 3M product.
Except where prohibited by
law, 3M will not be liable for any loss or damage arising from
this 3M product, whether direct, indirect, special, incidental or
consequential regardless of the legal theory asserted.
3
Electronic Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
www.3M.com/esd
© 3M 2004
3M
™

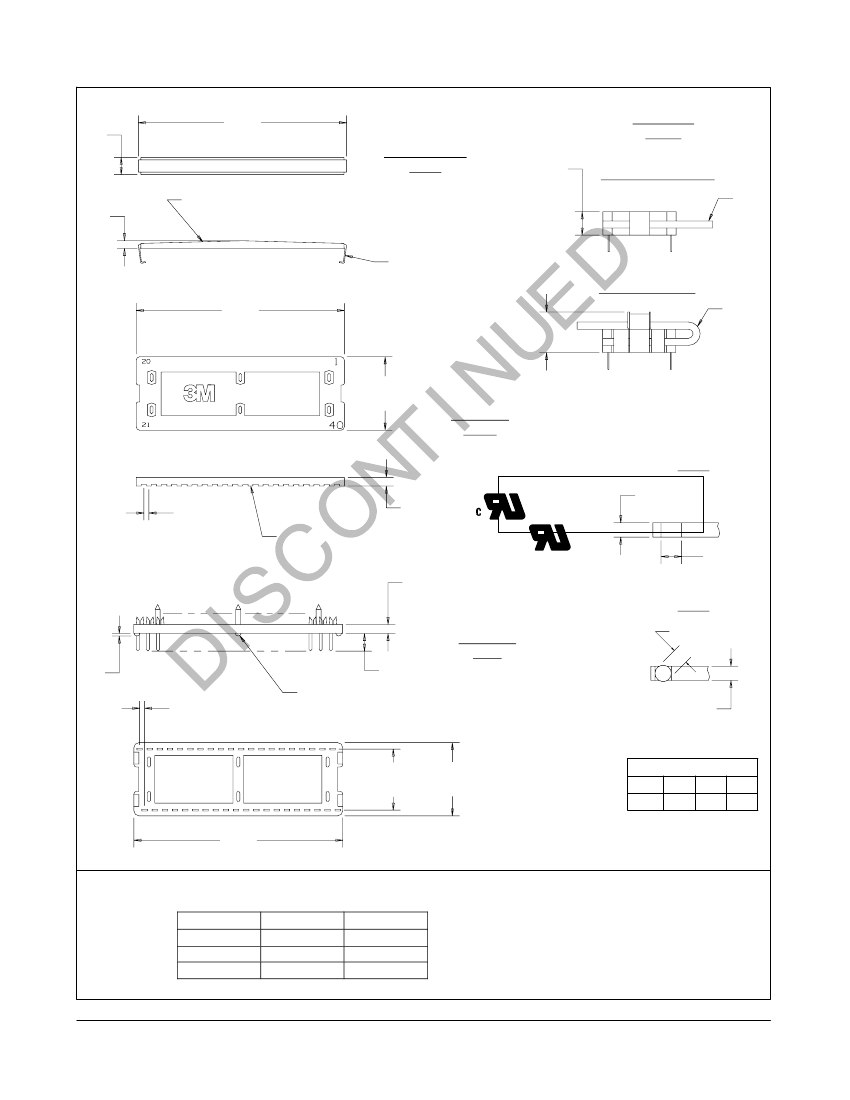

Pak 100 DIP
2.05
[ 52.0 ]
.100″
×
.600″ 40 Position
.23
[ 5.8 ]
3508 Series
Assembled
Height
Optional Strain
Relief
.23 Ref
[ 5.8 ]
Without Strain Relief
Cable
.11
[ 2.8 ]
Gray Glass Filled Polyester
Stainless Steel
.015 [ 0.38 ] Thick
With Strain Relief
2.05
[ 52.1 ]
Cable
.38 Ref
[ 9.6 ]
3508
.72
[ 18.4 ]
Connector
Cover
-0000
.09
[ 2.2 ]
File Replace by consolidated ts file:.001
.014
±
[ 0.36 ]
.050 Typ
[ 1.27 ]
Nonconductive Transfer
Adhesive with Liner
®
®
.018
±
.001
[ 0.48 ]
.09
[ 2.3 ]
-0002
Connector
Body
.02
[ 0.6 ]
Solder Washpads
.050 Ref
[ 1.27 ]
.173
±
.010
[ 4.39 ]
.014
[ 0.36 ]
.017 Dia
[ 0.43 ]
Inch
[mm]
.60
[ 15.2 ]
.72
[ 18.3 ]
.0
Inch
2.06
[ 52.2 ]
±.1
Tolerance Unless Noted
.00
±.01
.000
±.005
[ ] Dimensions for
Reference only
Ordering Information
3M Part Number
3508-0000
3508-0000T
3508-0002
Connector
Contact Type
Rect
Rect
Round
Contact Plating
Gold
Tin Lead
Gold
Strain Relief
3448-18
(Order Separately)
TS-0618-07
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
data_pp (For Web PDF Output)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
