5082-3305 datasheet, PDF - EEWORLD Datasheet

5082-3305: DescriptionPin Diode, 70V V(BR), Silicon,; Categorydiode The PIN diode; File Size68KB，3 Pages; ManufacturerHP（Keysight）; Websitehttp://www.semiconductor.agilent.com/

Download Datasheet Parametric Compare View All

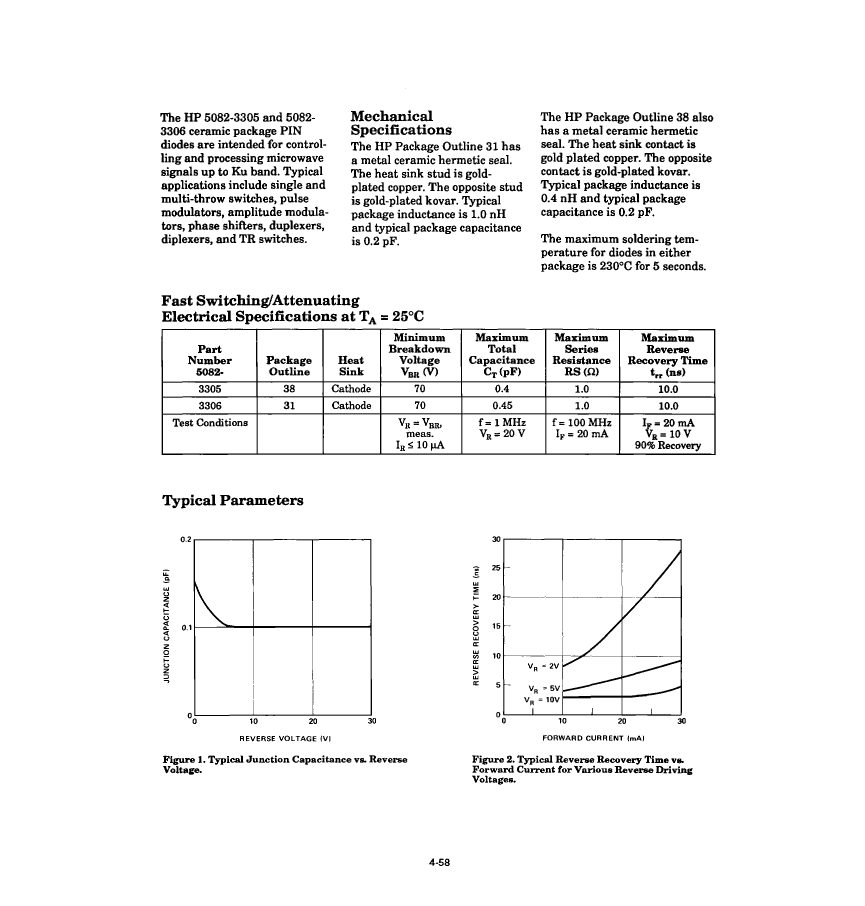

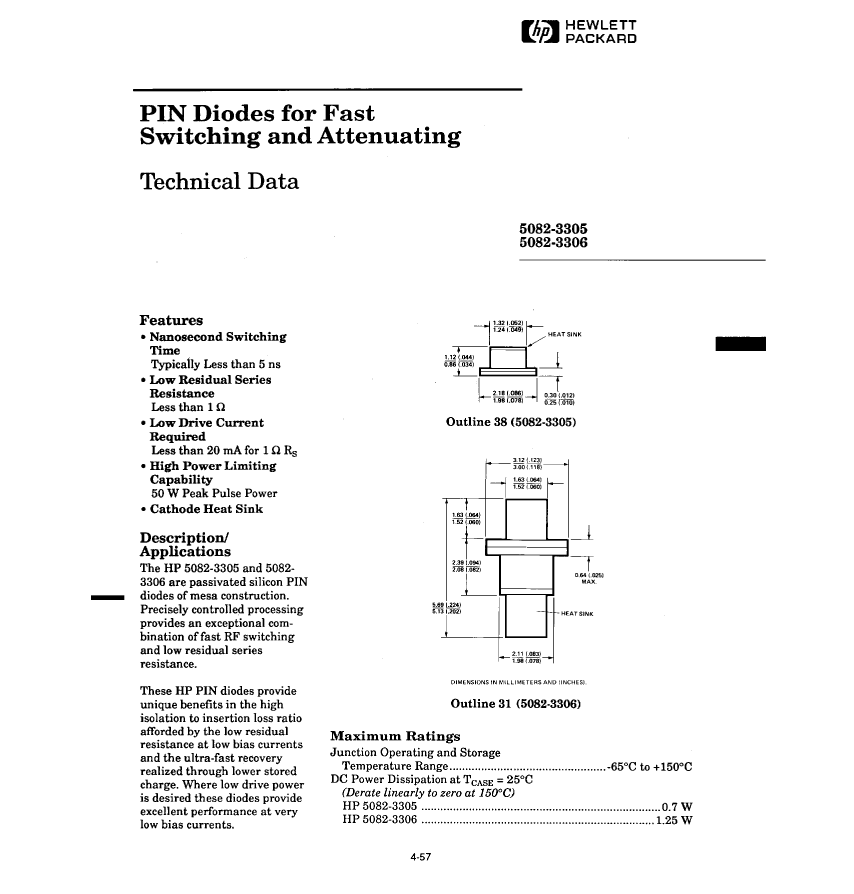

5082-3305 Overview

Pin Diode, 70V V(BR), Silicon,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	HP（Keysight）
package instruction	O-CEMW-N2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
application	ATTENUATOR; SWITCHING
Minimum breakdown voltage	70 V
Configuration	SINGLE
Maximum diode capacitance	0.4 pF
Nominal diode capacitance	0.4 pF
Diode component materials	SILICON
Maximum diode forward resistance	1 Ω
Diode resistance test current	20 mA
Diode resistance test frequency	100 MHz
Diode type	PIN DIODE
frequency band	KU BAND
JESD-30 code	O-CEMW-N2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	MICROWAVE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.7 W
Certification status	Not Qualified
Reverse test voltage	20 V
surface mount	YES
technology	POSITIVE-INTRINSIC-NEGATIVE
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

	5082-3305	5082-3306
Description	Pin Diode, 70V V(BR), Silicon,	Pin Diode, 70V V(BR), Silicon,
Is it Rohs certified?	incompatible	incompatible
Maker	HP（Keysight）	HP（Keysight）
package instruction	O-CEMW-N2	O-CEMW-N2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
application	ATTENUATOR; SWITCHING	ATTENUATOR; SWITCHING
Minimum breakdown voltage	70 V	70 V
Configuration	SINGLE	SINGLE
Maximum diode capacitance	0.4 pF	0.45 pF
Nominal diode capacitance	0.4 pF	0.45 pF
Diode component materials	SILICON	SILICON
Maximum diode forward resistance	1 Ω	1 Ω
Diode resistance test current	20 mA	20 mA
Diode resistance test frequency	100 MHz	100 MHz
Diode type	PIN DIODE	PIN DIODE
frequency band	KU BAND	KU BAND
JESD-30 code	O-CEMW-N2	O-CEMW-N2
Number of components	1	1
Number of terminals	2	2
Maximum operating temperature	150 °C	150 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND
Package form	MICROWAVE	MICROWAVE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Maximum power dissipation	0.7 W	1.25 W
Certification status	Not Qualified	Not Qualified
Reverse test voltage	20 V	20 V
surface mount	YES	YES
technology	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE
Terminal form	NO LEAD	NO LEAD
Terminal location	END	END
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
