BA232050R0KE

Description
Wirewound Resistors - Chassis Mount 50 Ohm 700W 10% LG: 320mm
CategoryPassive components
File Size467KB,2 Pages
ManufacturerOhmite
Websitehttps://www.ohmite.com
Environmental Compliance
Download Datasheet Parametric Compare View All

BA232050R0KE Online Shopping

Suppliers Part Number Price MOQ In stock
BA232050R0KE - - View Buy Now

BA232050R0KE Overview

Wirewound Resistors - Chassis Mount 50 Ohm 700W 10% LG: 320mm

BA232050R0KE Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerOhmite
Product CategoryWirewound Resistors - Chassis Mount
RoHSDetails
Resistance50 Ohms
Power Rating700 W
Tolerance10 %
Temperature Coefficient-
Voltage Rating800 V
Length320 mm
Width30 mm
Height100 mm
PackagingBulk
FeaturesAluminum Housed Resistors
TechnologyWirewound
Termination StyleWire Lead
Mounting StyleChassis Mount
Factory Pack Quantity1

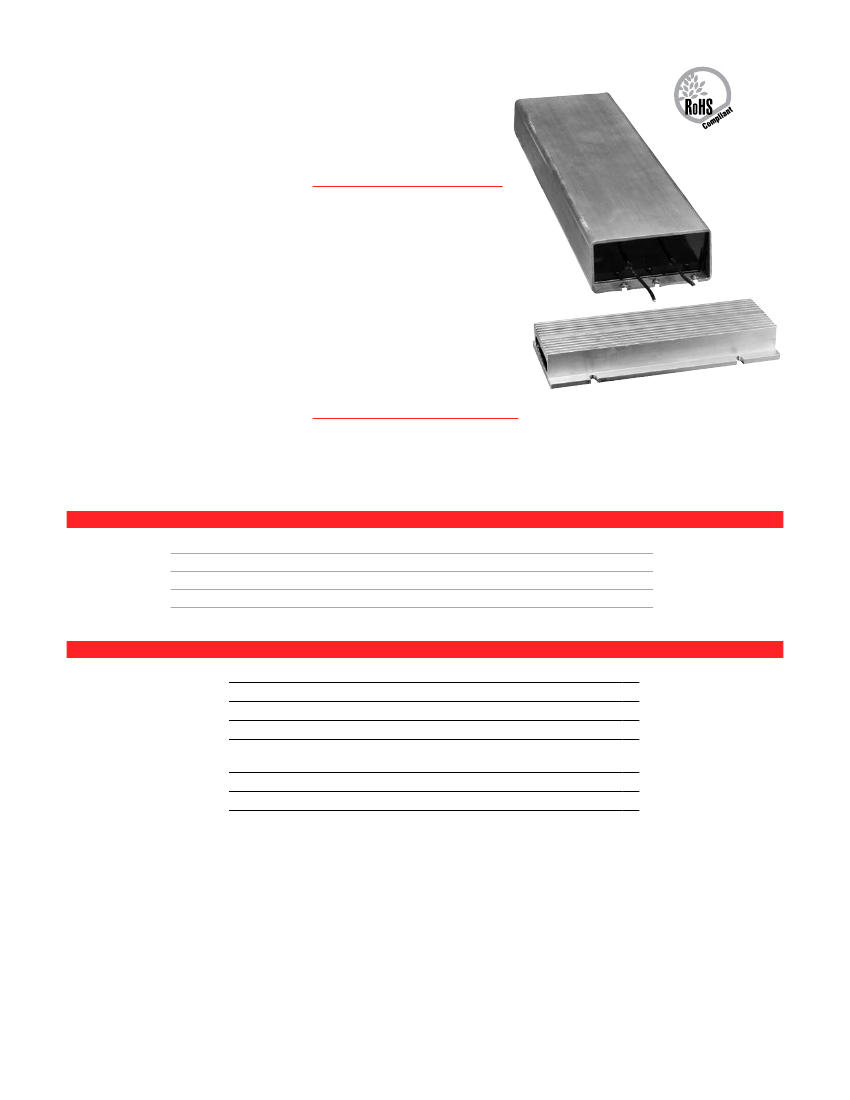

BA Series
Aluminum Cased Resistor
Our Aluminum housed brake
resistors are designed for high
power and provide great stabil-
ity. These resistors are con-
structed using wirewound on
ceramic cores and isolated using
a mica sheet for high dielectric
properties. The aluminum house
is filled with a high thermal con-
ductivity material to ensure quick
heat dissipation during contin-
ues applications. With the ability
to have a thermal cut off switch
embedded inside the aluminum
housing, makes the BA series
ideal for any safety application.
F e At u r e S
• Three extrusion forms
available
• Heatsinkable
• Rugged design
• Up to 1000 watts
• Thermal cut-off available
• Scalable, custom lengths
available
• Custom leads available
A p p l i c At i o n S
• Dynamic Braking
• Motor Starting
• Power Control
S e r i e S S p e c i F i c At i o n S
Series
BA1160
BA2320
BA3266
*Free air rating
Wattage*
500
700
1000
Resistance range
0.5Ω - 18KΩ
10Ω - 10KΩ
10Ω - 10KΩ
Tolerance
±10%
±10%
±10%
Length
160mm
320mm
266mm
chArActeriSticS
Overload
10 times rated wattage for 5 sec.
Power Rating
Free air; greater with heatsink
Dielectric Withstanding Voltage
2.5KV, 1 min., 50/60 Hz
Insulation Resistance
≥100MΩ
Working Voltage
1000V not to exceed max power
rating
Max. Surface Temp.
385°C
Wire
UL listed 1199 PTFE 12 AWG
(continued)
128
1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
