STW10NC60
STH10NC60FI
N-CHANNEL 600V - 0.6Ω - 10A - TO-247/ISOWATT218
PowerMesh™II MOSFET
TYPE
STW10NC60
STH10NC60FI
s
s
s
s
s
V
DSS
600 V
600 V
R
DS(on)
< 0.75
Ω
< 0.75
Ω
I
D
10 A
10 A (*)
TYPICAL R
DS
(on) = 0.6
Ω
EXTREMELY HIGH dv/dt CAPABILITY
100% AVALANCHE TESTED
NEW HIGH VOLTAGE BENCHMARK
GATE CHARGE MINIMIZED
TO-247
3
3
2
1
2
1
DESCRIPTION
The PowerMESH
™
II is the evolution of the first
generation of MESH OVERLAY
™.
The layout re-
finements introduced greatly improve the Ron*area
figure of merit while keeping the device at the lead-
ing edge for what concerns swithing speed, gate
charge and ruggedness.
APPLICATIONS
s
HIGH CURRENT, HIGH SPEED SWITCHING
s
SWITH MODE POWER SUPPLIES (SMPS)
s
DC-AC CONVERTERS FOR WELDING
EQUIPMENT AND UNINTERRUPTIBLE
POWER SUPPLIES AND MOTOR DRIVER
ISOWATT218
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol
V
DS
V
DGR
V
GS
I
D
I
D
I
DM
(1)
P
TOT
dv/dt
V
ISO
T
stg
T
j
.
Parameter
Drain-source Voltage (V
GS
= 0)
Drain-gate Voltage (R
GS
= 20 kΩ)
Gate- source Voltage
Drain Current (continuous) at T
C
= 25°C
Drain Current (continuous) at T
C
= 100°C
Drain Current (pulsed)
Total Dissipation at T
C
= 25°C
Derating Factor
Peak Diode Recovery voltage slope
Insulation Withstand Voltage (DC)
Storage Temperature
Max. Operating Junction Temperature
-
10
6.3
40
160
1.28
Value
STW10NC60
600
600
±30
10 (*)
6.3 (*)
40 (*)
60
0.48
3.5
2500
– 55 to 150
(1)I
SD
≤10A,
di/dt
≤100A/µs,
V
DD
≤
V
(BR)DSS
, T
j
≤
T
JMAX
(*) Limited only by Maximum Temperature Allowed
Unit
V
V
V
A
A
A
W
W/°C
V/ns
V
°C
STH10NC60FI
(•)Pulse width limited by safe operating area
February 2002
1/9
STW10NC60 / STH10NC60FI
THERMAL DATA
TO-247
Rthj-case
Rthj-amb
T
l
Thermal Resistance Junction-case Max
Thermal Resistance Junction-ambient Max
Maximum Lead Temperature For Soldering Purpose
0.78
30
300
ISOWATT218
2.08
°C/W
°C/W
°C
AVALANCHE CHARACTERISTICS
Symbol
I
AR
E
AS
Parameter
Avalanche Current, Repetitive or Not-Repetitive
(pulse width limited by T
j
max)
Single Pulse Avalanche Energy
(starting T
j
= 25 °C, I
D
= I
AR
, V
DD
= 50 V)
Max Value
10
820
Unit
A
mJ
ELECTRICAL CHARACTERISTICS
(TCASE = 25 °C UNLESS OTHERWISE SPECIFIED)
OFF
Symbol
V
(BR)DSS
I
DSS
I
GSS
Parameter
Drain-source
Breakdown Voltage
Zero Gate Voltage
Drain Current (V
GS
= 0)
Gate-body Leakage
Current (V
DS
= 0)
Test Conditions
I
D
= 250 µA, V
GS
= 0
V
DS
= Max Rating
V
DS
= Max Rating, T
C
= 125 °C
V
GS
= ±30V
Min.
600
1
50
±100
Typ.
Max.
Unit
V
µA
µA
nA
ON (1)
Symbol
V
GS(th)
R
DS(on)
Parameter
Gate Threshold Voltage
Static Drain-source On
Resistance
Test Conditions
V
DS
= V
GS
, I
D
= 250µA
V
GS
= 10V, I
D
= 4.5 A
Min.
2
Typ.
3
0.6
Max.
4
0.75
Unit
V
Ω
DYNAMIC
Symbol
g
fs
(1)
C
iss
C
oss
C
rss
Parameter
Forward Transconductance
Input Capacitance
Output Capacitance
Reverse Transfer
Capacitance
Test Conditions
V
DS
=20 V
,
I
D
= 4.5A
V
DS
= 25V, f = 1 MHz, V
GS
= 0
Min.
Typ.
9
1420
205
35
Max.
Unit
S
pF
pF
pF
2/9
STW10NC60 / STH10NC60FI
ELECTRICAL CHARACTERISTICS
(CONTINUED)
SWITCHING ON
Symbol
t
d(on)
t
r
Q
g
Q
gs
Q
gd
Parameter
Turn-on Delay Time
Rise Time
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Test Conditions
V
DD
= 300V, I
D
= 4.5 A
R
G
= 4.7Ω V
GS
= 10V
(see test circuit, Figure 3)
V
DD
= 480V, I
D
= 9.0 A,
V
GS
= 10V
Min.
Typ.
20
16
55
4.5
31
77
Max.
Unit
ns
ns
nC
nC
nC
SWITCHING OFF
Symbol
t
d(off)
t
f
t
r(Voff)
t
f
t
c
Parameter
Turn-off Delay Time
Fall Time
Off-voltage Rise Time
Fall Time
Cross-over Time
Test Conditions
V
DD
= 300 V, I
D
= 4.5 A
R
G
= 4.7Ω V
GS
= 10 V
(Resistive Load see, Figure 3)
V
DD
= 480V, I
D
= 9.0 A,
R
G
= 4.7Ω, V
GS
= 10V
(Inductive Load see, Figure 5)
Min.
Typ.
64
32
19
13
32
Max.
Unit
ns
ns
ns
ns
ns
SOURCE DRAIN DIODE
Symbol
I
SD
I
SDM
(2)
V
SD
(1)
t
rr
Q
rr
I
RRM
Parameter
Source-drain Current
Source-drain Current (pulsed)
Forward On Voltage
Reverse Recovery Time
Reverse Recovery Charge
Reverse Recovery Current
I
SD
= 9 A, V
GS
= 0
I
SD
= 9 A, di/dt = 100A/µs,
V
DD
= 100V, Tj = 150°C
(see test circuit, Figure 5)
600
4.7
15.5
Test Conditions
Min.
Typ.
Max.
10
40
1.6
Unit
A
A
V
ns
µC
A
Note: 1. Pulsed: Pulse duration = 300 µs, duty cycle 1.5 %.
2. Pulse width limited by safe operating area.
Safe Operating Area for TO-247
Safe Operating Area for ISOWATT218
3/9
STW10NC60 / STH10NC60FI

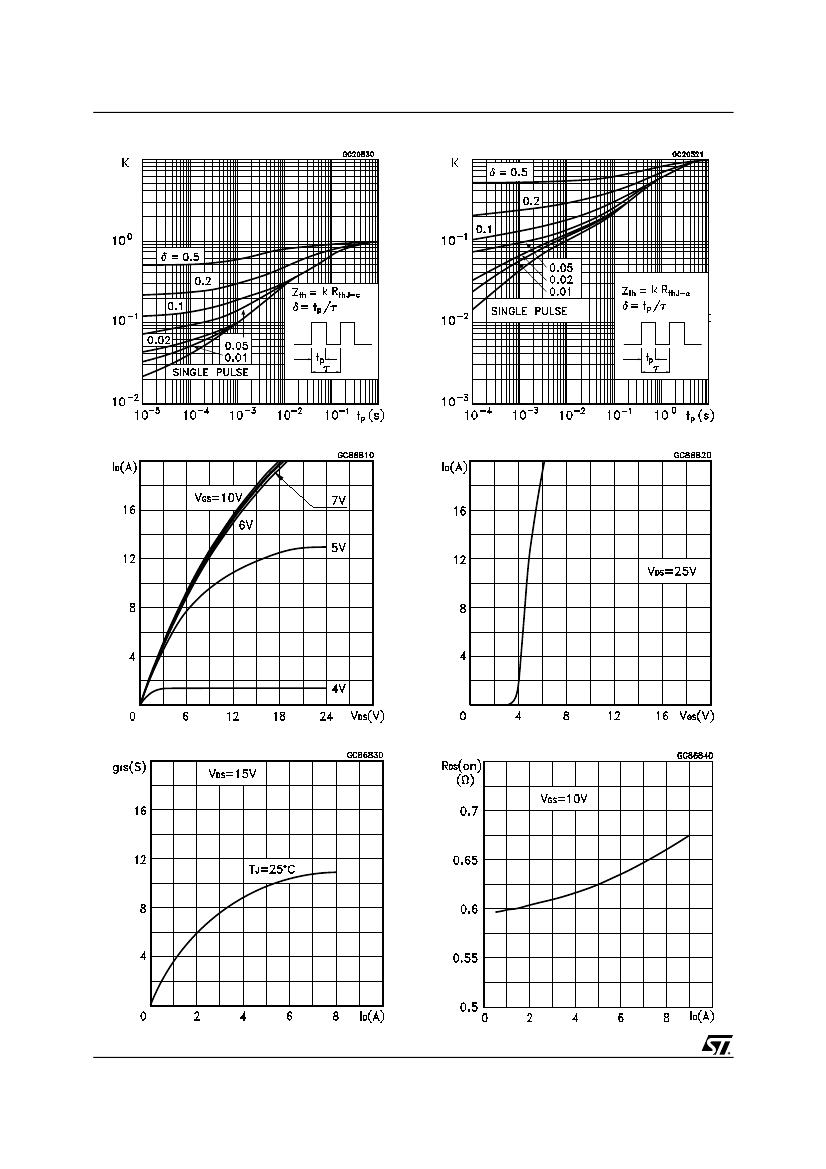

Thermal Impedance for TO-247
Thermal Impedance for ISOWATT218
Output Characteristics
Transfer Characteristics
Transconductance
Static Drain-source On Resistance
4/9
STW10NC60 / STH10NC60FI

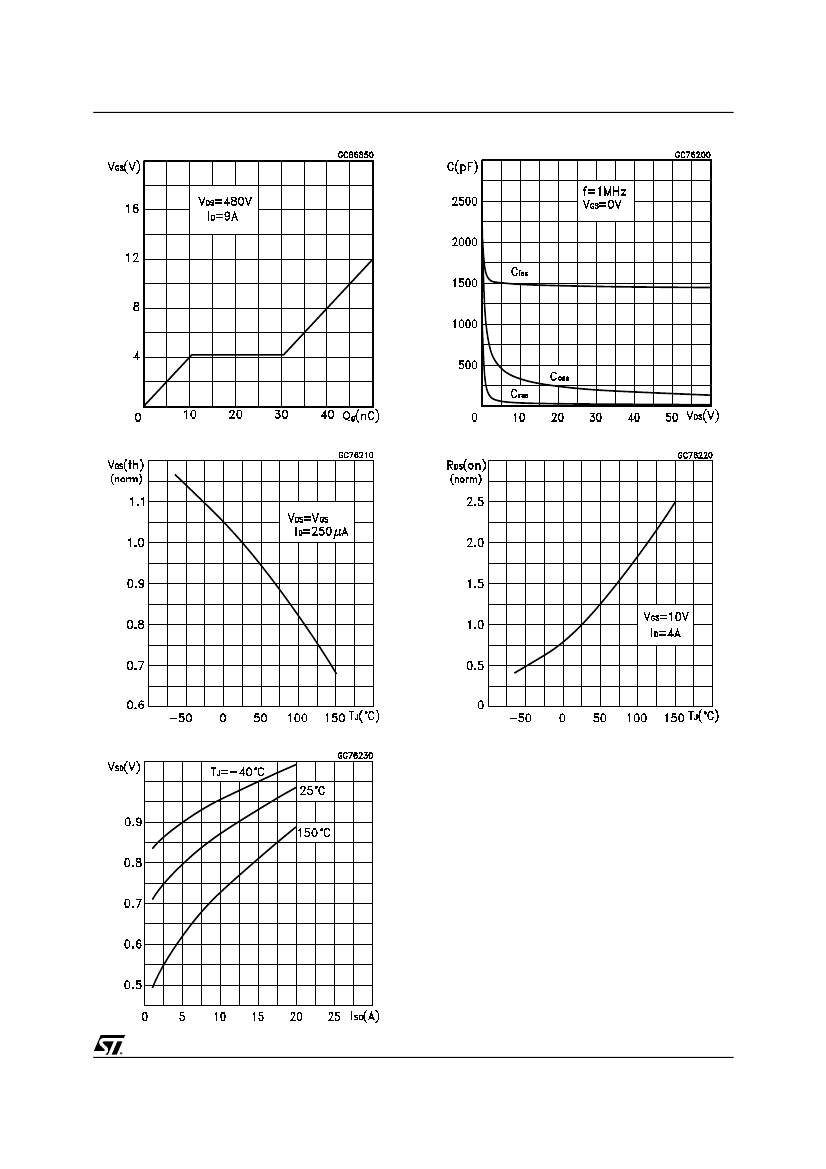

Gate Charge vs Gate-source Voltage
Capacitance Variations
Normalized Gate Thereshold Voltage vs Temp.
Normalized On Resistance vs Temperature
Source-drain Diode Forward Characteristics
5/9
