FLAG56O0706KH Overview

Film Capacitors 690volts 70uF 10%

FLAG56O0706KH Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	AVX
Product Category	Film Capacitors
Termination Style	-
Capacitance	70 uF
Packaging	Bulk
Factory Pack Quantity	8

Preview

Download Datasheet

View All

Medium Power Film Capacitors

FLA (RoHS Compliant)

The FLA series uses metallized polypropylene dielectric, alu-

minum can, impregnated with soft PU specially treated to

have a very high dielectric strength in operating conditions up

to 85°C.

The FLA has been designed with overpressure disconnected

device. They are suitable for output AC filtering for power

converters, UPS systems, solar inverters and motor drives

etc.

APPLICATIONS

• The FLA capacitor is particularly designed for AC filtering

HOT SPOT CALCULATION

See Hot Spot Temperature, page 70.

hot spot

ambient

+ (P

+ P

) x R

with P

(Dielectric losses) = Q x tgδ

Q x tgδ

⇒

[

⁄

x C

x (V

peak

)

x f ] x tgδ

tgδ

(tan delta)

For polypropylene, tgδ

= 2 x 10

-4

for frequencies

up to 1MHz and is independent of temperatures.

(Thermal losses) = R

x (I

rms

)

where

in Farad

rms

in Ampere

f in Hertz

in °C

V in Volt

in Ohm

in °C/W

WORKING TEMPERATURE

According to the power to be dissipated

-40°C to +85°C

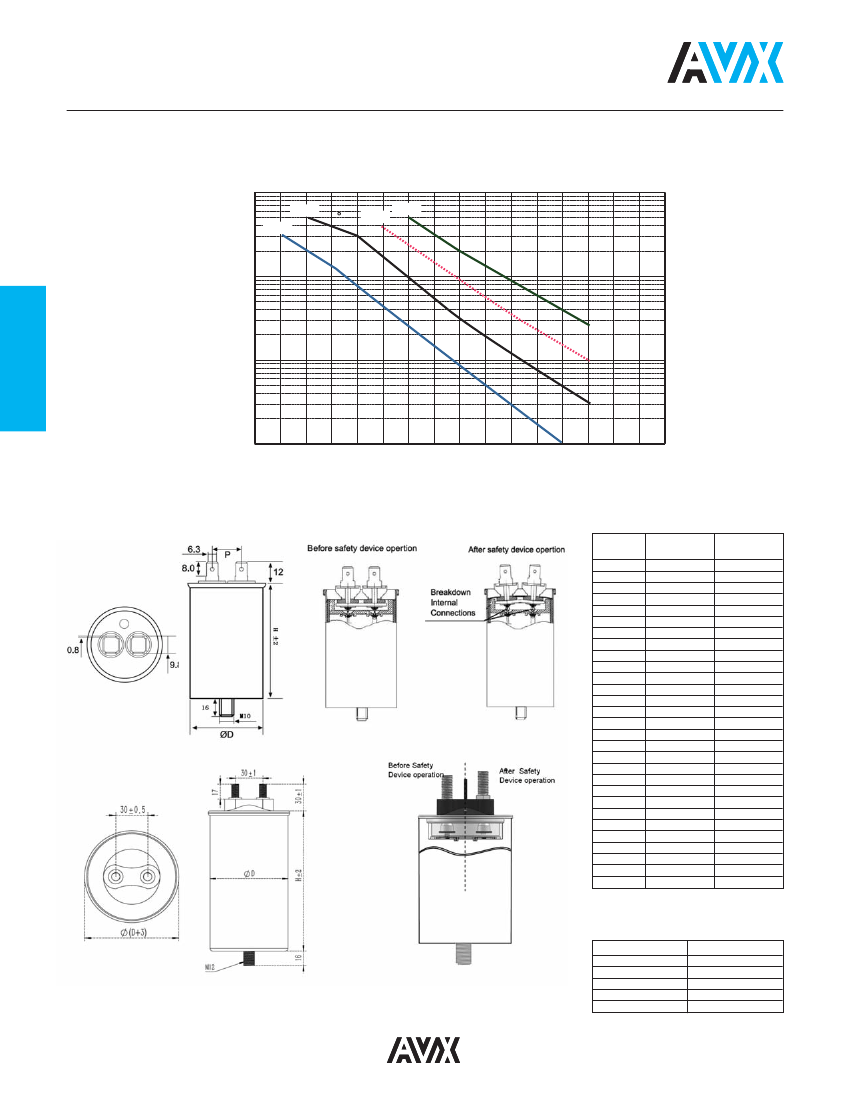

LIFETIME EXPECTANCY

PACKAGING MATERIAL

• Aluminium can with soft PU

One unique feature of this technology (as opposed to alu-

minum electrolytics) is how the capacitor reacts at the end of

its lifetime.

Unlike aluminum electrolytic film capacitors do not have a

catastrophic failure mode. Film capacitors simply experience

a parametric loss of capacitance of about 5% from initial

value, with no risk of short circuit.

The capacitor continues to be functional even after this 5%

decrease.

STANDARDS

IEC 61071-1, IEC 61071-2: Power electronic capacitors

HOW TO ORDER

FLA

Series

Case

A1-A2

B1-B4

E1-E8

F1-F5

G1-G6

H1-H2

Dielectric

6 = Polypropylene

Voltage

A = 250V

H = 330V

L = 450V

M = 480V

J = 550V

R = 600V

N = 660V

O = 690V

0606

Capacitance

EIA Code

0606 = 60uF

Tolerances

J = ±5%

K = ±10%

Terminal Code

F = Fast-on terminals

H = M8 screw terminals

120915

AC FILTERING
