PV2-10R-XY datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> PV2-10R-XY

PV2-10R-XY: DescriptionTerminals Ring Term large wire vinyl insulat; CategoryThe connector terminals; File Size85KB，1 Pages; ManufacturerPanduit; Websitehttp://www.panduit.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PV2-10R-XY Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PV2-10R-XY	-	-	View	Buy Now

PV2-10R-XY Overview

Terminals Ring Term large wire vinyl insulat

PV2-10R-XY Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Panduit
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	8 weeks
Terminal and terminal strip types	RING TERMINAL
Wire gauge	2 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

PANDUIT

PART NUMBER

PV2-10R

PV2-14R

PV2-56R

STUD

SIZE

#10

1/4"

DIMENSIONS

.03

.01

in.

.03

THIS COPY IS PROVIDED ON A RESTRICTED BASIS AND IS NOT TO BE USED IN ANY WAY DETRIMENTAL TO THE INTERESTS OF PANDUIT CORP.

.01

.02

.20

.68

1.96

.58

1.62

(17.27)

(49.78)

(14.73)

(41.15) (5.08)

PV2-38R

PV2-12R

NOTES:

.68

.58

.27

1.96

1.62

(17.27)

(14.73)

(49.78)

(41.15) (6.86)

1.62

.68

.58

1.96

.33

5/16"

(41.15) (8.38)

(17.27)

(14.73)

(49.78)

.68

.58

1.96

1.62

.39

3/8"

(17.27)

(14.73)

(49.78)

(41.15) (9.91)

1/2"

.52

2.05

1.62

.86

.58

(52.07)

(41.15) 13.21)

(21.84)

(14.73)

H DIA

TERMINAL

C RAD

UL LISTED FOR:

A. 600V MAX VOLTAGE RATING

B. 221 F (105 C) MAX TEMP RATING

C. #2 AWG STRANDED COPPER WIRE

SEE www.panduit.com FOR PART NUMBER

SUFFIX DESIGNATION FOR PACKAGE SIZE.

MATERIAL:

A. STAMPING - .060" (1.52)THK COPPER,

TIN PLATED

B. HOUSING - VINYL, RED

BRAZED

SEAM

HOUSING

4. DIMENSIONS IN BRACKETS ARE IN MILLIMETERS

5. INSTALLATION TOOL:

6. WIRE STRIP LENGTH:

CT-720, CD-720PV8-2,

1/2" +1/32

-0

[12.7 + 0.8

- 0

LISTED

587H

E52164

.560 (14.22)

MAX WIRE

INSUL DIA

TITLE

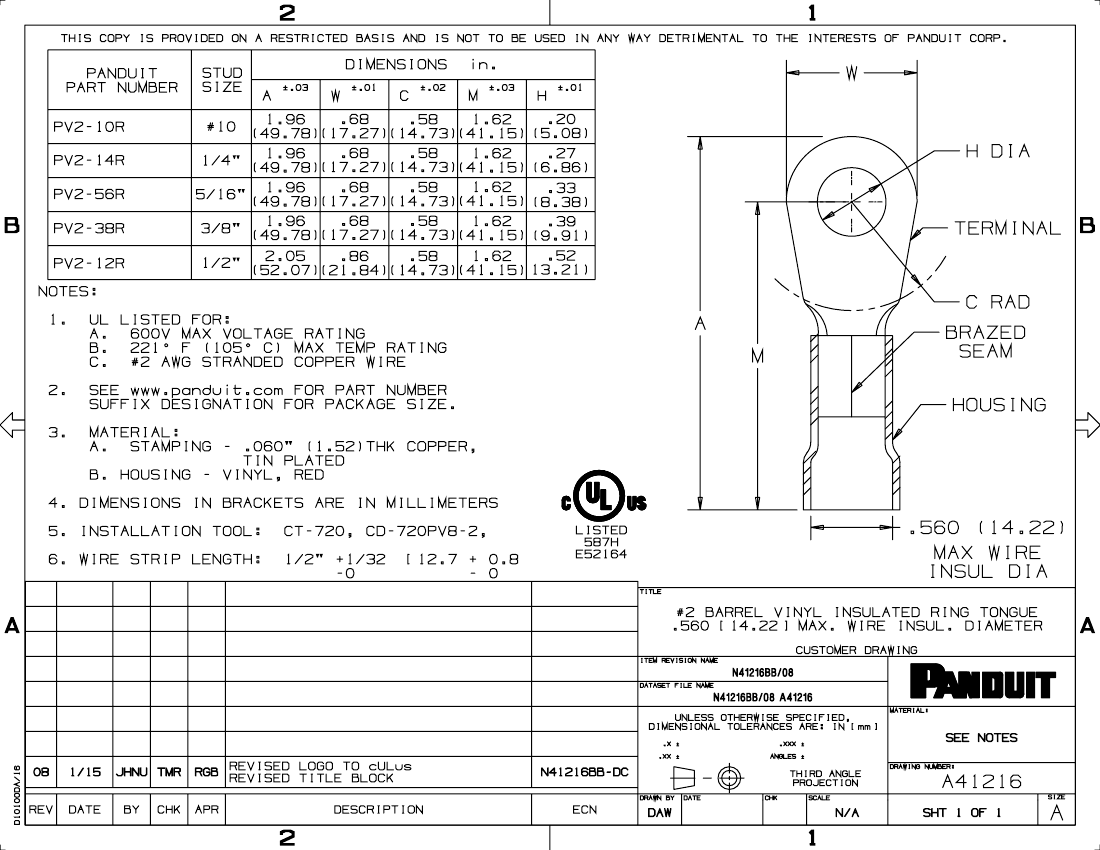

#2 BARREL VINYL INSULATED RING TONGUE

.560 [14.22] MAX. WIRE INSUL. DIAMETER

CUSTOMER DRAWING

ITEM REVISION NAME

N41216BB/08

DATASET FILE NAME

N41216BB/08

A41216

MATERIAL:

UNLESS OTHERWISE SPECIFIED,

DIMENSIONAL TOLERANCES ARE: IN [mm]

.XX

.XXX

ANGLES

DRAWING NUMBER:

SEE NOTES

D10100DA/16

REV

1/15

DATE

JHNU

TMR

CHK

REVISED LOGO TO cULus

RGB

REVISED TITLE BLOCK

APR

DESCRIPTION

N41216BB-DC

DRAWN BY

DATE

CHK

THIRD ANGLE

PROJECTION

SCALE

A41216

SIZE

ECN

DAW

N/A

SHT 1 OF 1
