34792-0080 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 34792-0080

34792-0080: DescriptionAutomotive Connectors 8P 1R MINI50 HEADER VERT UNSEALED BLACK; CategoryThe connector The connector; File Size42KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

34792-0080 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	34792-0080	-	-	View	Buy Now

34792-0080 Overview

Automotive Connectors 8P 1R MINI50 HEADER VERT UNSEALED BLACK

34792-0080 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
Samacsys Description	Automotive Connectors 8P 1R MINI50 HEADER VERT UNSEALED BLACK
Other features	MINI50, POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	NICKEL
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	34792
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

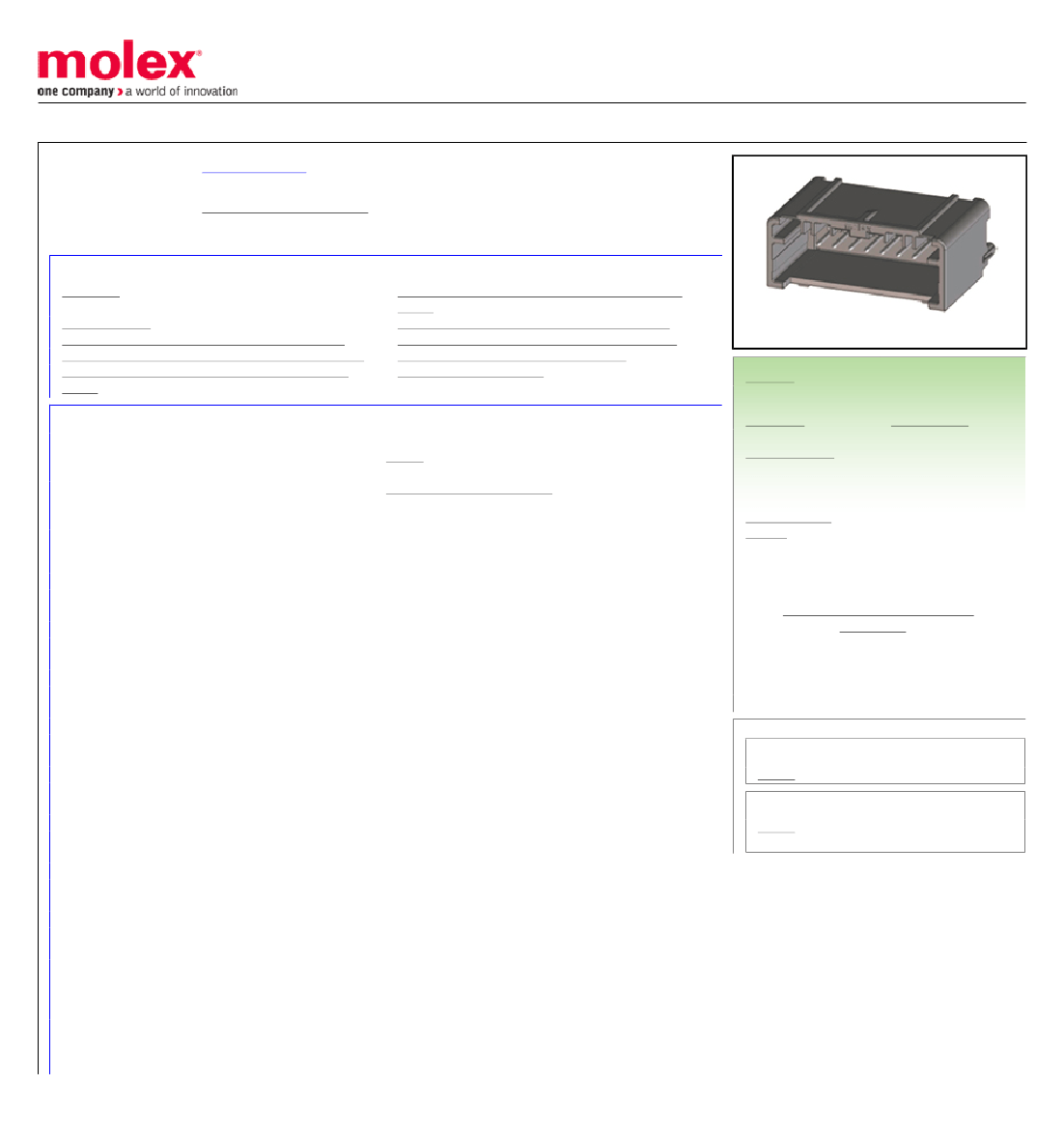

Preview

Download Datasheet

View All

This document was generated on 02/26/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0347920080

Active

Mini50 Connection Systems

Mini50 Unsealed Vertical Header, Single Row, 8 Circuit, Polarization Option A, Black,

Tray

Documents:

3D Model

Drawing (PDF)

Product Specification PS-34791-020-001 (PDF)

Application Specification AS-34791-020-001 (PDF)

Application Specification AS-34791-020-CH-001

(PDF)

General

Product Family

Series

Application

Overview

Product Literature Order No

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

Packaging Type

Pitch - Mating Interface

Polarized to Mating Part

Polarized to PCB

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Application Specification AS-34791-020-FR-001

(PDF)

Packaging Specification PK-31301-440 (PDF)

Packaging Specification PK-47799-0001 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

EU ELV

Compliant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Relevant

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Relevant

Compliant

Not Contained

PCB Headers

34792

Power, Signal, Wire-to-Board

Mini50 Connection Systems

987650-5442

Mini50

884982492851

Black

Yes

Brass

Tin over Nickel

Polyester Alloy

1.541/g

Vertical

2.90mm

Yes

Tray

2.00mm

Yes

-40°C to +105°C

Through Hole

4.0A

500V DC

Search Parts in this Series

34792 Series

Mates With

34791 Mini50 Unsealed Single Row

Receptacle

Recommended Resources
