85003-0646 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85003-0646

85003-0646: DescriptionDIN 41612 Connectors DIN CONECTOR MALE TOR MALE 850030646; CategoryThe connector The connector; File Size45KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

85003-0646 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	85003-0646	-	-	View	Buy Now

85003-0646 Overview

DIN 41612 Connectors DIN CONECTOR MALE TOR MALE 850030646

85003-0646 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 603-2
body width	0.437 inch
subject depth	0.461 inch
body length	3.701 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (24) OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9452 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	24u inch
polarization key	ENDS
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

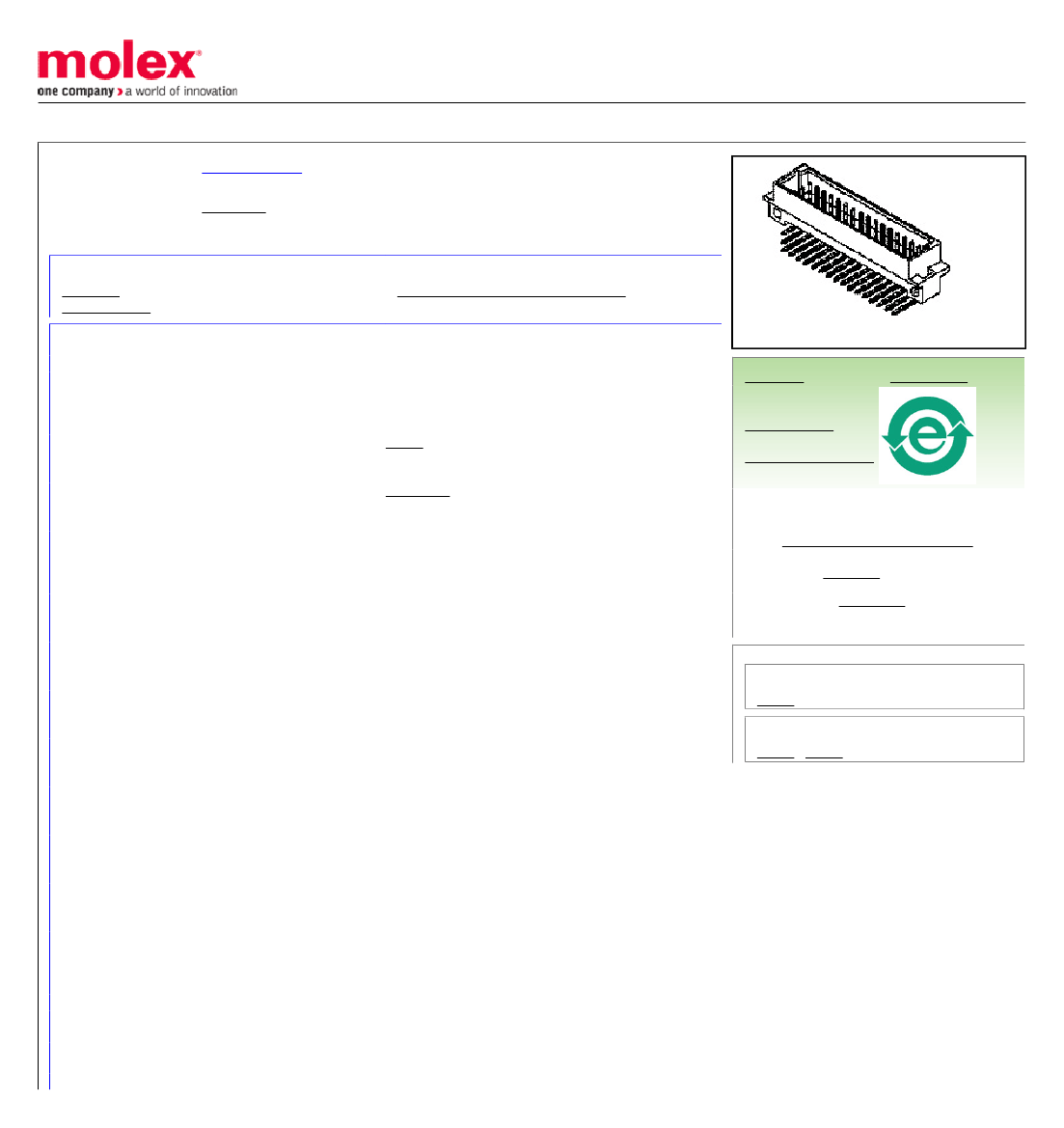

This document was generated on 09/05/2013

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

85003-0646

Active

DIN 41612

2.54mm Pitch DIN 41612 Header, Right Angle, Through Hole, Style C, 0.60µm

Selective Gold (Au), 64 Circuits, Lead-Free

Documents:

3D Model

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Series

Agency Certification

CSA

LR19980

E29179

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Not Low-Halogen

China RoHS

General

Product Family

Series

Application

Component Type

Overview

Product Name

Style

UPC

Backplane Connectors

85003

Daughtercard

PCB Header

DIN 41612

IEC 603-2/DIN 41612

800756443751

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Circuits (Loaded)

Circuits (maximum)

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Plating Mating

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

400

Yes

94V-0

Yes

Gold

11.854/g

Open Pin Field

Right Angle

3.00mm

Yes

1.60mm

Tray

2.54mm

Yes

-55°C to +125°C

Through Hole

Search Parts in this Series

85003Series

Mates With

85042 , 85052 Backplane Header

Electrical

Current - Maximum per Contact

Data Rate

Voltage - Maximum

2.5A

622.0 Mbps

250V AC (RMS)

Solder Process Data

Duration at Max. Process Temperature (seconds)

Recommended Resources

Triac zero voltage conversion circuit

Bridge Measurement - 0 to 5V Voltage Isolated Output Circuit

Delay circuit using 555 time base integrated circuit 6

LinkSwitch-PL series LED driver circuit diagram

Use three voltage regulator star connections to obtain 0-433V voltage circuit diagram

Has anyone used the LMH6505 chip? Can it solve the problem of gain adjustment and bias?: [b]Has anyone used the LMH6505 chip? Can it solve the problem of gain adjustment and offset? [/b]...; lyf870615 Analog electronics

Why does this program display abnormally on PIC16F914 1602?: The display is very dim - all black - this program only requires a few minor configuration changes (at ADCON1 and ANSEL) to get the display to work on the 877A. #include#define uchar unsigned char #de...; 544852010 Microchip MCU

If you have developed 16C2550, please come in: I am currently developing products using the UART chip TL16C2550PFB (G4). When doing communication tests, I found that I can send data, but I cannot receive data. Hardware: 1. The CPU is Motorola's MC...; hyy754 Embedded System

JR45 replaces serial port: I want to use JR45 to replace the serial port. It means two boards, the communication between the boards is made into a serial port, and the wiring is connected with a network cable, but not connected...; xhwang2003 Embedded System

Information about several classic chips: Good stuff, give it a thumbs up...; springvirus MCU

ST official dry goods: How to solve the problem of jamming when transferring data via USB: [backcolor=royalblue][/backcolor] :loveliness: ST official recommended a batch of information. I guess these materials should be the solutions summarized by ST FAE for the problems encountered by rela...; nmg stm32/stm8
