IndustrialNet
™
Ethernet Enclosure
SPECIFICATION SHEET
specifications

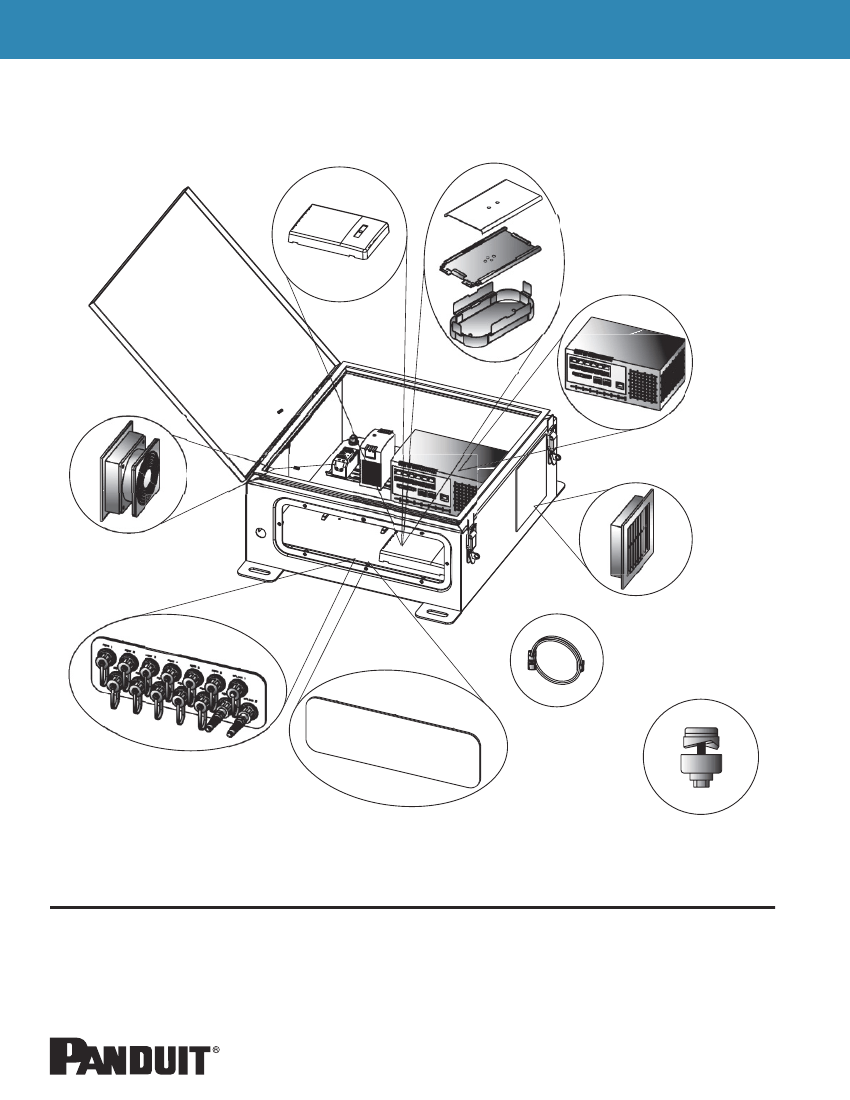

Active enclosure shall be rated IP66 and shall accommodate a micronode
or consolidation point in an Industrial Ethernet architecture/topology. It
shall be configured with a DIN rail for the attachment of an Industrial
Ethernet hardened switch. All components mounted within the enclosure
shall be secured to a vibration mitigation back plate for increased integrity
in a harsh environment. Included shall be a power supply/converter and
the necessary equipment for grounding, labeling, and cable management.
The enclosure shall be equipped with four mounting brackets and two
latches that shall accommodate lock-out/tag-out physical security
products. Optional equipment shall allow for fiber uplinks, copper patch
cords, and bulkhead jack fittings.
IndustrialNet
™
Ethernet Enclosure
Enclosure:
IAEIP66
Enclosure Equipment
Populated
gland plate:
Unpopulated
gland plate:
Bulkhead
assembly:
Fan kit:
Fiber Kits
Splice fiber
uplink kit:
SC coupler
fiber uplink kit:
Knockout tool:
Bulkhead jack
(UTP):
Bulkhead jack
(ScTP):
Plug (UTP):
Plug (ScTP):
Coupler:
IAEFKSP
IAEFKSC
IEKO30
IAECGP
IAEBGP
IAEPCBH
IAEFK54
technical information
Standards:
Dimensions:
Color and Material:
Temperature:
IEC 60529
18.5"H x 18.5"W x 8.29"D (470 x 470 x 210mm)
Gray, 14 gage galvannealed steel
Enclosure protects the active equipment to 60°C operating
temperatures; an optional fan kit is available should higher
temperatures and convectional cooling be required
IP66; when fan kit is used enclosure carries a rating of IP54
Equipped with welded flanges/brackets for convenient wall, beam mounting
Includes assembled base, door, welded flanges, mounted vibration
mitigation back plate, mounted 35mm DIN rail, 115/230V to 24V DC
power supply/converter, enclosure kit containing labels, Tak-Ty
®
Hook & Loop Cable Ties, grounding cable, and adhesive back mounts
(Used in high temperature conditions above 60°)
Rating:
Mounting:
Packaging:
IndustrialNet
™
TX5e
™
Connectors
CJI5E88T
CJSI5E88T
MPI588T
MPSI588T
IAEBHJC
key features and benefits
Flexibility
Allows the designer of the Industrial Ethernet topology
to locate hardened switches within the work zones or
to remote areas of a plant or campus facility
Vibration mitigation back plate further improves the integrity
of the network by reducing vibration on the critical
components, e.g., the switch
All copper or fiber bulkhead fittings are mounted into
standard NEMA 30.5mm knockouts
35mm DIN rail will accommodate any DIN rail mountable
hardened switch; populated 14 port gland plate is available for 12
port, two-port uplink switches; unpopulated gland plate is available
for fewer port-count switches
IndustrialNet
™
TX5e
™
Patch Cords
3':
5':
7':
10':
15':
20':
IUTPCH3
IUTPCH5
IUTPCH7
IUTPCH10
IUTPCH15
IUTPCH20
Integrity
Standard NEMA knockouts
Switch of choice
Consult factory for additional lengths and colors
applications
The IndustrialNet
™
Ethernet Enclosure is designed
to protect Industrial Ethernet hardened switches
in harsh environments. The enclosure is ideally
suited for work zone cells where the switch is
integrated into the automation equipment. The
enclosure allows for long runs (in the architecture) to
be accommodated by fiber. It can also be used in the
integration of Building Automation Systems into the
LAN. With IP ratings of IP66 or IP54, the enclosure
provides reliability and high performance, as an
integral component to the end-to-end solution for
Industrial Networks.
