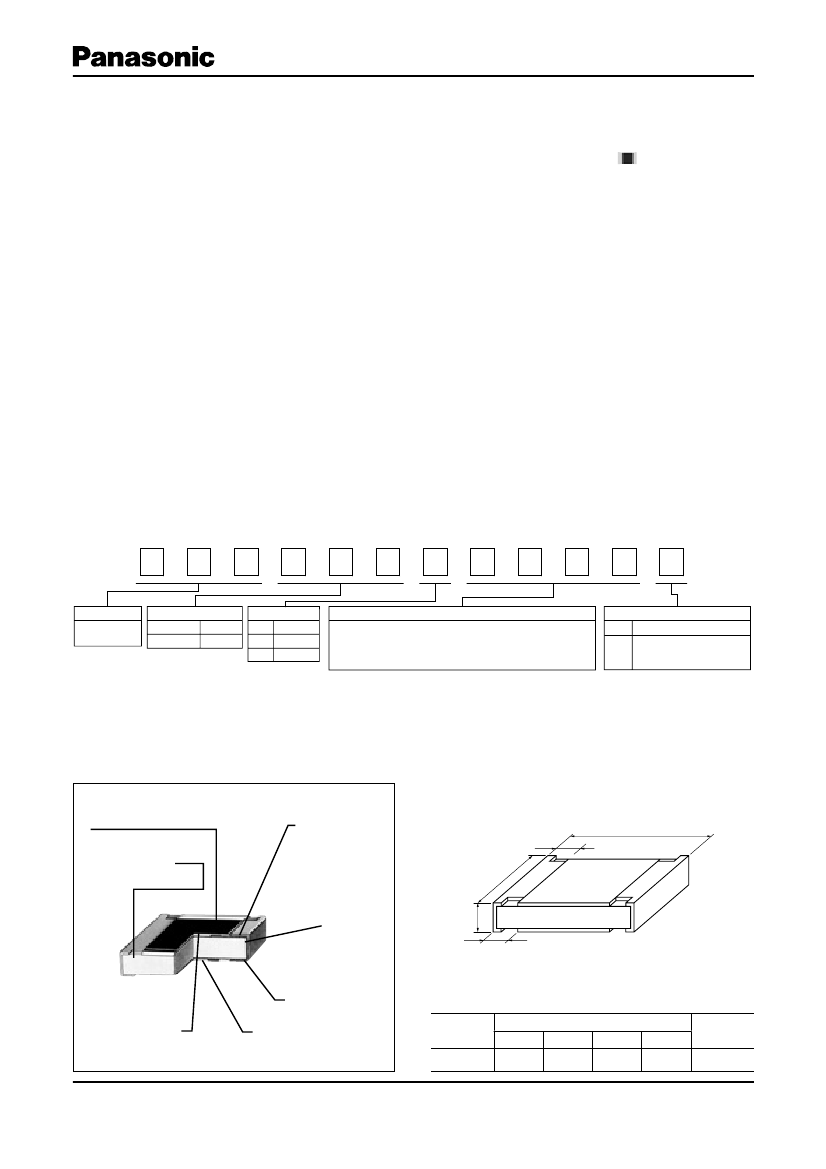

Anti-Surge Thick Film Chip Resistors (Double-sided resistive elements structure)
Anti-Surge Thick Film Chip Resistors
(Double-sided resistive elements structure)
0805
Type:
ERJ P6W
●
ESD surge characteristics superior to standard metal fi lm resistors
●
High reliability
Metal glaze thick fi lm resistive element and three layers of electrodes
●
Suitable for both refl ow and fl ow soldering
●
High power… 0.50 W : 2012(0805) size(ERJP6W)
●
High pulse characteristics…1.5 times higher than 0805 inch size Anti-Surge Thick Film Chip Resistors (ERJP06)
●
Reference Standards…IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
●
RoHS compliant
■
Features
■
Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions
Please see Data Files
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
Resistance Tolerance
Size, Power Rating
Product Code
Thick Film
Type: inch Power R. Code Tolerance
Chip Resistors P6W : 0805 0.50 W
F
±1%
J
±5%
Resistance Value
The first two or three digits are significant figures of resistance
and the third or 4th one denotes number of zeros following.
Three digit type (±5%), four digit type (±1%)
Example: 222 2.2 k , 1002 10 k
Packaging Methods
Code
V
Packaging
Punched Carrier Taping
4 mm pitch, 5,000 pcs.
■
Construction
Protective coating
■
Dimensions in mm (not to scale)
Electrode (Inner)
a
L
Alumina substrate
W
Electrode
(Between)
t
a
Electrode (Outer)
Thick film
resistive element
Bottom side element
Type
(inch size)
ERJP6W
(0805)
Dimensions (mm)
L
2.00
±0.20
W
1.25
±0.20
a
0.35
±0.20
t
0.65
±0.10
Mass (Weight)
[g/1000 pcs.]
6
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Feb. 2014
Anti-Surge Thick Film Chip Resistors (Double-sided resistive elements structure)
■
Ratings
Type
(inch size)
Power Rating
at 70 °C
(W)
(3)
Limiting
Element
(1)
Voltage
(V)
150
Maximum
Overload
(2)
Voltage
(V)
200
Resistance
Tolerance
(%)
±1
Resistance
Range
(Ω)
10 to 1 M
(E24, E96)
1 to 1 M
(E24)
T.C.R.
(×10
–6
/°C)
±200
R < 10
Ω
:
–100 to +600
10
Ω
<
R
:
±200
Category
Temperature
Range (°C)
ERJP6W
(0805)
0.50
–55 to +155
±5
(1) Rated Continuous Working Voltage (RCWV) shall be determined from RCWV=
√
Power Rating
×
Resistance Values, or Limiting Element Voltage
listed above, whichever less.
(2) Overload (Short-time Overload) Test Voltage (SOTV) shall be determined from SOTV=2.5
×
Power Rating or max. Overload Voltage listed above whichever less.
(3) Use it on the condition that the case temperature is below 155 °C.
Rated Load (%)
Power Derating Curve
For resistors operated in ambient temperatures above
70 °C, power rating shall be derated in accordance
with the figure on the right.
–55 °C
100
80
60
40
20
0
–60 –40 –20
70 °C
155 °C
0 20 40 60 80 100 120 140 160 180
Ambient Temperature (°C)
■
ESD Characteristic
R=0 ( 1.5 k )/150 (> 1.5 k )
±3.0kV
C=150pF
Sample
Anti-Surge Thick Film Chip Resistors(ERJP6W Type)
Thick Film Chip Resistors(ERJ6G Type)
5%
0%
-5%
-10%
-15%
-20%
-25%
-30%
10
100
1k
10k
100k
1M
■
Limiting Power Curve
●
In rush pulse Characteristic
Pulse duration :
t
Pp
Limiting
Power
0
Test cycle : 1 cycles
Spec
: Resistance value = within ±1%
Anti-Surge Thick Film Chip Resistors(ERJP6W Type)
Anti-Surge Thick Film Chip Resistors(ERJP06 Type)
Limiting Power : Pp (W)
100
10
1
1
10
100
Pulse duration
t
(msec)
1000
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Feb. 2014
