CM6594-105 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CM6594-105

CM6594-105: DescriptionCommon Mode Chokes / Filters 1000uH 25% 1.19ohm 4Wind ER Core SMT; CategoryPassive components inductor; File Size1MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/

Download Datasheet Parametric View All

CM6594-105 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CM6594-105	-	-	View	Buy Now

CM6594-105 Overview

Common Mode Chokes / Filters 1000uH 25% 1.19ohm 4Wind ER Core SMT

CM6594-105 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	API Delevan
package instruction	4741
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	4741
structure	Rectangular
core material	FERRITE
DC Resistance	1.19 Ω
Nominal inductance(L)	1000 µH
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	4
Number of terminals	8
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Package height	5.97 mm
Package length	11.81 mm
Package form	SMT
Package width	10.29 mm
method of packing	BULK; TR, 13 INCH
Maximum rated current	0.3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL IN-LINE
Terminal shape	GULL WING
Tolerance	25%

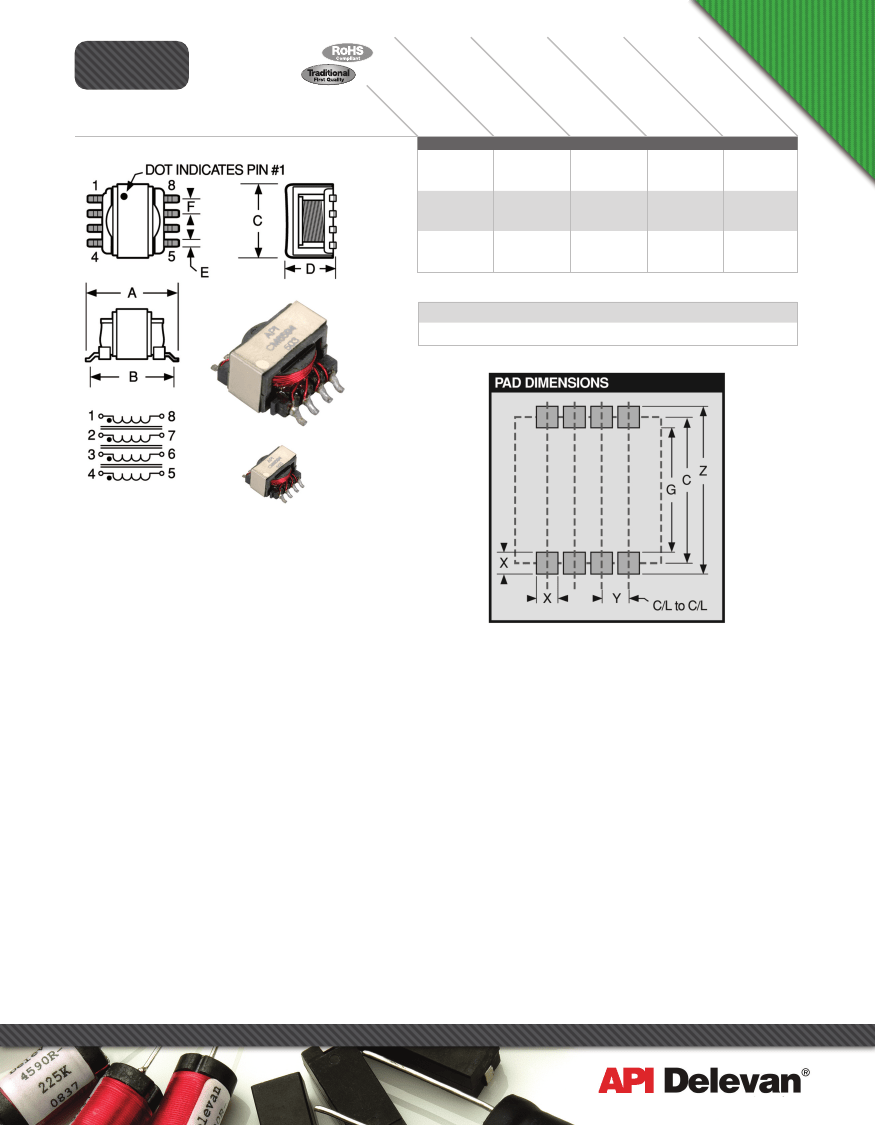

Preview

Download Datasheet

View All

XI NG

MA NDI

NG I

TI H W

RA C

T EA

EN )

RR M

CU (A

XI NG

MA NDI

CE WI

AN H

ST AC

SI ) E

RE MS

DC H

AK )**

LE µH

M E(

MU NC

XI TA

MA C

EA H)

CE (µ

AN 5%

CT ±2

DU G

IN DIN

SERIES

CM6594R

CM6594

4-Winding

Surface Mount Transformers

-253

-503

-104

-154

-254

-504

-754

-105

-155

SERIES CM6594 FERRITE CORE

0.90

0.04

1.10

0.07

100

1.30

0.13

150

1.50

0.19

250

1.70

0.32

500

4.30

0.56

750

6.80

0.90

1000

6.95

1.19

1500

7.00

1.90

1.00

0.90

0.75

0.60

0.50

0.45

0.38

0.30

0.25

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

Actual Size

Physical Parameters

Inches

0.435 to 0.465

0.385 to 0.405

0.375 to 0.405

0.205 to 0.235

E (8 places)

F (6 places)

Millimeters

11.05 to 11.81

9.78 to 10.29

9.53 to 10.29

5.21 to 5.97

0.028 Typ.

0.079 Typ.

0.71 Typ.

2.00 Typ.

Mechanical Conﬁguration

ER Core on an 8 Pin Surface Mount Base

Operating Temperature Range

–20°C to +80°C

Maximum Power Dissipation at 25°C

0.140 W

Dielectric Withstanding Voltage

500V RMS, 60Hz, 5 sec.

Current Rating

Current which will cause less than

a +35°C temperature rise maximum, from +25°C Ambient,

with all windings connected in series

Notes ** 1)

Max. leakage inductance measured

@ 1 kHz on Pin 1-8 with all other pins shorted.

Board

connections may be altered to create different

transformer/inductor conﬁgurations.

Pad Dimensions

Inches

0.425

0.368

0.063

0.079

0.492

Millimeters

10.80

9.35

1.60

2.00

12.50

Marking

API; CM6594, dash number. Note: An R after CM6594 indicates

a RoHS component. A dot indicates the location of pin 1.

Example: CM6594-503

API

CM6594

503

Packaging

Tape & reel (24mm): 13" reel, 600 pieces max.

7" reel not available

Bulk option available

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

4/2017
