SPB Preprinted Books
ScotchCode
Data Sheet
Application:
™
Preprinted Books (SPB)
Tape Technical Data:
(All Values are Typical Values)
Material
Vinyl impregnated cloth
film with natural rubber
adhesive
40°F to 100°F
( 4°C to 38°C)
32°F to 150°F
( 0°C to 66°C)
70°F (21°C)
( 50% )
10.0 mils (0,25mm)
20–30 oz./inch width
(219–328 Newtons/meters)
8–14 oz./inch width
( 88–153 Newtons/meter)
42 lbs./inch width
( 7350 Newtons/meter )
Use the SPB book markers to mark electrical wires and
terminal strips, maximum wire dia. of 0.47 inches (11,9
mm). Individual character markers are perferated in the
center to reduce thickness on smaller gauge wires and
include a single character marker for the terminal strip.
Also use SPB book markers to mark load centers and
alarm systems.
Engineering Specification:
The markers shall be bound in a bifold book. The marker
will be made of a vinyl impregnated cloth with a top coat
and a natural rubber adhesive. The alphanumeric
characters are printed with a black ink on a white
background. The marker will be 1.37 inches (34,8 mm) by
0.22 inches (5,6 mm) with a 0.22 inch (5,6 mm) by 0.22
inch (5,6 mm) terminal marker.
Part No.
SPB–01
SPB–02
SPB–03
SPB–04
SPB–05
SPB–06
SPB–07
SPB–08
SPB–09
SPB–11
SPB–12
SPB–13
Legend
45 ea 0–9; 15 ea L1,L2,L3,T1,T2,T3
10 ea A–Z, 0–15, +, –, /
10 ea 1–45
150 ea 1,2,3
150 ea A,B,C
150 ea T1,T2,T3
150 ea L1,L2,L3
6 ea 1–15; 4 ea 16–90; 2 ea A–Z, +, –,
/, 0
45 ea 1,2,3,A,B,C; 30ea
L1,L2,L3,T1,T2,T3
15 ea 1–30
15 ea A–Z; 8 ea + ; 7 ea – ; 21 ea
Blank write–on markers
45 ea +, –, AC, DC; 33 ea POS, NEG,
GND; 27 ea NEUT, SPARE; 21 ea
blank write–on markers
10 ea 46–90
9 ea of 30 Alarm System Legends; 5 ea
1–15; 2 ea 16–45; 21 ea blank write–on
markers
5 ea of 68 Load Center Legends; 110 ea
blank write on markers
Application Temperature
Range
Operating Temperature
Range
Storage Temperature
(Relative Humidity)
Tape Thickness
Adhesion to Steel
(ASTM D–1000)
Adhesion to Backing
( at 23°C)
Tensile Strength
SPB–14
SPB–15AS1
SPB–16LC1

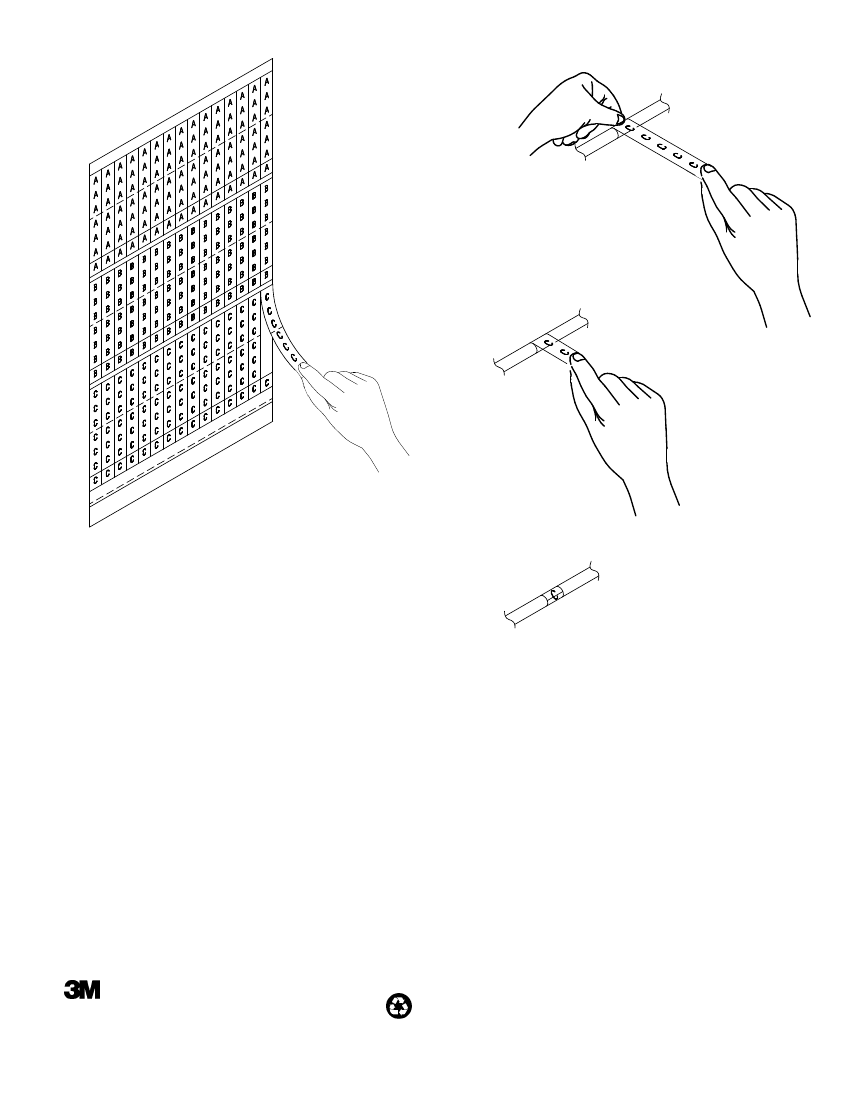

2. Postion marker on the wire.
3. Wrap marker around
the wire.
1. Remove desired marker from book.
4. You are now ready to place
another marker on your wire.
Important Notice to Purchaser:
All statements, technical information and recommendations related
to the Seller's products are based on information believed to be
reliable, but the accuracy or completeness thereof is not
guaranteed. Before utilizing the product, the user should
determine the suitability of the product for its intended use. The
user assumes all risks and liability whatsoever in connection with
such use.
Any statements or recommendations of the Seller which are not
contained in the Seller's current publications shall have no force or
effect unless contained in an agreement signed by an authorized
officer of the Seller. The statements contained herein are made in
lieu of all warranties expressed or implied, including but not
limited to the implied warranties of merchantability and fitness for
a particular purpose which warranties are hereby expressly
disclaimed.
SELLER SHALL NOT BE LIABLE TO THE USER OR ANY OTHER
PERSON UNDER ANY LEGAL THEORY, INCLUDING BUT NOT
LIMITED TO NEGLIGENCE OR STRICT LIABILITY, FOR ANY
INJURY OR FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES
SUSTAINED OR INCURRED BY REASON OF THE USE OF ANY
OF THE SELLER'S PRODUCTS THAT WERE DEFECTIVE.
Electrical Products Division
6801 River Place Blvd.
Austin, TX 78726-9000
Printed on 50% recycled
waste paper, including 10%
post-consumer waste paper.
Litho in USA.
3–11–94
©
3M 1993
