TX6A
™
10Gig
™
UTP Patch Cords
with MaTriX Technology
specifications
Category 6A/Class E
A
, UTP patch cords shall be constructed of
24 AWG stranded copper cable with an enhanced performance
modular plug on each end. Copper conductors in patch cable shall
be twisted in pairs and separated by a quadrant separator. All four
pairs shall be surrounded by matrix tape and a flame retardant
jacket. The patent pending matrix tape shall suppress alien crosstalk
and allow 10 Gb/s transmission. Patch cord cable shall be offered
in multiple colors and lengths for design flexibility with a strain relief
boot on each modular plug. All patch cords shall be compatible with
both T568A and T568B wiring schemes.
SPECIFICATION SHEET
TX6A
™
10Gig
™
UTP Copper Cabling
System with MaTriX Technology
TX6A
™
10Gig
™
UTP Patch Cords
with MaTriX Technology
Foot lengths:
Meter lengths:
UTP6A*BU
UTP6A**MBU
Mini-Com
®
TX6A
™
10Gig
™
UTP
Jack Module with MaTriX Split
Foil Technology
Jack module:
Shuttered
jack module:
™
™
technical information
Category 6A/Class E
A
channel performance:
Certified channel performance in a 4-connector configuration up to 100 meters and
exceeds the requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class E
A
standards for supporting 10GBASE-T transmission over twisted-pair cabling systems
as part of the Panduit
®
TX6A
™
10Gig
™
UTP Copper Cabling System
Guaranteed performance beyond the standard when a complete end-to-end TX6A
™
10Gig
™
UTP Copper Cabling System is installed by a Panduit certified installer
0.275 in. (7.0mm) nominal
Meets ANSI/TIA-1096-A requirements; contacts plated with
50 microinches of gold for superior performance
Compliant
Meets IEC 60603-7
Rated for 2500 cycles with IEEE 802.3af / 802.3at and proposed 802.3bt type 3
and type 4
UL 1863 approved
CM
CJ6X88TG***
CJD6X88TG***
TX6A
10Gig UTP Copper Cable
with MaTriX Technology
(100 meter solution)
Plenum:
Riser:
LSZH (60332-1):
LSZH (60332-3):
CM:
PUP6A04^-UG
PUR6A04^-UG
PUL6A04^-CEG
PUZ6A04^-EG
PUC6A04^-EG
Headroom warranty:
Cable diameter:
FCC and ANSI
compliance:
RoHS compliance:
IEC compliance:
PoE compliance:
UL rated:
Flammability rating:
TX6A
™
10Gig
™
UTP Copper Cable
with MaTriX Technology
(70 meter solution)
Plenum:
Riser:
LSZH (60332-1):
LSZH (60332-3):
CM:
24-port, 1 RU:
48-port, 2 RU:
72-port, 2 RU:
24-port,
48-port,
48-port,
72-port,
1
1
2
2
RU:
RU:
RU:
RU:
PUP6ASD04^-UG
PUR6SDA04^-CG
PUL6ASD04^-EG
PUZ6ASD04^-EG
PUC6ASD04^-EG
CPPA24FMWBLY
CPPA48FMWBLY
CPPLA72WBLY
CPP24FMWBLY
CPP48HDWBLY
CPP48FMWBLY
CPP72FMWBLY
key features and benefits
Interoperable
MaTriX Technology
Compatible with components of the TX6A-SD
™
10Gig
™
UTP Copper Cabling
System with MaTriX Technology (70 meter solution) for increased design flexibility
Provides superior suppression of both PSANEXT and PSAACR-F; improves
the installation flexibility by allowing cable combing in existing pathways
without compromising performance
Confidence that each patch cord delivers specified performance
Mini-Com
®
Angled Modular Patch Panels
Mini-Com
®
Flat Modular Patch Panels
100% performance tested
Superior headroom warranty
Provides the highest margins above the industry standard for both electrical and
alien crosstalk performance

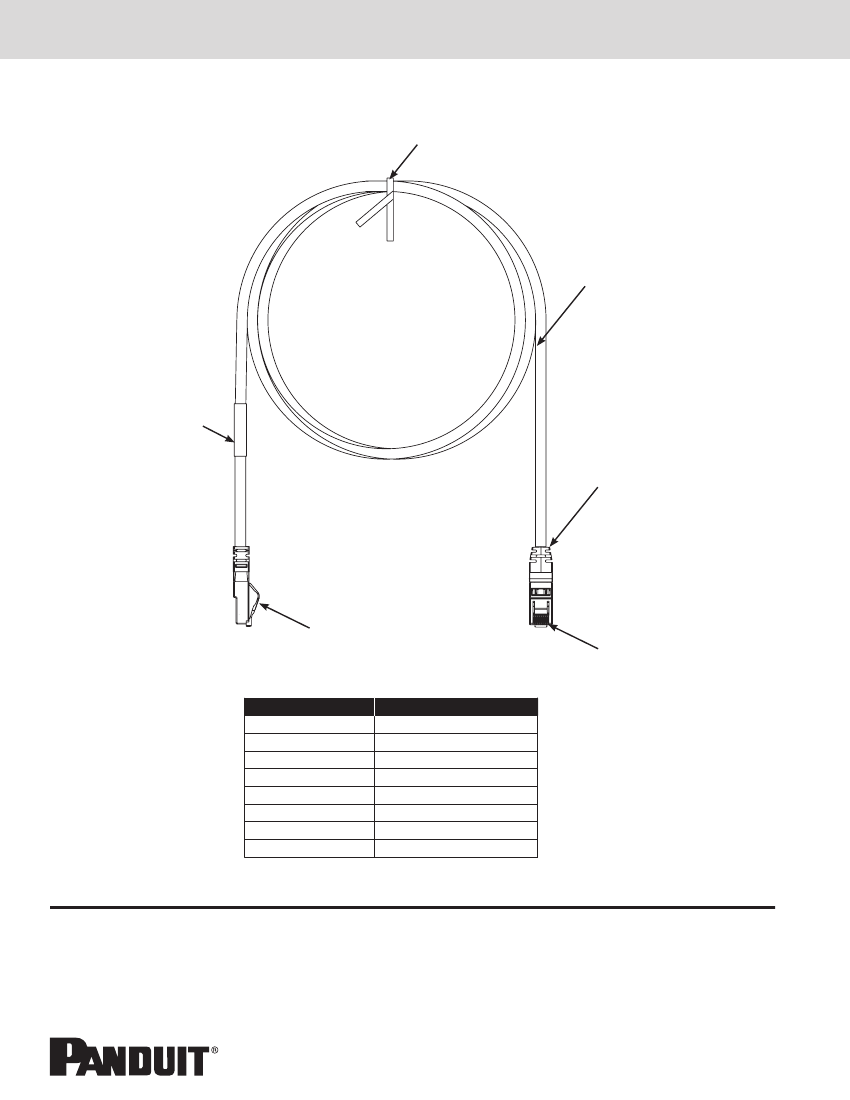

Flexible cable design
Center de-embedded plug
Integral pair manager
Patented tangle-free latch
Slender strain relief boot
Robust construction
Identification
Variety of cable colors
and lengths
Key version available
Improved cable management in high density applications enabling
easier installations
Performs in center of ANSI/TIA-568-C.2 component range ensuring
interoperability and superior performance
Optimizes performance, consistency, and reliability by reducing untwist at plug
Prevents snags and provides easy release, saving time and providing reliability
on frequent moves, adds, and changes
Provides easy access in high-density applications
Rated to 2500 mating cycles
Provides identification of performance level, length, and quality control
number for future traceability
Meets individual length and color-coding requirements for greater
system flexibility
Color-specific keys with positive and negative keying features mechanically
and visually distinguish connections to prevent unintentional insertion into
unlike keyed or non-keyed ports, offering network design flexibility, versatility,
and accommodating discrete networks for enhanced security
Snap onto cable, allowing additional color-coding options
Secures plug into jack to prevent unauthorized removal of patch cord
For additional modular patch panels reference
www.panduit.com
Tools and Accessories
Patch cord
removal tool:
Flashlight kit:
Patch cord
color band:
Standard RJ45 plug
lock-in device:
Recessed RJ45 plug
lock-in device:
PCRT1
KPCRT1-FL
PCBAND^^-Q
PSL-DCPLX^^^
PSLDCPLRX^^^
Color bands (optional)
RJ45 plug lock-in device
(optional)
applications
The TX6A
™
10Gig
™
UTP Patch Cords with MaTriX Technology are a component of the TX6A
™
10Gig
™
UTP
Copper Cabling System. Interoperable and backward compatible, this end-to-end system provides design flexibility
to protect network investments well into the future. Key applications include:
• 10GBASE-T Ethernet
• Consolidation of network interconnects
• Data center I/O consolidation
• Back-bone aggregation
• Data center server virtualization
• Parallel processing and high speed computing
w w w .pan duit.co m
*For lengths 3 to 20 feet (increments of one foot) 20,
25, 30, 35, or 40 feet change the length designation
in part number to the desired length. For standard
cable colors other than Off White, add suffix
BL (Black), BU (Blue), GR (Green), RD (Red),
YL (Yellow), OR (Orange), or VL (Violet) at the end
of the part number. For example, the part number
for a blue 15 foot patch cord is UTP6A15BU.
**For lengths 1 to 10 meters (increments of one
meter) 1.5, 2.5, 15, or 20 meters, change the length
designation in part number to the desired length. For
standard cable colors other than Off White, add suffix
BL (Black), BU (Blue), GR (Green), RD (Red),
YL (Yellow), OR (Orange), or VL (Violet) after the
M in the part number. For example, the part number
for a blue 15 meter patch cord is UTP6A15MBU.
***To designate color, add suffix IW (Off White),
EI (Electric Ivory), WH (White), AW (Arctic White), IG
(International Gray), OR (Orange), RD (Red), BU (Blue),
GR (Green), YL (Yellow), or VL (Violet).
^To designate color, add suffix BU (Blue), WH (White),
YL (Yellow), or IG (International Gray).
1
Substitute PUR6A04^-CG for alternative
manufacturing location.
^^To designate color, add suffix WH (White),
EI (Electric Ivory), IG (International Gray), BL (Black),
BU (Blue), RD (Red), YL (Yellow), GR (Green),
OR (Orange), or VL (Violet) before – Q in part
number. 25/package.
^^^For colors other than Red, add -BL (Black),
-BU (Blue), -GR (Green), -YL (Yellow), -OR (Orange),
-IW (International White), or -IG (International Gray)
to the end of the part number. 10/package. Add -C
for bulk packages of 100.
Contact customer service for keyed patch cords, bulk
packaged jack modules, and patch cords.
