NRH3012T220MN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> NRH3012T220MN

NRH3012T220MN: DescriptionFixed Inductors 3012 22uH 756mOhms +/-20%Tol 500mA; CategoryPassive components inductor; File Size825KB，23 Pages; ManufacturerTaiyo Yuden; Environmental Compliance

Download Datasheet Parametric View All

NRH3012T220MN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NRH3012T220MN	-	-	View	Buy Now

NRH3012T220MN Overview

Fixed Inductors 3012 22uH 756mOhms +/-20%Tol 500mA

NRH3012T220MN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	1212
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	1212
structure	Chip
core material	FERRITE
DC Resistance	0.756 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	120 °C
Minimum operating temperature	-25 °C
Package height	1.2 mm
Package length	3 mm
Package form	SMT
Package width	3 mm
method of packing	TR
Maximum rated current	0.5 A
self resonant frequency	22 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

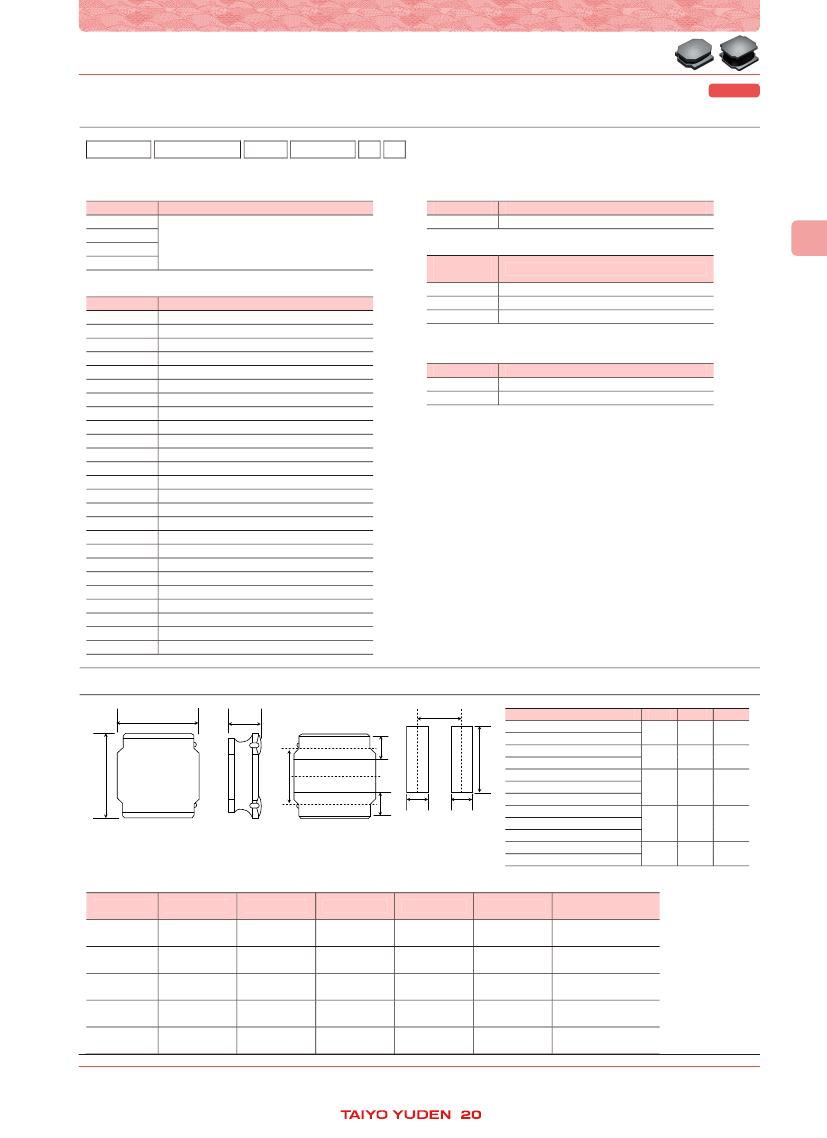

Preview

Download Datasheet

View All

Notice for TAIYO YUDEN Products

Please read this notice before using the TAIYO YUDEN products.

[ For General Electronic Equipment

(General Environment) ]

REMINDERS

■

Product information in this catalog is as of October 2017. All of the contents speciﬁed herein are subject to change

without notice due to technical improvements, etc. Therefore, please check for the latest information carefully

before practical application or use of our products.

Please note that TAIYO YUDEN shall not be in any way responsible for any damages and defects in products or

equipment incorporating our products, which are caused under the conditions other than those speciﬁed in this

catalog or individual product speciﬁcation sheets.

■

Please contact TAIYO YUDEN for further details of product speciﬁcations as the individual product speciﬁcation

sheets are available.

■

Please conduct validation and verification of our products in actual condition of mounting and operating

environment before using our products.

■

The products listed in this catalog are intended for use in general electronic equipment (e.g., AV equipment, OA

equipment, home electric appliances, office equipment, information and communication equipment including,

without limitation, mobile phone, and PC) and medical equipment classiﬁed as Class I or II by IMDRF. Please be

sure to contact TAIYO YUDEN for further information before using the products for any equipment which may

directly cause loss of human life or bodily injury (e.g., transportation equipment including, without limitation,

automotive powertrain control system, train control system, and ship control system, traffic signal equipment,

disaster prevention equipment, medical equipment classified as Class III by IMDRF, highly public information

network equipment including, without limitation, telephone exchange, and base station).

Please do not incorporate our products into any equipment requiring high levels of safety and/or reliability (e.g.,

aerospace equipment, aviation equipment*, medical equipment classiﬁed as Class IV by IMDRF, nuclear control

equipment, undersea equipment, military equipment).

*Note: There is a possibility that our products can be used only for aviation equipment that does not directly affect the safe operation of aircraft (e.g.,

in-ﬂight entertainment, cabin light, electric seat, cooking equipment) if such use meets requirements speciﬁed separately by TAIYO YUDEN.

Please be sure to contact TAIYO YUDEN for further information before using our products for such aviation equipment.

When our products are used even for high safety and/or reliability-required devices or circuits of general electronic

equipment, it is strongly recommended to perform a thorough safety evaluation prior to use of our products and to

install a protection circuit as necessary.

Please note that unless you obtain prior written consent of TAIYO YUDEN, TAIYO YUDEN shall not be in any way

responsible for any damages incurred by you or third parties arising from use of the products listed in this catalog

for any equipment requiring inquiry to TAIYO YUDEN or prohibited for use by TAIYO YUDEN as described above.

■

Information contained in this catalog is intended to convey examples of typical performances and/or applications

of our products and is not intended to make any warranty with respect to the intellectual property rights or any

other related rights of TAIYO YUDEN or any third parties nor grant any license under such rights.

■

Please note that the scope of warranty for our products is limited to the delivered our products themselves and

TAIYO YUDEN shall not be in any way responsible for any damages resulting from a fault or defect in our products.

Notwithstanding the foregoing, if there is a written agreement (e.g., supply and purchase agreement, quality

assurance agreement) signed by TAIYO YUDEN and your company, TAIYO YUDEN will warrant our products in

accordance with such agreement.

■

The contents of this catalog are applicable to our products which are purchased from our sales offices or

authorized distributors (hereinafter

“TAIYO

YUDEN’ofﬁcial sales channel” Please note that the contents of this

catalog are not applicable to our products purchased from any seller other than TAIYO YUDEN’official sales

channel.

■

Caution for Export

Some of our products listed in this catalog may require speciﬁc procedures for export according to

“U.S.

Export

Administration Regulations”

“Foreign

Exchange and Foreign Trade Control Law”of Japan, and other applicable

regulations. Should you have any questions on this matter, please contact our sales staff.
