53J5R0E datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> 53J5R0E

Preview

53J5R0E: DescriptionWirewound Resistors - Through Hole 3W 5 Ohm 5%; CategoryPassive components; File Size466KB，2 Pages; ManufacturerOhmite; Websitehttps://www.ohmite.com; Environmental Compliance

Download Datasheet Parametric View All

53J5R0E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53J5R0E	-	-	View	Buy Now

53J5R0E Overview

Wirewound Resistors - Through Hole 3W 5 Ohm 5%

53J5R0E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Ohmite
Product Category	Wirewound Resistors - Through Hole
RoHS	Details
Resistance	5 Ohms
Power Rating	3 W
Tolerance	5 %
Temperature Coefficient	50 PPM / C
Voltage Rating	150 V
Operating Temperature Range	-
Diameter	5.6 mm
Length	14 mm
Width	-
Height	-
Termination Style	Axial
Packaging	Bulk
Product	Power Resistors Wirewound Silicone Coated
Technology	Wirewound
Type	Economical Silicone Coated Wirewound Low Cost Silicone Coated Axial
Mounting Style	PCB Mount
Lead Diameter	0.8 mm
Lead Spacing	-
Factory Pack Quantity	25

Preview

Download Datasheet

View All

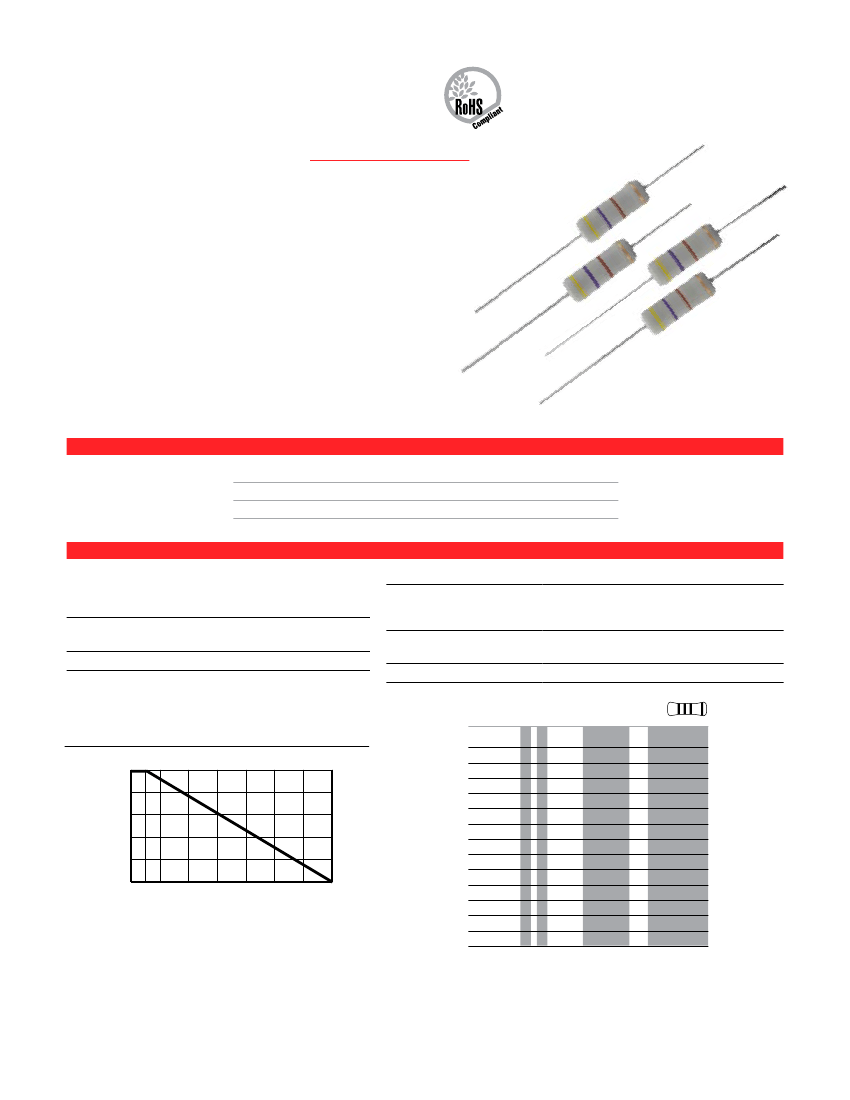

50 Series

Automated winding, in-line color

banding, and testing allow for an

economically priced, industrial

grade wirewound power resistor.

These resistors feature an all

welded construction with a high

purity alumina ceramic core and

high quality RoHS grade tinned

copper wire instead of copper

weld which produces better

thermal characteristics. The 50

series accompanies Ohmite's

wide range of axial leaded prod-

ucts.

Economical Silicone Coated Wirewound

F e at u r e S

• Rugged construction

• Optimized for Medium

to High volume pro-

duction

• Custom resistance

values can also be

produced on request.

S e r i e S S p e c i F i c at i o n S

Series

53J

55J

Power at 25°C

3W

5W

Resistance Limiting Element Voltage

0R1 to 10K

150

0R1 to 20K

200

characteriSticS

Temp. Coefficient

±90 ppm/°C for below 1.0 Ω

of Resistance

±50 for 1.0 Ω to 99 Ω

±30 for 100 Ω and above

Short Term

53J

Overload

55J

5X for 5 seconds

10X for 5 seconds

Test Condition

Short term overload

5X Rated power for 5 sec-

onds (3W); 10X Rated power

for 5 seconds (5W)

Load life at rated power

1000 hours (1.5 Hrs ON, 0.5

Hrs OFF cycle)

Robustness of termination

As per BS-CECC 40201-002

Maximum ∆R

<2% + 0R05

<5% + 0R05

<1% + 0R05

Leads

Tin Coated Copper

Derating

100

% Rated Power

80

60

40

20

0

0 25 50 100 150 200 250 300 350

Ambient Temperature,

°C

Key to four-band code

Band 1

Color

Brown

Black

0

2

0

x

3

Multiplier

x

10Ω

1Ω

±

4

Digit

1

123 4

Tolerance

1%

(F)

Blue

Green

Yellow

Orange

Red

Violet

Grey

Gold

White

6

7

8

5

4

3

2

6

7

8

9

5

4

3

2

x

100KΩ

10KΩ

1KΩ

100Ω

±

4%

3%

2%

(G)

9

Silver

x

0.01Ω

0.1Ω

±

10%

5%

(K)

(J)

6

1-866-9-OHMITE • Int’l 1-847-258-0300 • Fax 1-847-574-7522 • www.ohmite.com • info@ohmite.com
