D01-9970442: DescriptionIC & Component Sockets 4 WAY SIL VERT SKT; CategoryThe connector socket; File Size577KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

D01-9970442 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D01-9970442	-	-	View	Buy Now

D01-9970442 Overview

IC & Component Sockets 4 WAY SIL VERT SKT

D01-9970442 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: UL 94V-0
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	SIP4
Shell material	BRASS
JESD-609 code	e4
Number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

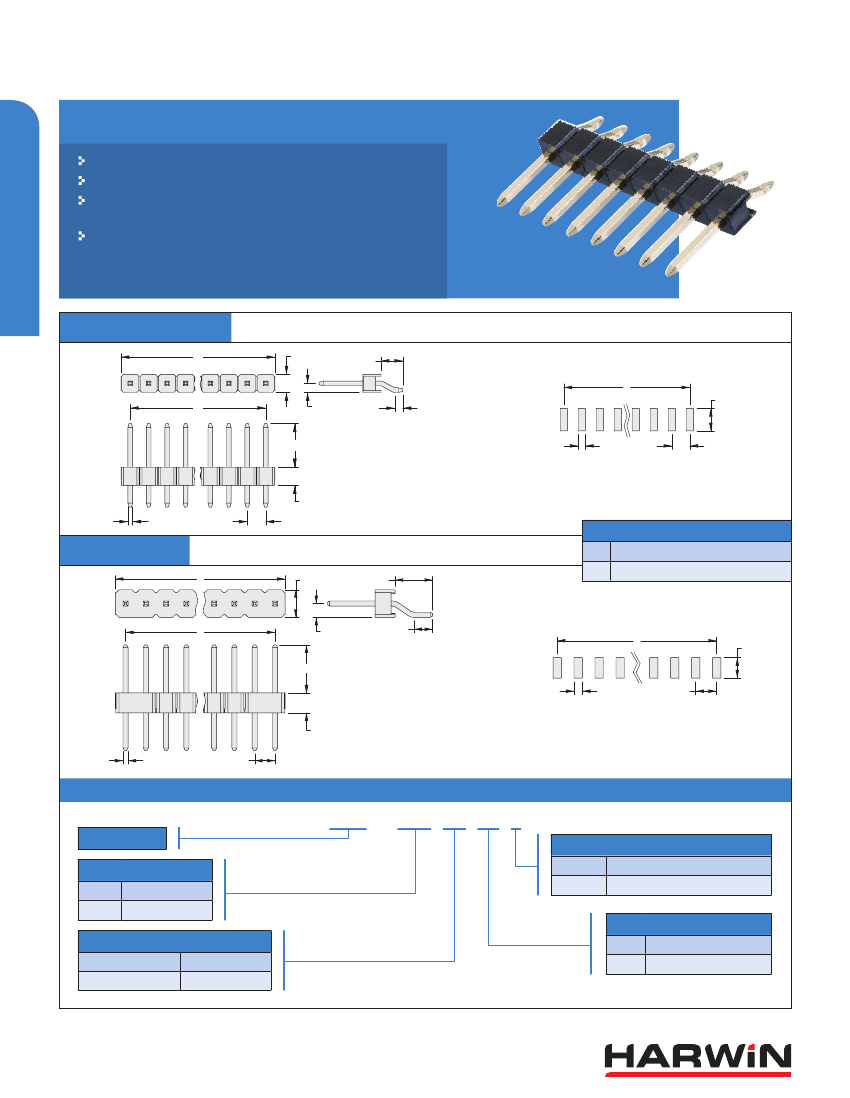

M20 Connectors

Male Horizontal Surface Mount Single Row

Pin headers can be cut into smaller sizes.

Contact

technical@harwin.com

for Tape and Reel options.

Suitable for use with female connectors and jumper sockets

shown on previous pages.

Horizontal orientation for 90°C board-to-board applications.

2.54mm (.100") PITCH

STANDARD PROFILE

A

2.50

3.00

B

1.25

1.27

3.17

6.00

1.02

2.54

2.50

0.64 square

2.54

Recommended PC Board Pattern

CALCULATION

A

2.54 x No. of contacts per row

2.54 x (No. of contacts per row - 1)

HIGH PROFILE

A

3.46

4.70

B

6.00

1.73

1.80

B

2.50

1.00

2.54

2.50

0.64 square

2.54

Recommended PC Board Pattern

HOW TO ORDER

SERIES CODE

TYPE

889

890

Standard Profile

High Profile

M20 - 8XX XX 05 X

PACKAGING

Blank

R

Loose

Tape & Reeled (Standard Profile)

FINISH

05

45

Gold (High Profile)

Gold (Standard Profile)

Standard Profile

High Profile

NO. OF CONTACTS PER ROW

02 to 06, 08, 10

03 to 20

All dimensions in mm.

www.harwin.com
