Sensor/Actuator cable - SAC-5P-M12Y/2X 2,0-PUR PE BK - 1401330
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sensor/Actuator cable, 5-position, Plug straight M12, on free cable end, Cable length: 2 m
Key Commercial Data
Packing unit
Minimum order quantity
GTIN
GTIN
Custom tariff number
Note
4046356549462
85444290
Made to Order (non-returnable)
1 STK
50 STK
Technical data
Dimensions
Length of cable
2m
General
Number of positions
Insertion/withdrawal cycles
5
≥ 100
Cable
Cable type
Cable type (abbreviation)
Cable abbreviation
UL AWM style
Conductor cross section
AWG signal line
Conductor structure signal line
Core diameter including insulation
Thickness, insulation
Wire colors
Overall twist
External sheath, color
Outer sheath thickness
External cable diameter D
PUR halogen-free black
PUR
Li9Y11Y
20549 / 10493 (80°C/300 V)
5x 0.34 mm² (Signal line)
22
42x 0.10 mm
1.27 mm ±0.02 mm (Signal line)
≥ 0.21 mm
brown, white, blue, black, green-yellow
5 wires around filler to the core
black-gray RAL 7021
approx. 0.7 mm
5 mm ±0.15 mm
11/13/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1401330
Sensor/Actuator cable - SAC-5P-M12Y/2X 2,0-PUR PE BK - 1401330
Technical data
Cable
Smallest bending radius, fixed installation
Smallest bending radius, movable installation
Number of bending cycles
Bending radius
Traversing path
Traversing rate
Acceleration
Cable weight
Outer sheath, material
Material conductor insulation
Conductor material
Insulation resistance
Conductor resistance
Nominal voltage, cable
Test voltage, cable
Special properties
25 mm
50 mm
4000000
50 mm
10 m
3 m/s
10 m/s²
35 kg/km
PUR
PP
Bare Cu litz wires
≥ 16 GΩ*km (at 20 °C)
max. 58 Ω/km (at 20 °C)
300 V
3000 V
Flexible cable conduit capable
Silicone-free
Free of substances which would hinder coating with paint or varnish
Flexible
Flame resistance
Halogen-free
Resistance to oil
Other resistance
in accordance with DIN UL-Style 20549
in accordance with DIN VDE 0472 part 815
in accordance with DIN EN 60811-2-1
Highly resistant to acids, alkaline solutions and solvents
hydrolysis and microbe resistant
Resistant to salt water
partly UV-resistant in accordance with DIN EN ISO 4892-2-A
Ambient temperature (operation)
-40 °C ... 80 °C (cable, fixed installation)
-25 °C ... 80 °C (cable, flexible installation)

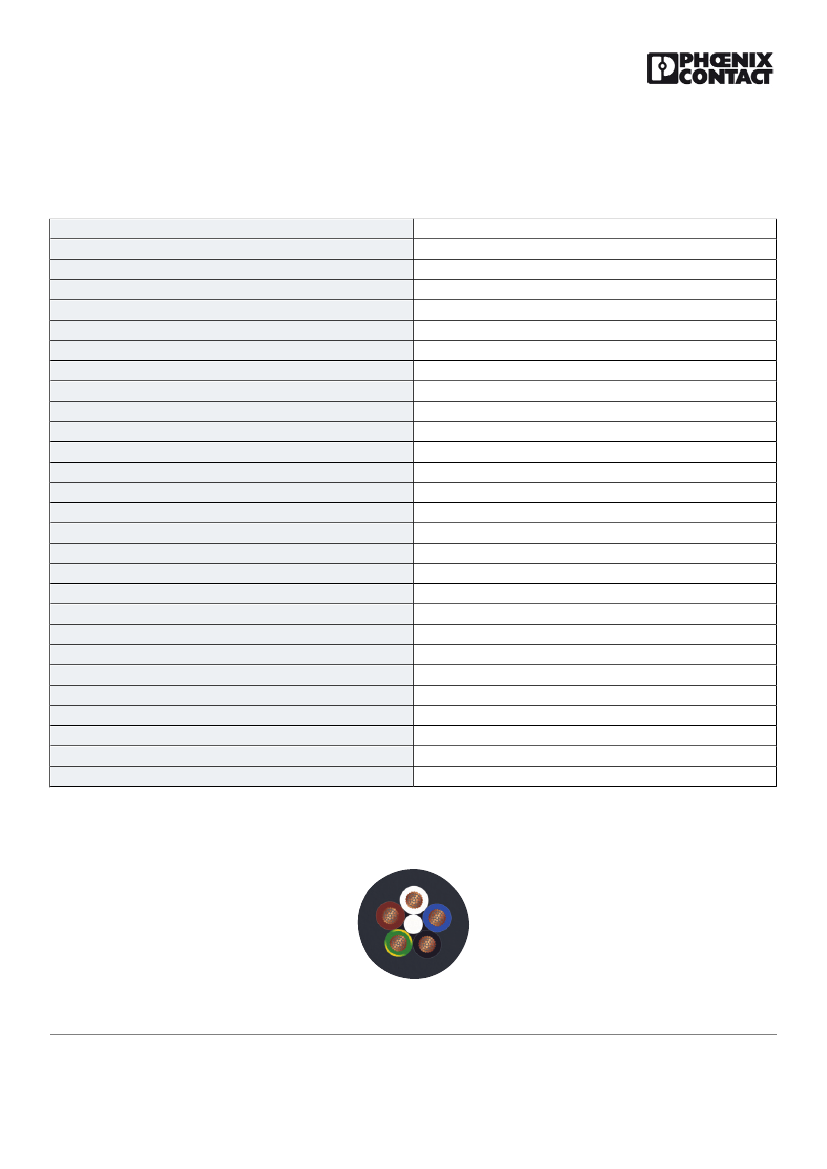

Drawings
Cable cross section
PUR halogen-free black [PUR]
11/13/2016 Page 2 / 3
