https://www.phoenixcontact.com/us/products/2288998
Cable - FLK 40/EZ-DR/ 100/KONFEK - 2288998
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

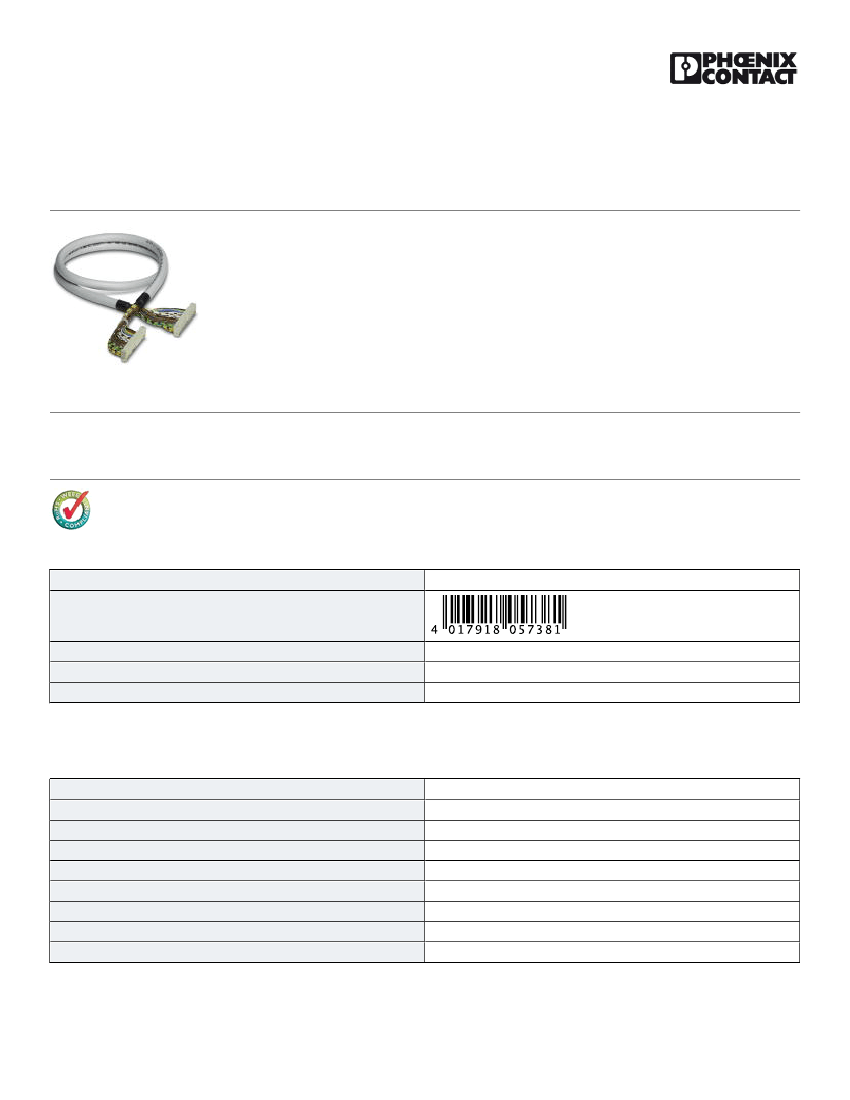

Round cable sets, with two 40-pos. socket strips (1:1 connection), also for use with Siemens SIMATIC® S5-95U
and 100U (32 x digital IN/OUT), cable length: 1 m
The illustration shows a 50-pos.
version
Product Features
■
Unshielded
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
151.4 g
85444290
Germany
1 pc
Technical data
General
Nominal voltage U
N
Max. current carrying capacity per path
Max. conductor resistance
Length of cable
Single wire, cross section
Single wire, cross section [AWG]
Conductor construction: Number of litz wires:
Single wire, material
< 50 V AC
60 V DC
1A
0.16 Ω/m
1m
0.14 mm²
26
7
Cu tin-plated
04/26/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/2288998
Cable - FLK 40/EZ-DR/ 100/KONFEK - 2288998
Technical data
General
External diameter
Cable, preassembly
Shielding
Outer sheath, material
External sheath, color
9.9 mm
Insulation displacement, IEC 60352-4/DIN EN 60352-4
no
PVC
gray RAL 7035
Environmental conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Flame resistance
Resistance to oil
Gasoline resistance
-20 °C ... 50 °C
-20 °C ... 70 °C
IEC 60332-1
DIN VDE 0482 Part 332-1
DIN VDE 0472 Part 803, test type B
Against occasional splashes
Connector, module side
Connection name
Connection method
Number of connections
Number of positions
Pitch
Field level
IDC/FLK socket strip
1
40
2.54 mm
Connector, controller side
Connection name
Connection method
Number of connections
Number of positions
Pitch
Controller level
IDC/FLK socket strip
1
40
2.54 mm
Supported controller
Controller
SIEMENS S5-95U/ET100U S5-100U/ET200U
Standards and Regulations
Resistance to oil
Connection in acc. with standard
Flame resistance
DIN VDE 0472 Part 803, test type B
CUL
IEC 60332-1
DIN VDE 0482 Part 332-1
04/26/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/2288998
Cable - FLK 40/EZ-DR/ 100/KONFEK - 2288998
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27060306
27060306
27061801
27061801
27061801
27061801
27249205
27242220
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000237
EC000237
EC000237
EC000237
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
26121620
26121620
26121620
26121620
26121620
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
04/26/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/2288998
Cable - FLK 40/EZ-DR/ 100/KONFEK - 2288998
Approvals
UL Recognized
cUL Recognized
EAC
cULus Recognized
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/26/2016 Page 4 / 4
